EXHIBIT 96.1








image_0c.jpgTechnical Report Summary
on the Hibbing Taconite Property,
Minnesota, USA
S-K 1300 Report
Cleveland-Cliffs Inc.
SLR Project No: 138.02467.00001
February 7, 2022
Effective Date: December 31, 2021



Technical Report Summary on the Hibbing Taconite Property, Minnesota, USA
SLR Project No: 138.02467.00001

Prepared by
SLR International Corporation
22118 20th Ave SE, Suite G202
Bothell, WA 98021 USA
for

Cleveland-Cliffs Inc.
200 Public Square, Suite 3300
Cleveland, OH 44114


Effective Date – December 31, 2021
Signature Date - February 7, 2022



FINAL

Distribution:    1 copy – Cleveland-Cliffs Inc.
        1 copy – SLR International Corporation




CONTENTS
5
16
16
16
18
6.2    Local Geology
36
6.3    Property Geology
39
6.4    Mineralization
44
6.5    Deposit Types
44
7.2    Hydrogeology and Geotechnical Data
51
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    i



8.3    Conclusions
78
8.4    Recommendations
79
11.3    Geological Interpretation
91
11.4    Resource Assays
95
11.5    Compositing and Capping
96
11.6    Variography
98
11.7    Block Models
99
11.8    Cut-off Grade
102
11.9    Classification
102
11.10    Block Model Validation
105
11.11    Model Reconciliation
112
11.12    Mineral Resource Statement
113
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    ii



 139
 140
15.6    Natural Gas
150
15.7    Diesel, Gasoline, and Propane
150
15.8    Water Supply
152
15.9    Communications
152
15.10    Mine Support Facilities
152
15.11    Plant Support Facilities
152
               Local Individuals or Groups
 158
 158
 160
 162
 162
 164
 164
 164
 166
 166
 167
 169
 170
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    iii



 171
 172
 172
 172
 173
 173
 174
 175
 175
 175
 175
 175
 175
 176


Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    iv



TABLES
6
7
10
11
15
Table 6-1:    Relative Thickness of the Four Members of the Biwabik Iron Formation
43
Table 6-2:    Relative Thicknesses and Magnetic Iron Content of Subunits of the Lower
                             Cherty Member of the Biwabik Iron Formation
44
Table 7-2:    Core vs. RC Drilling Summary
50
Table 11-2:    Modeled Stratigraphic Units
91
Table 11-3:    Stratigraphic Codes for Block Model and Composites
93
Table 11-4:    Drilling Statistics
95
Table 11-5:    HibTac Capping Limits for Key Economic Variables
97
Table 11-6:    Block Model Parameters
99
Table 11-7:    Assignment of Ore Types and Metallurgical Cut-off Grades
101
Table 11-8:    Comparative Statistics of Composites and Blocks for Key Economic Variables
107
Table 11-9:    2019 to 2020 Model Reconciliation
113
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    v



Table 11-10:    Summary of Mineral Resource - December 31, 2021
114
130
 139
 140
 156
 157
 161
 164
 165
 165
 166
 167
 167
 168
 169


Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    vi



FIGURES

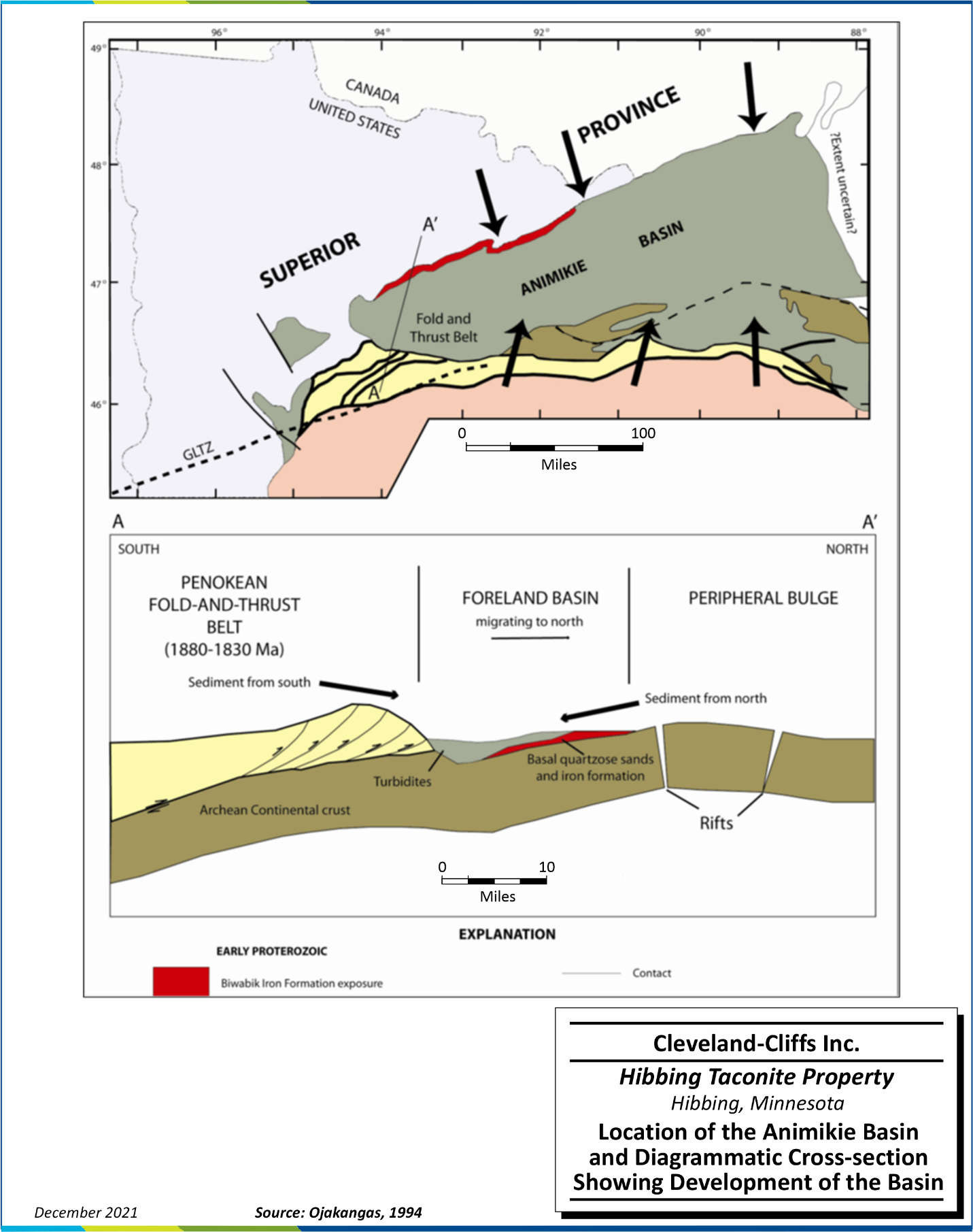

                             Development of the Basin

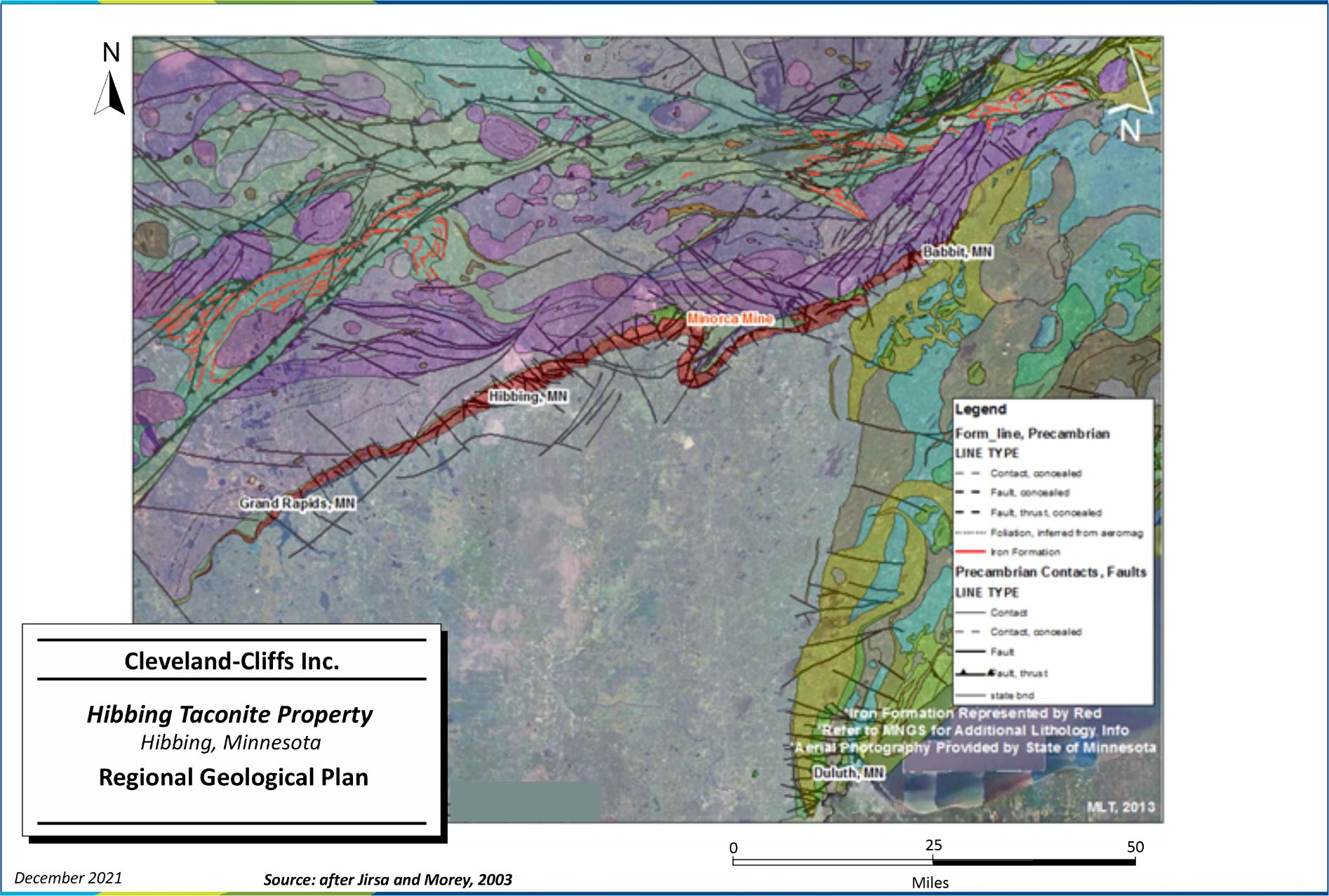

Figure 6-2:    Regional Geological Plan
35

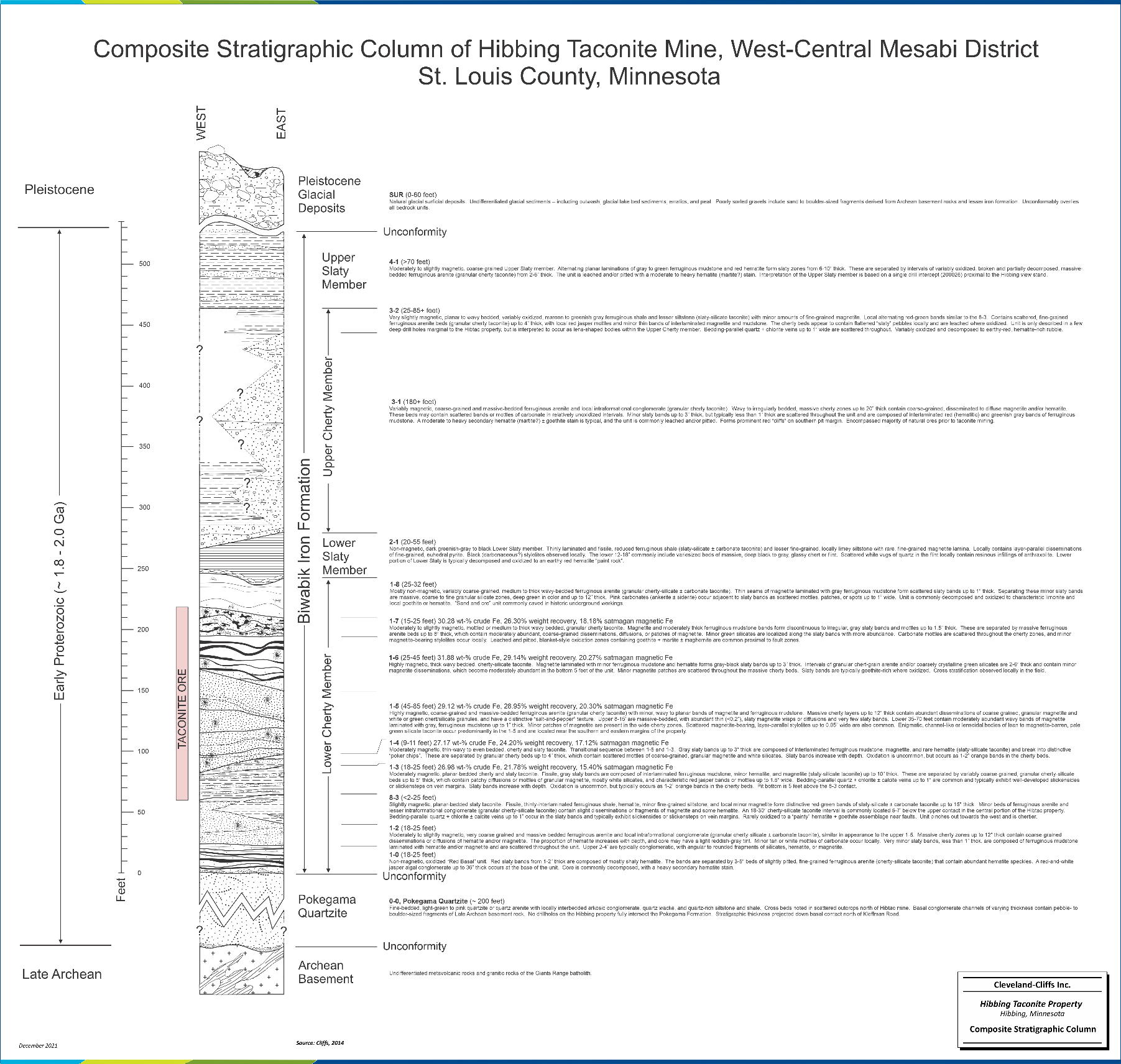

Figure 6-3:    Stratigraphic Column for the Hibbing Taconite Deposit
37

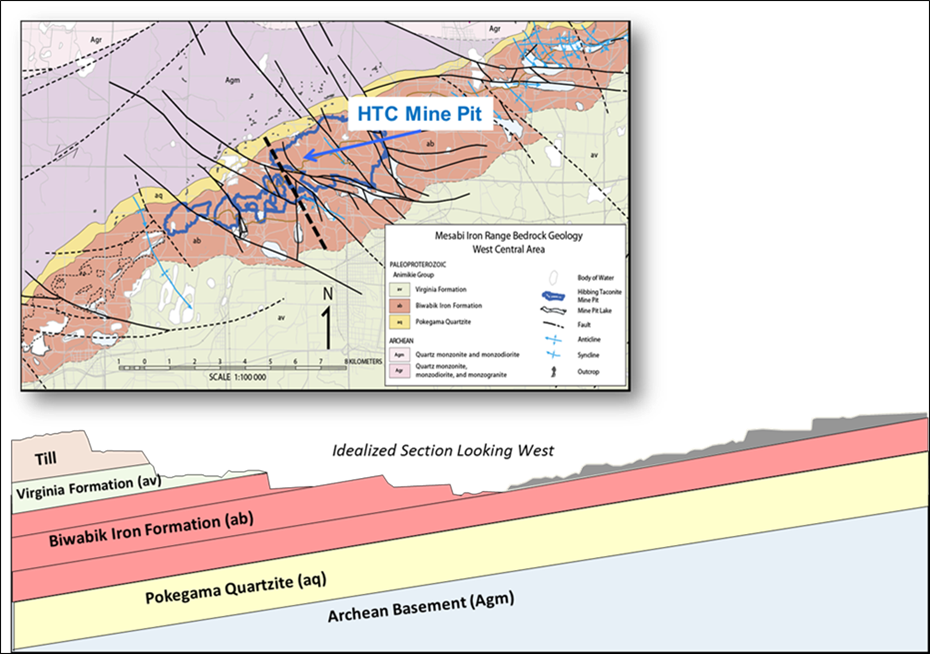

Figure 6-4:    Property Geology and Generalized Cross-section for the Hibbing Taconite
                             Deposit
38

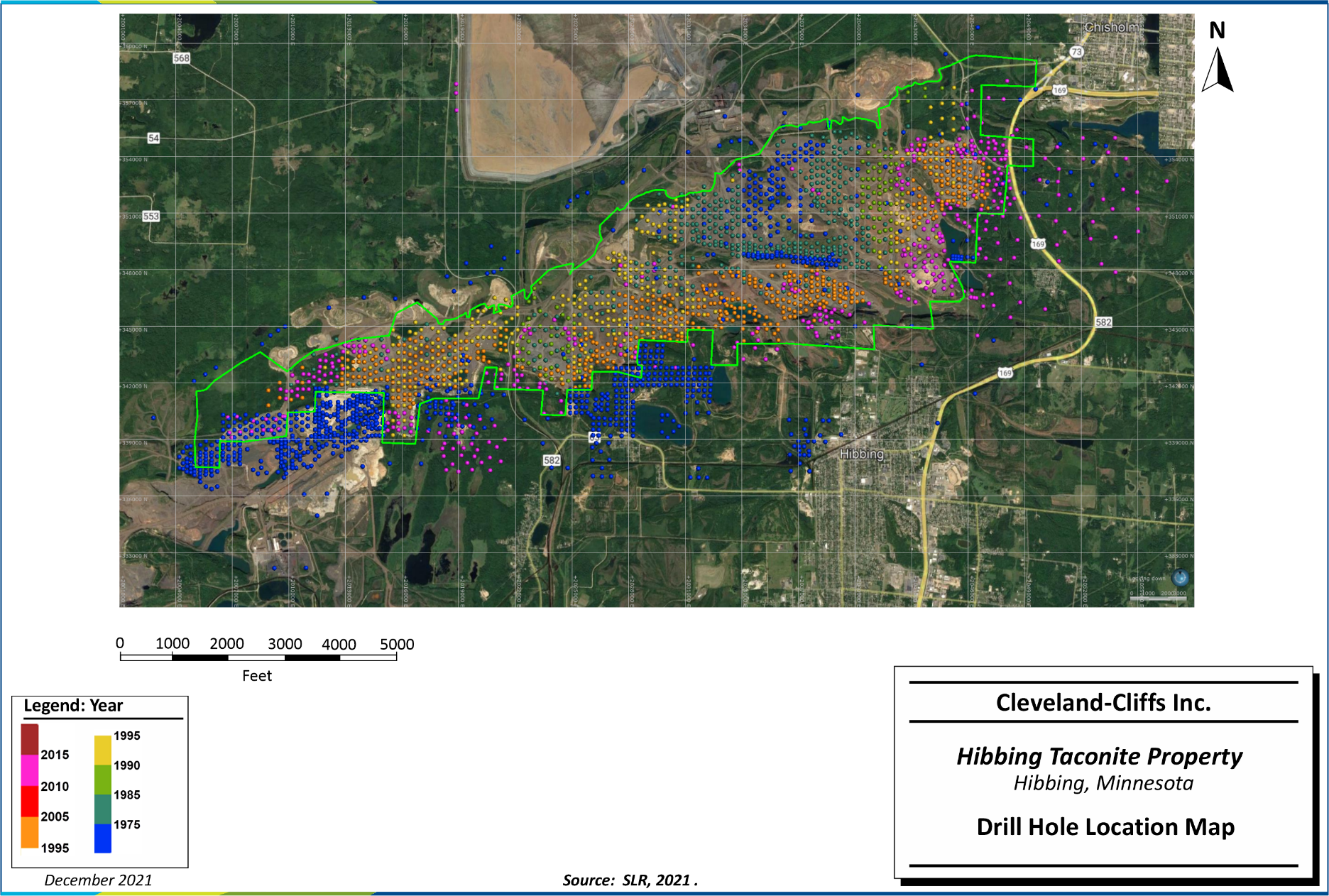

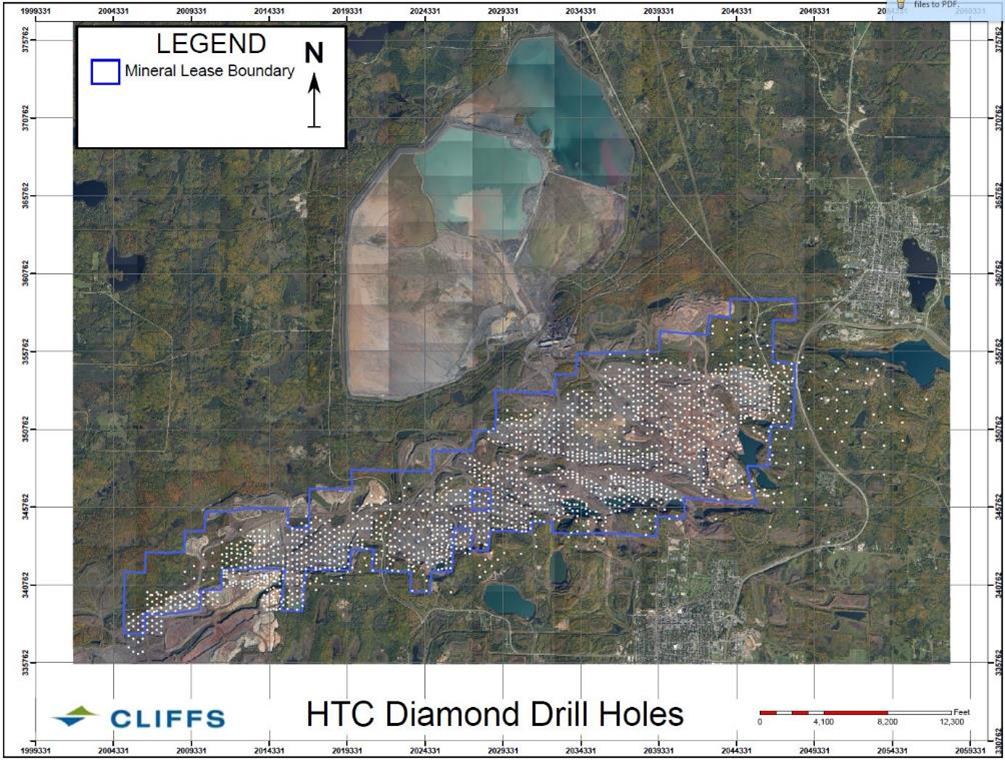

Figure 7-1:    Drill Hole Location Map
48
                             -20M

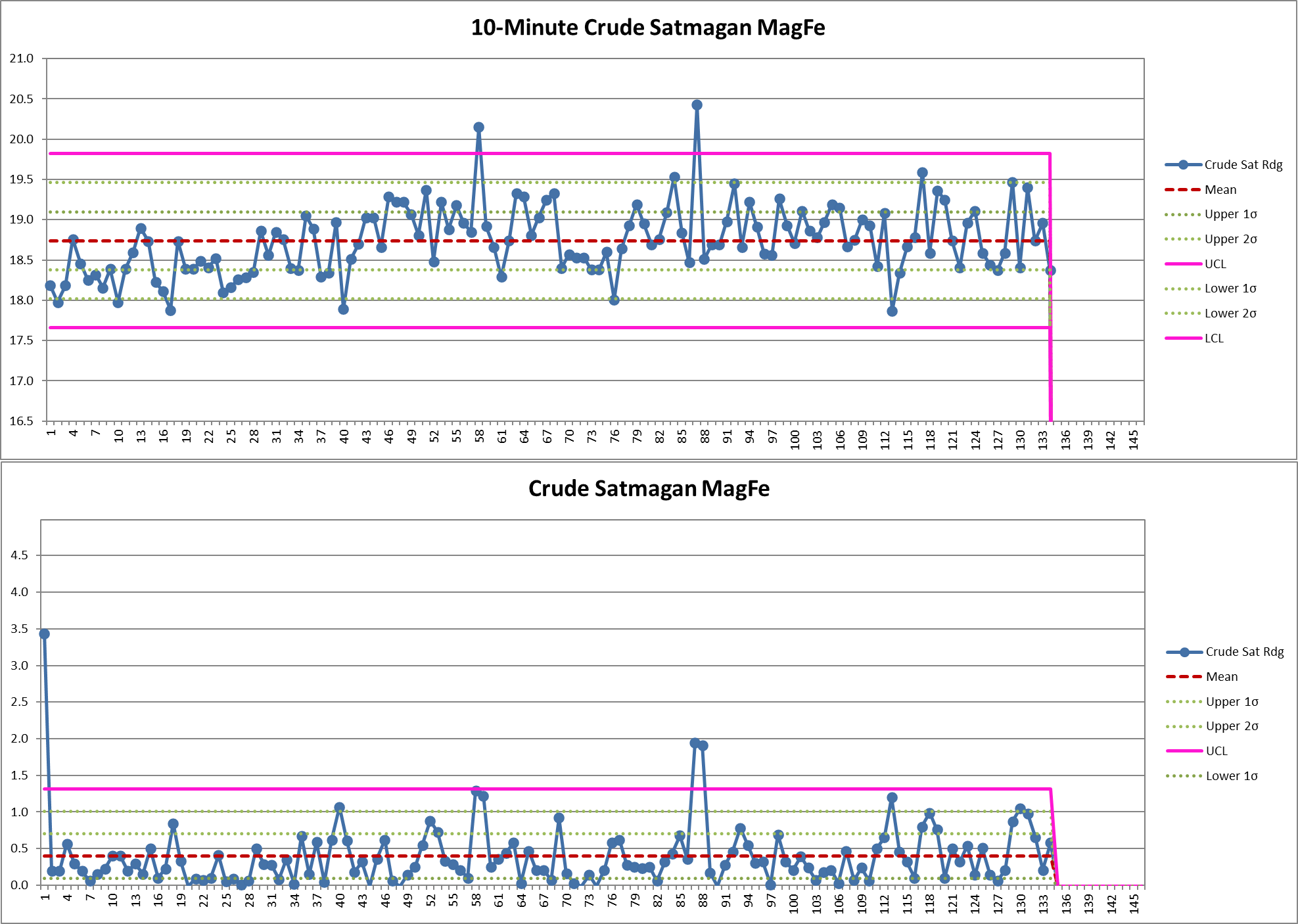

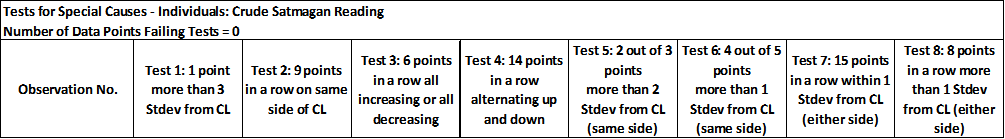

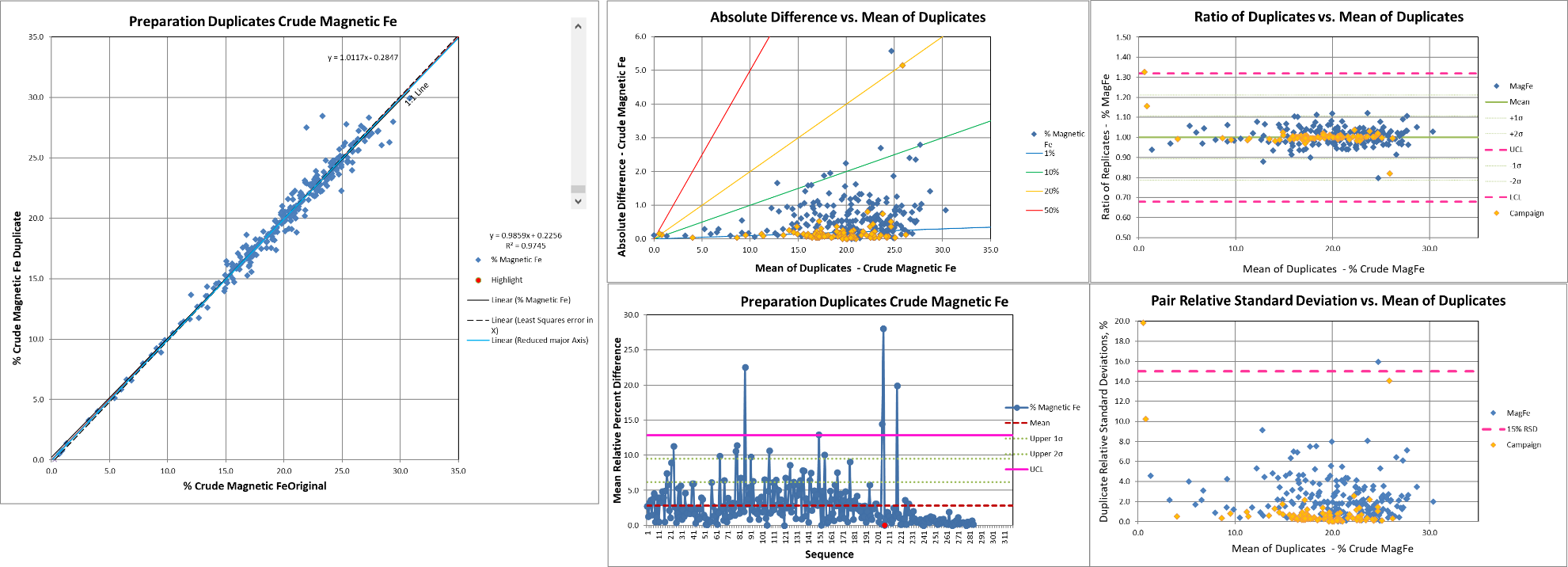

Figure 8-11:    Crude Satmagan Magnetic Fe Preparation Duplicates
72

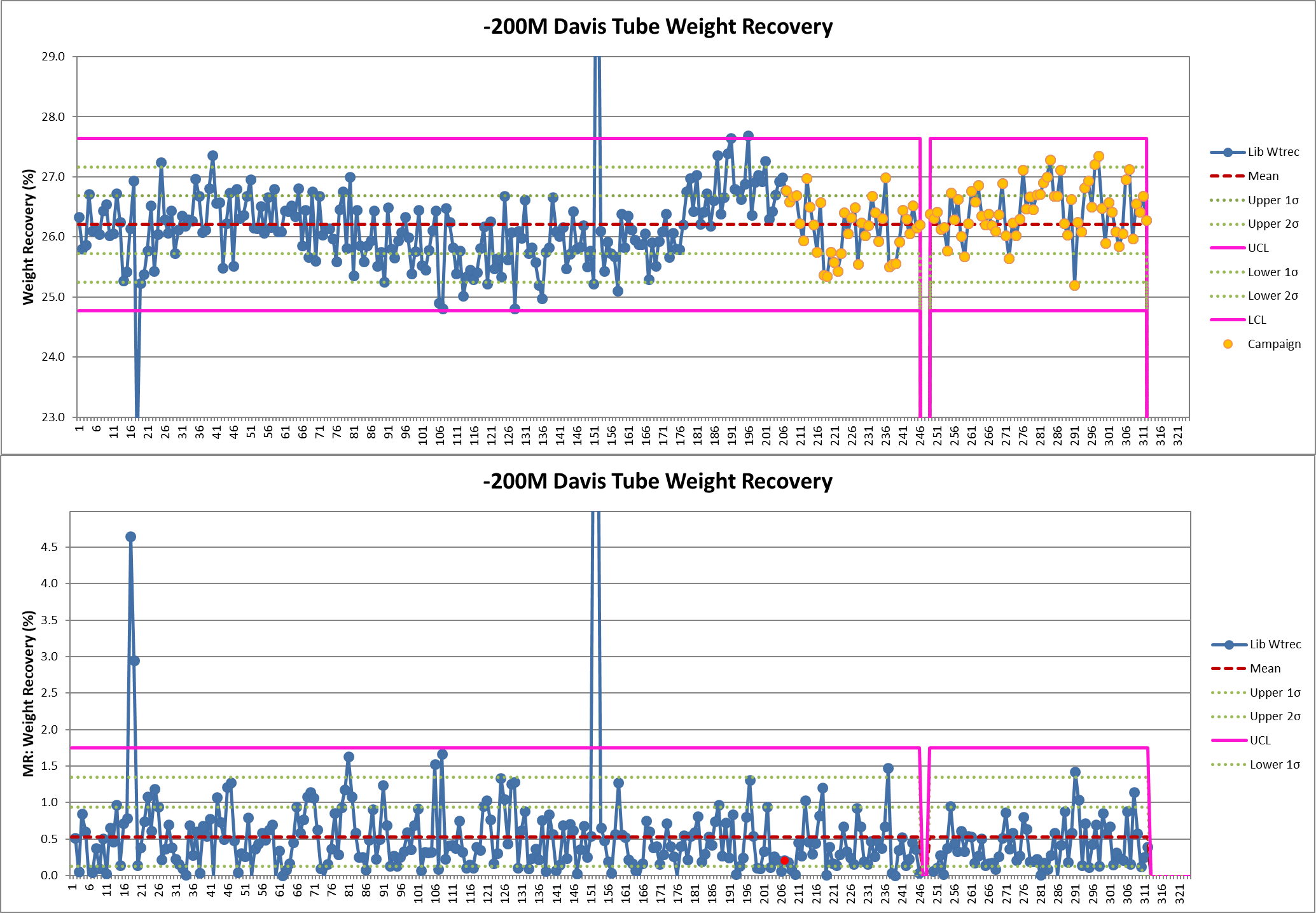

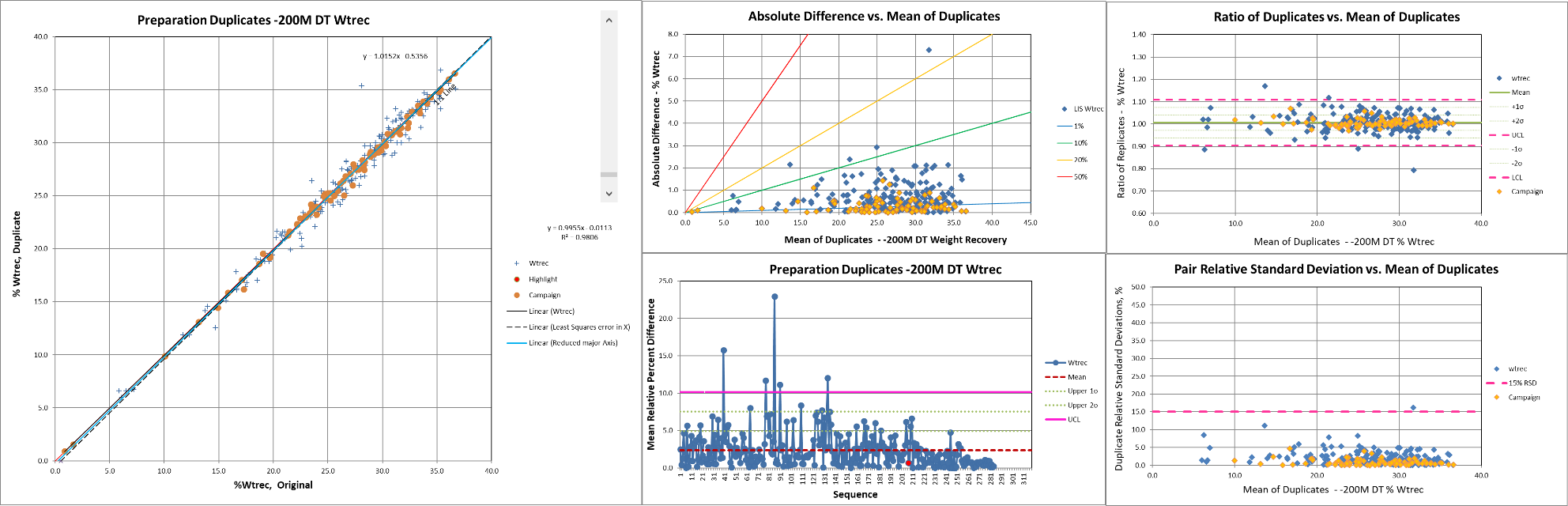

Figure 8-12:    Modeled -200 Mesh Davis Tube Weight Recovery Preparation Duplicates
73
Figure 8-13:    Modeled -200 mesh Davis Tube Silica Preparation Duplicates
74

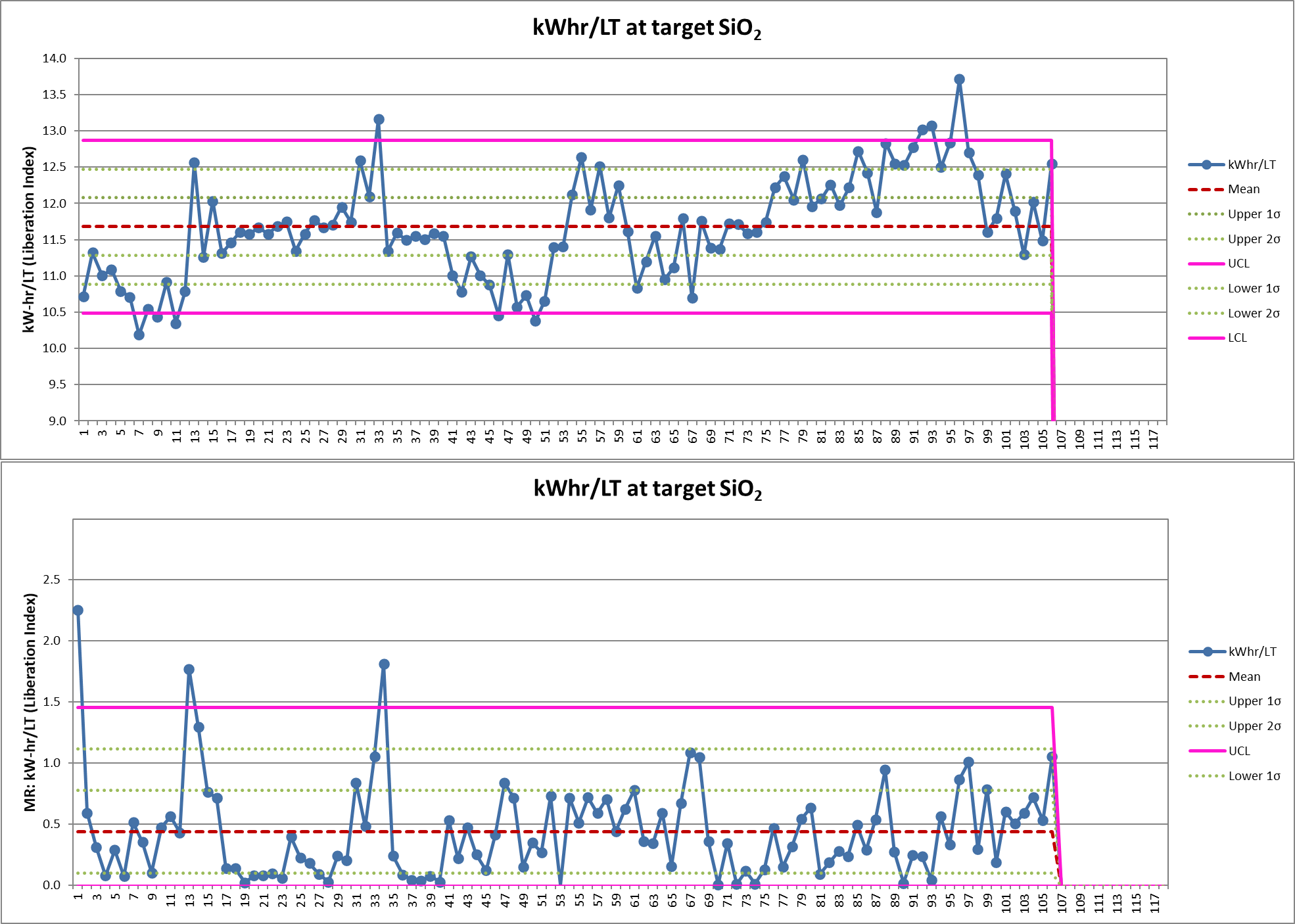

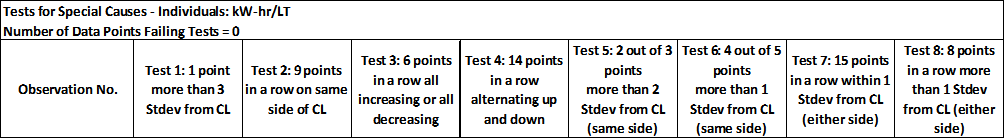

Figure 8-14:    kWh/LT (Liberation Index) Preparation Duplicates
75

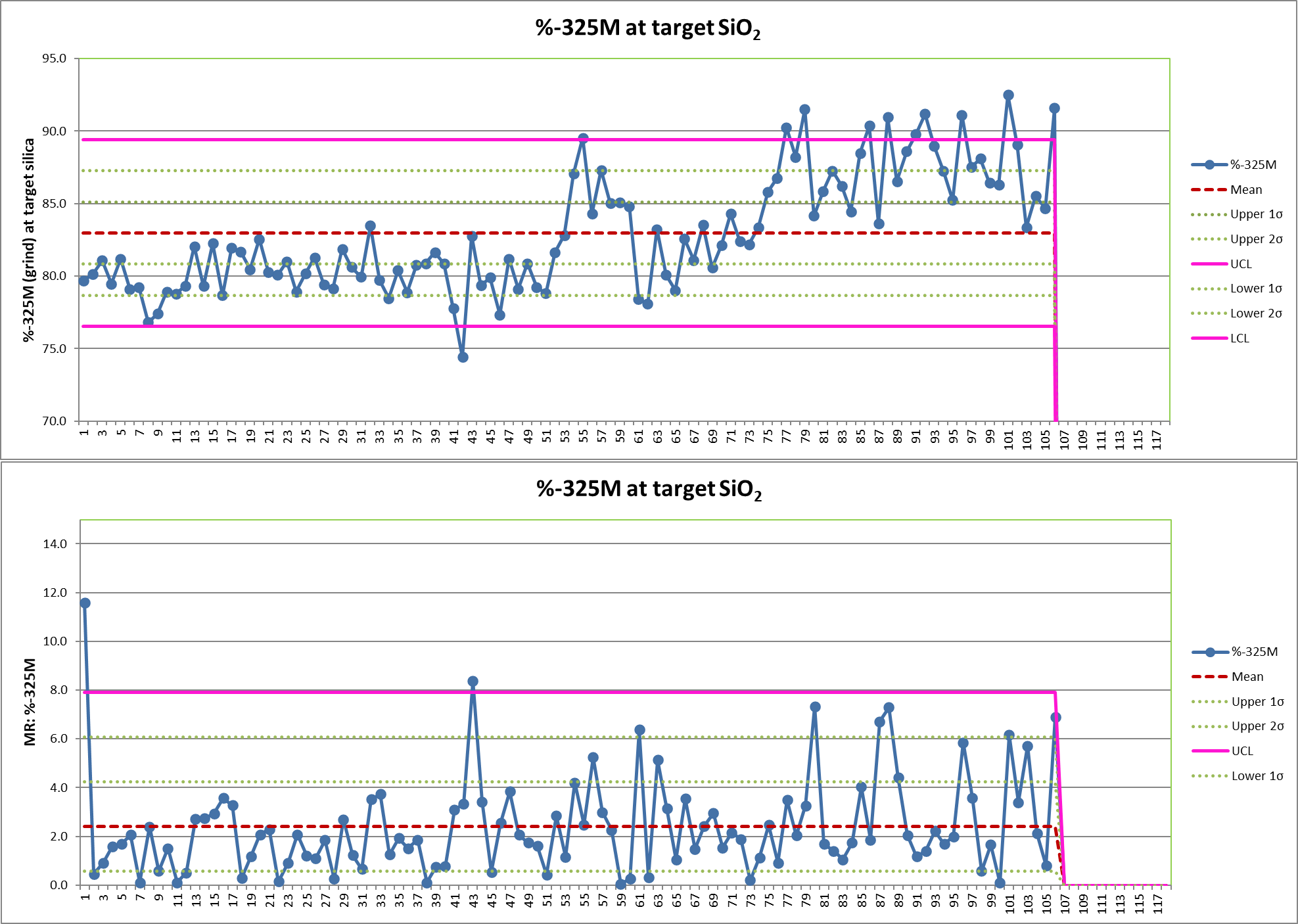

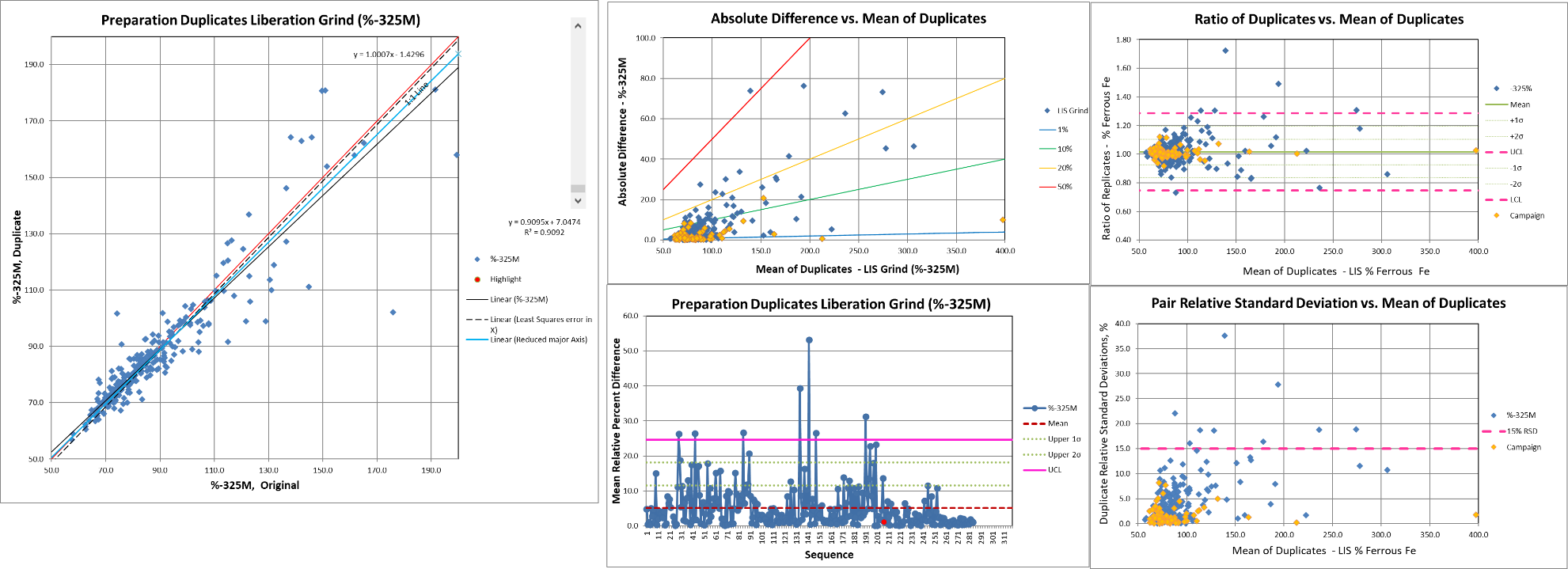

Figure 8-15:    Grind (%-325 Mesh) Preparation Duplicates
76

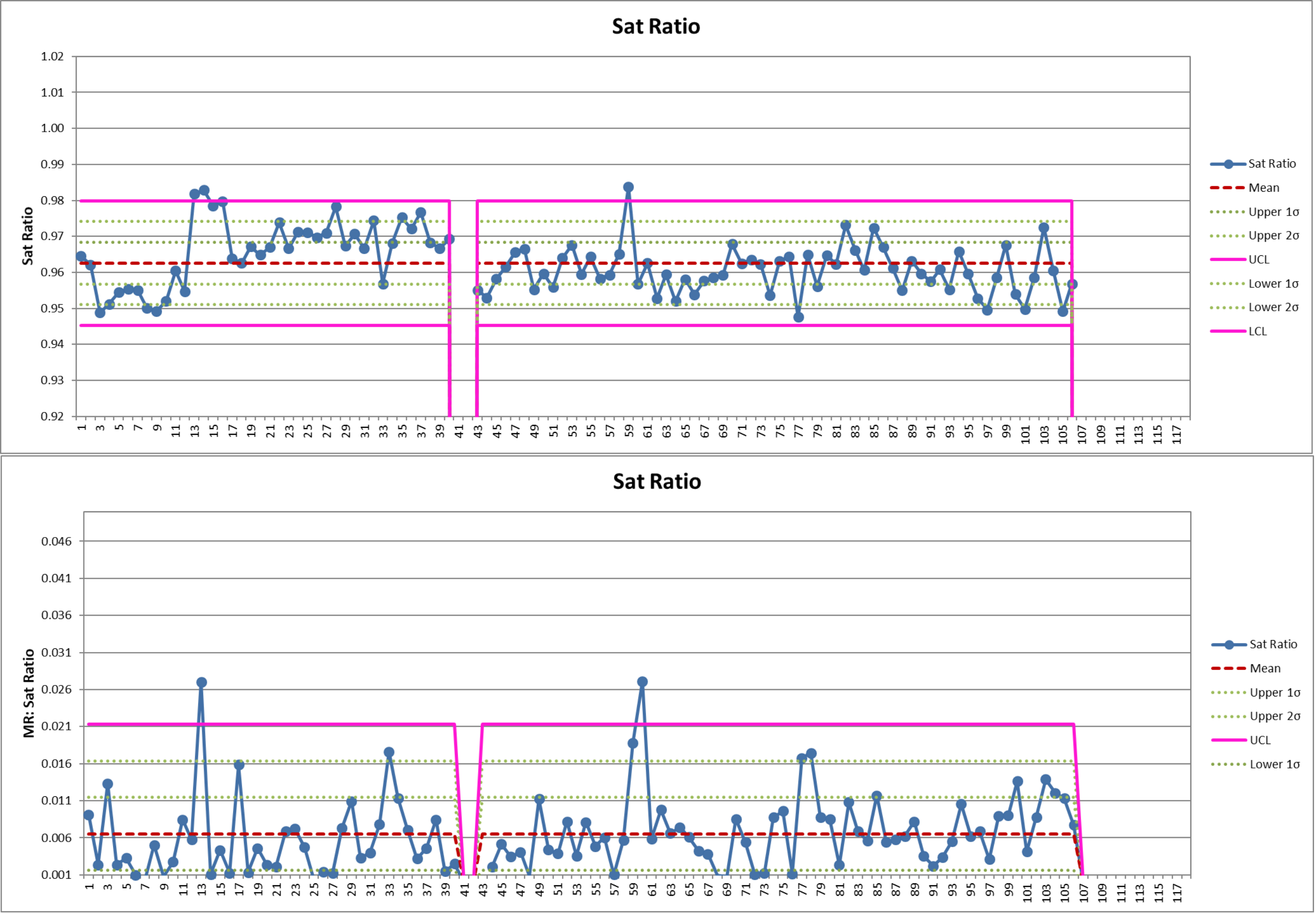

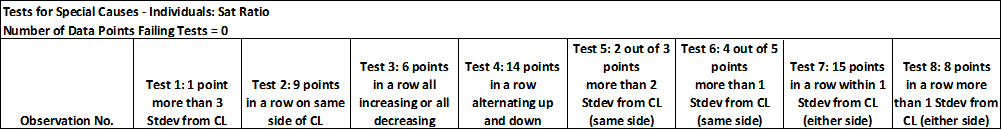

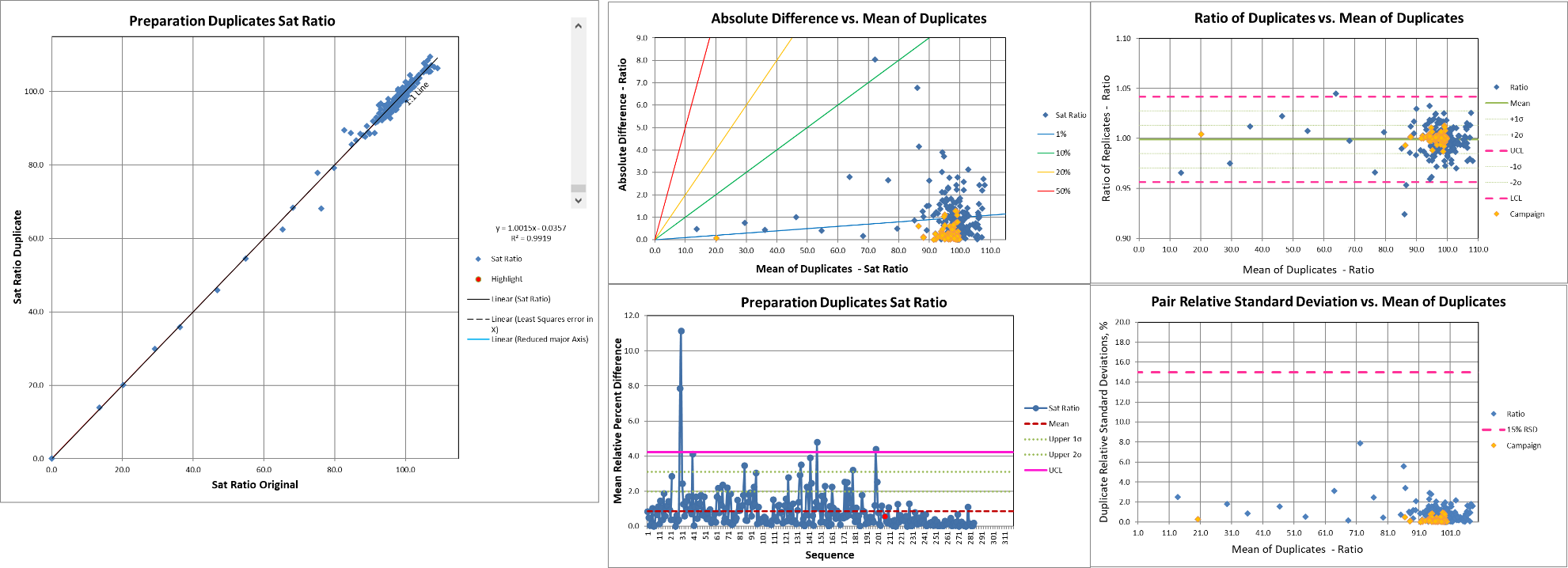

Figure 8-16:    Sat Ratio Preparation Duplicates
77

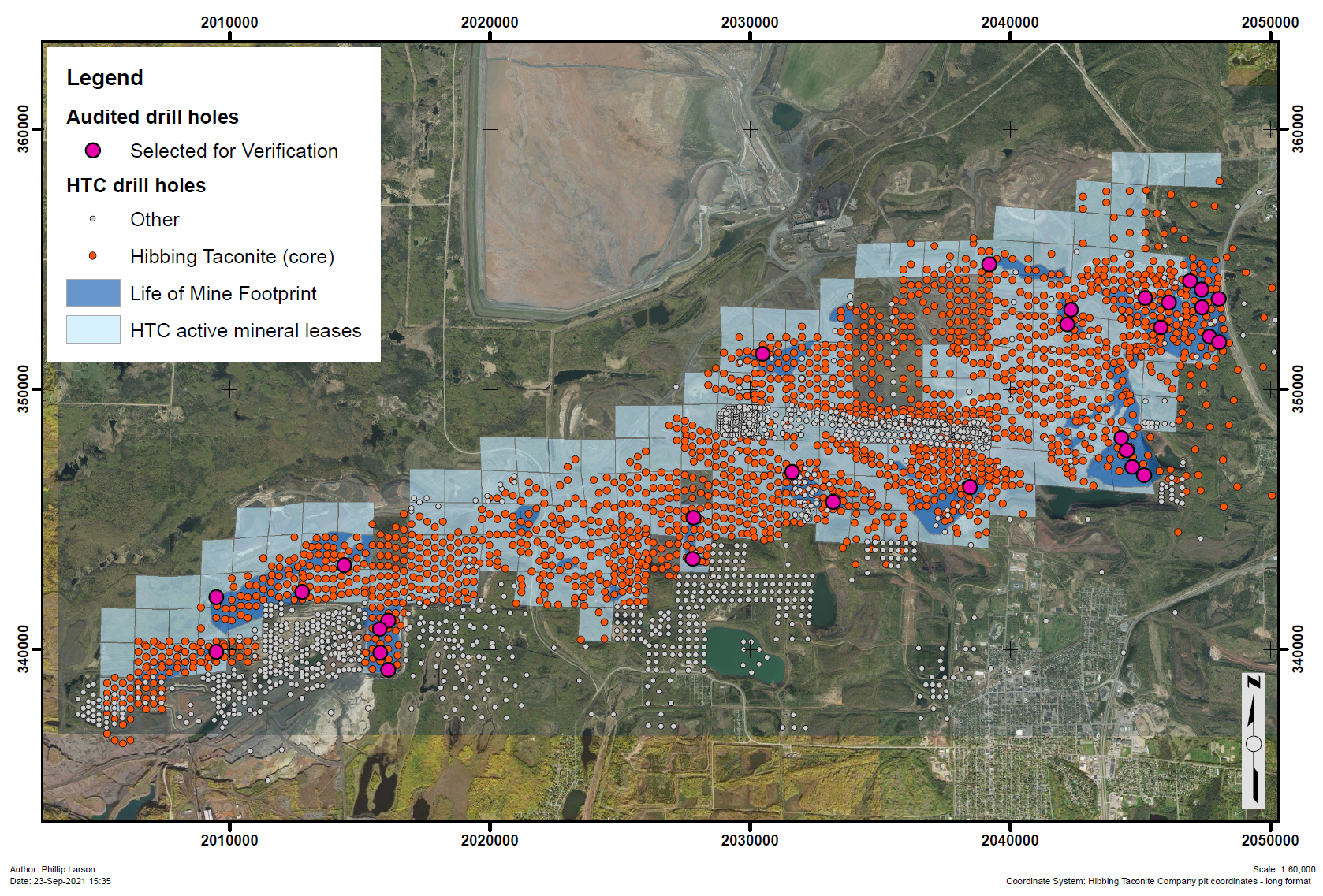

Figure 9-1:    Drill Hole Database Verification Map
82
Figure 11-1:    Drill Hole Location Map
90
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    vii

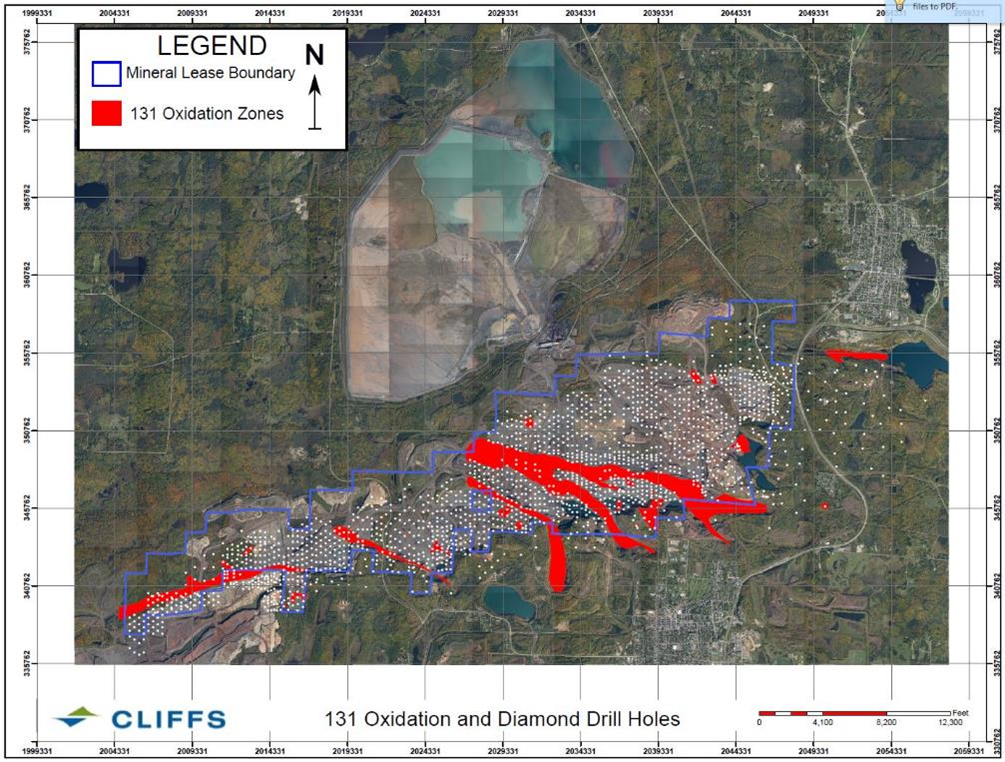

Figure 11-2:    Unit 131 Triangulation with Oxidation Zones (Red Outlines) and Diamond Drill
                             Holes
94
Figure 11-3:    Grade Histograms: Hibbing Assay Grade Histogram (MagFe_dt)
96

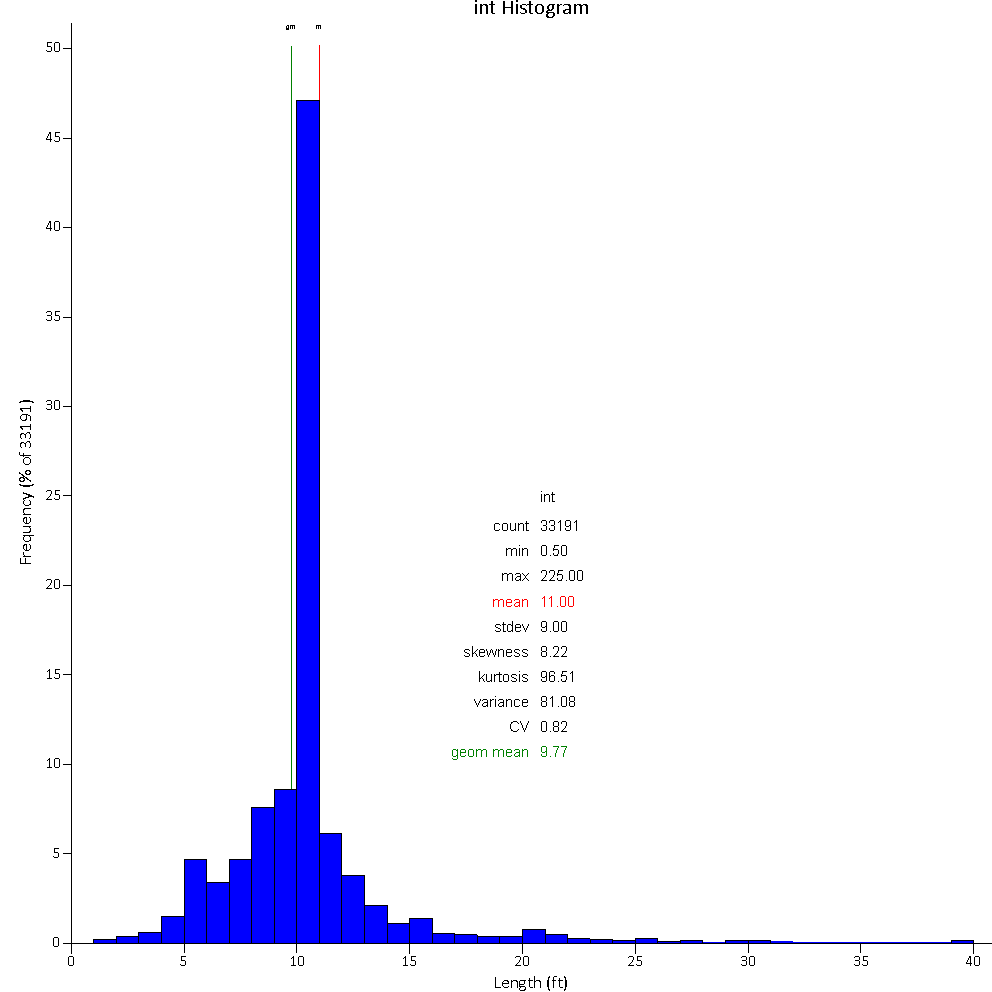

Figure 11-4:    HibTac Histogram of Sample Length
98

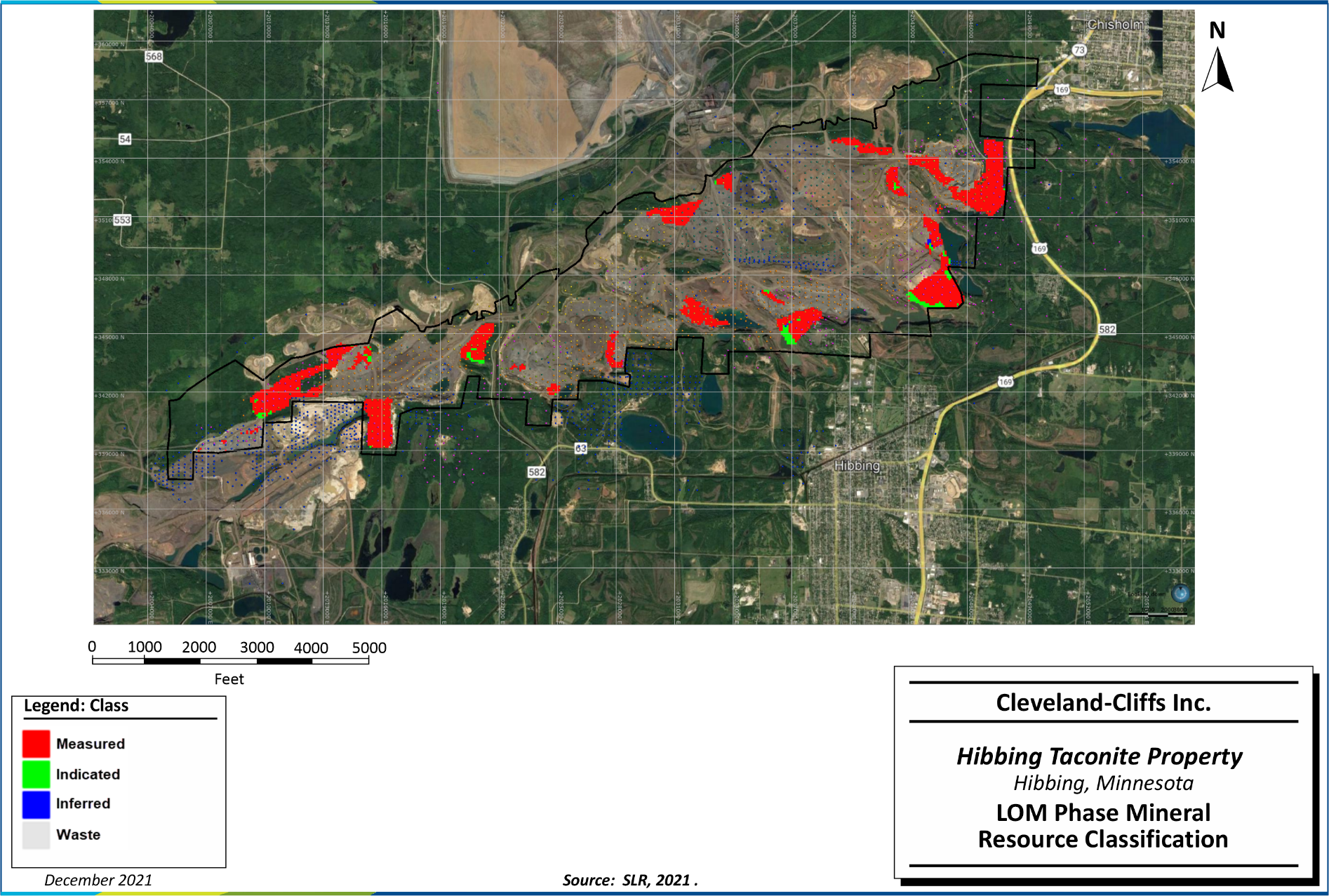

Figure 11-5:    LOM Phase Mineral Resource Classification
103

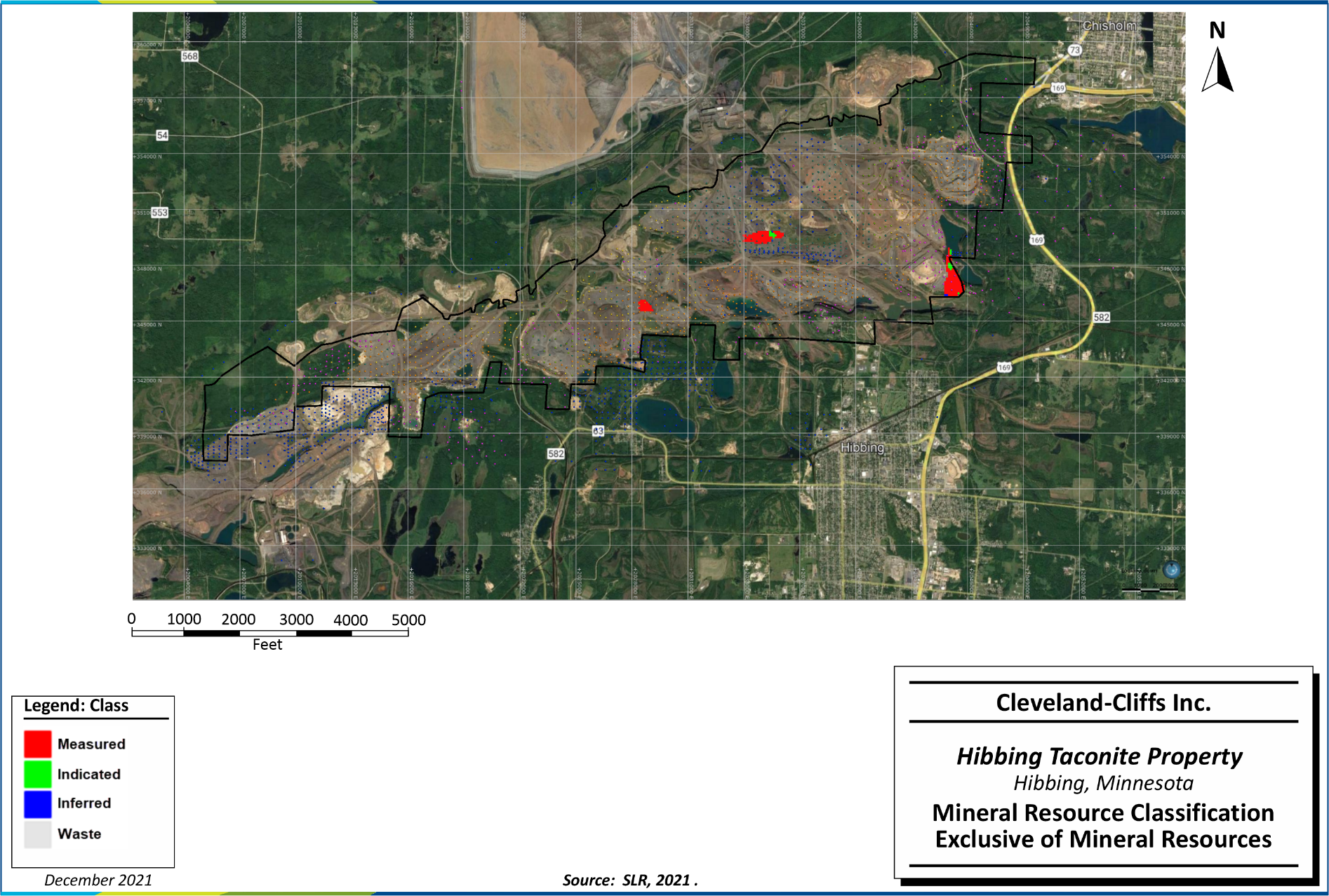

Figure 11-6:    Mineral Resource Classification Exclusive of Mineral Reserves
104

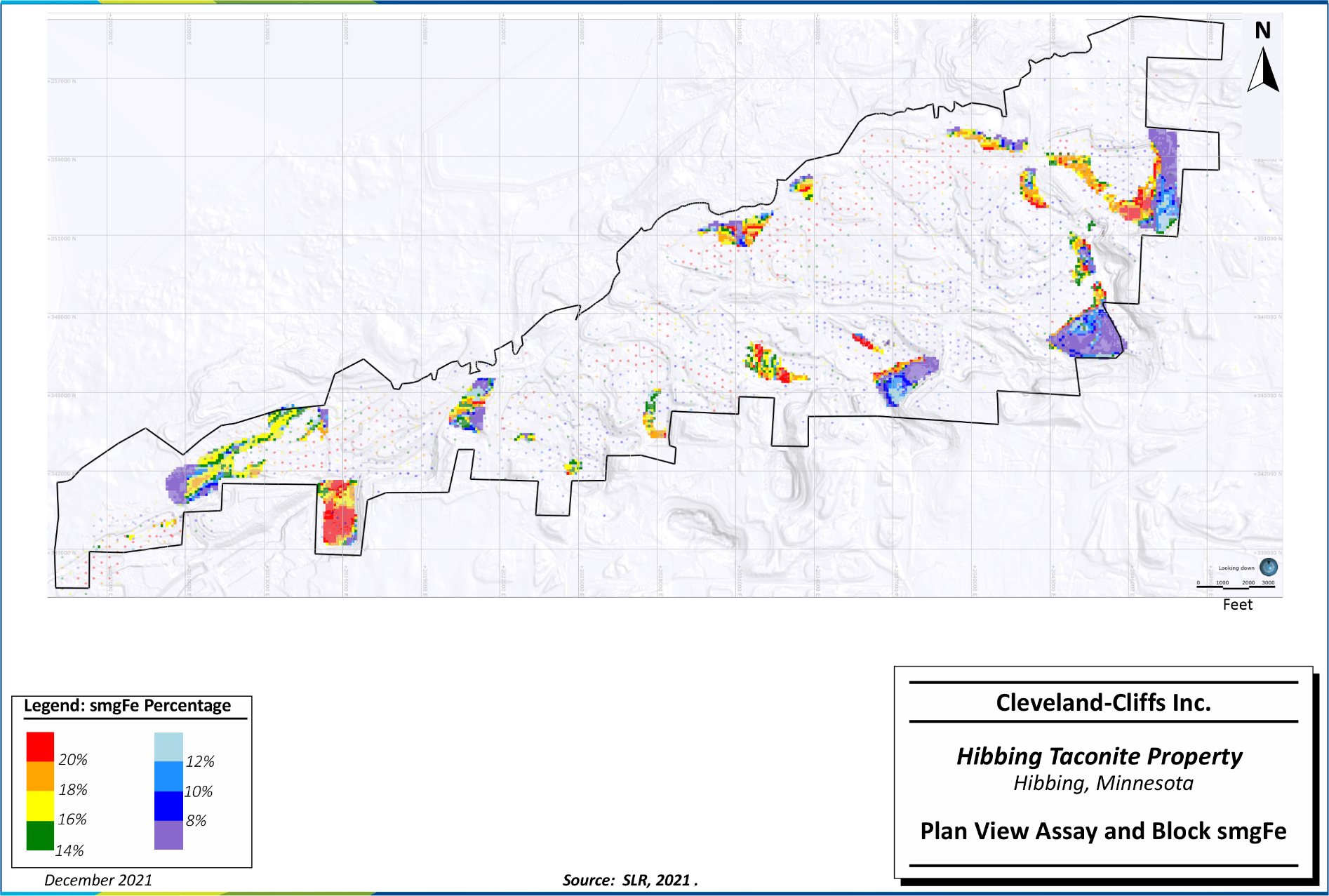

Figure 11-7:    Plan View Assay and Block smgfe
106

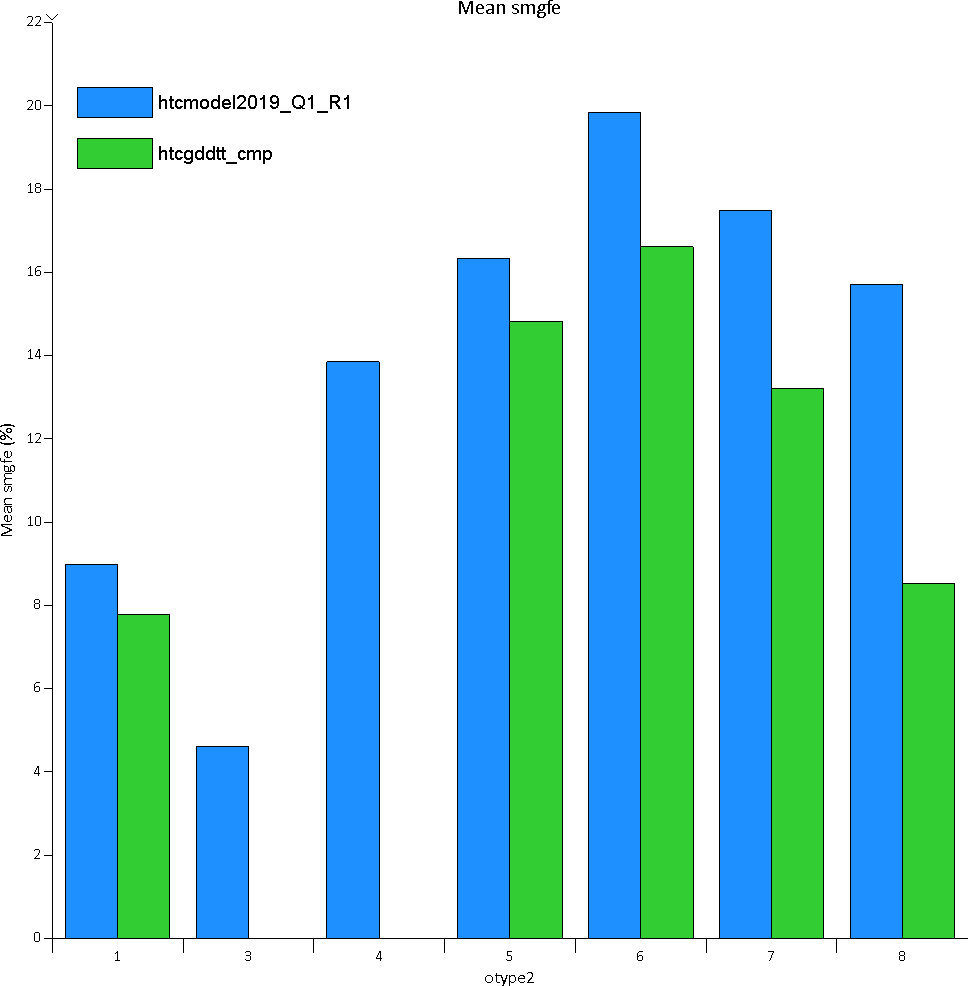

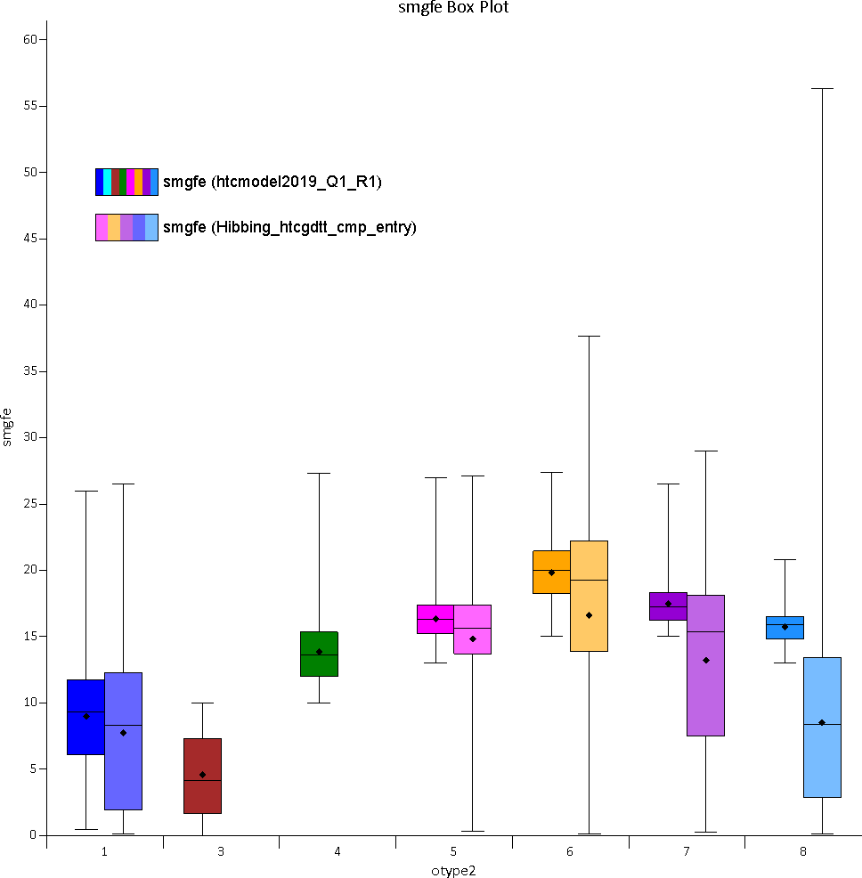

Figure 11-8:    Whisker Plots for smgfe Composites and Blocks Otype2 Domains
109

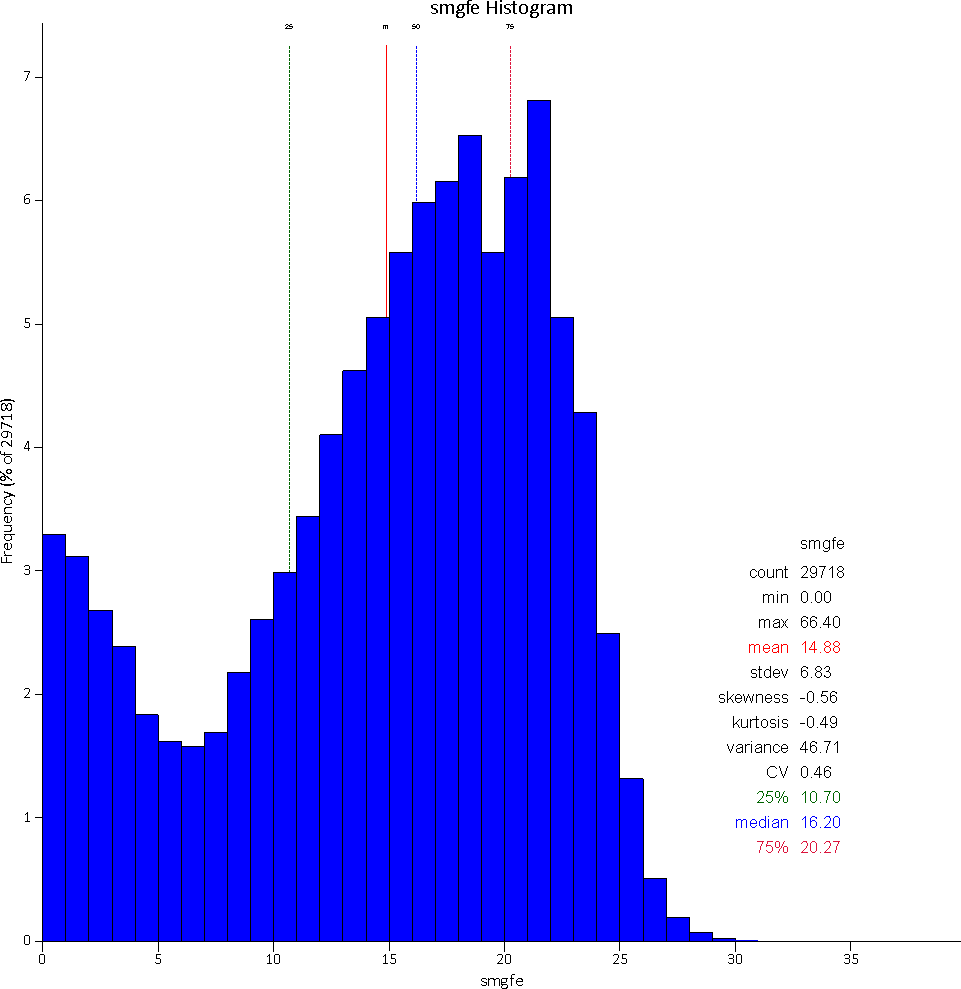

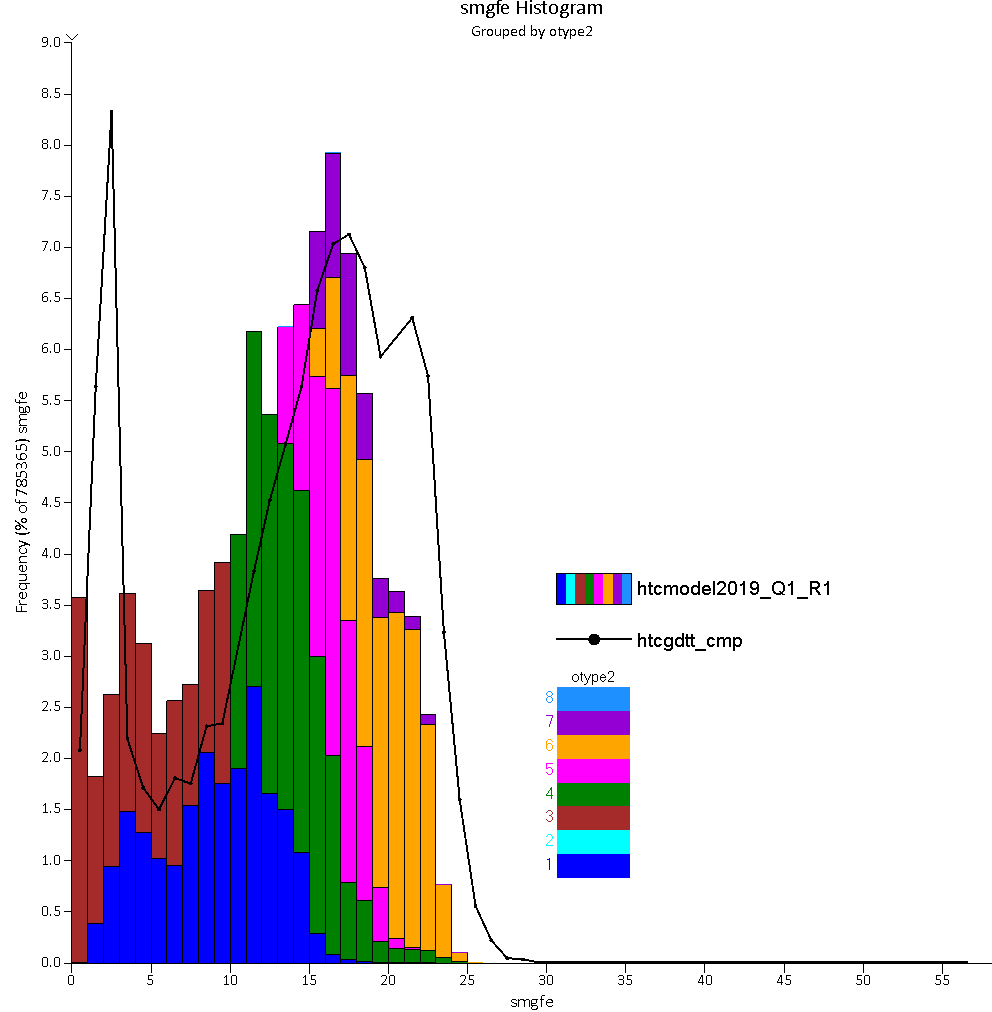

Figure 11-9:    Histogram for smgfe Composites and Blocks Otype2 Domains
109
Figure 11-10:    Histogram smgfe Composites and Blocks Otype2 Domains
110

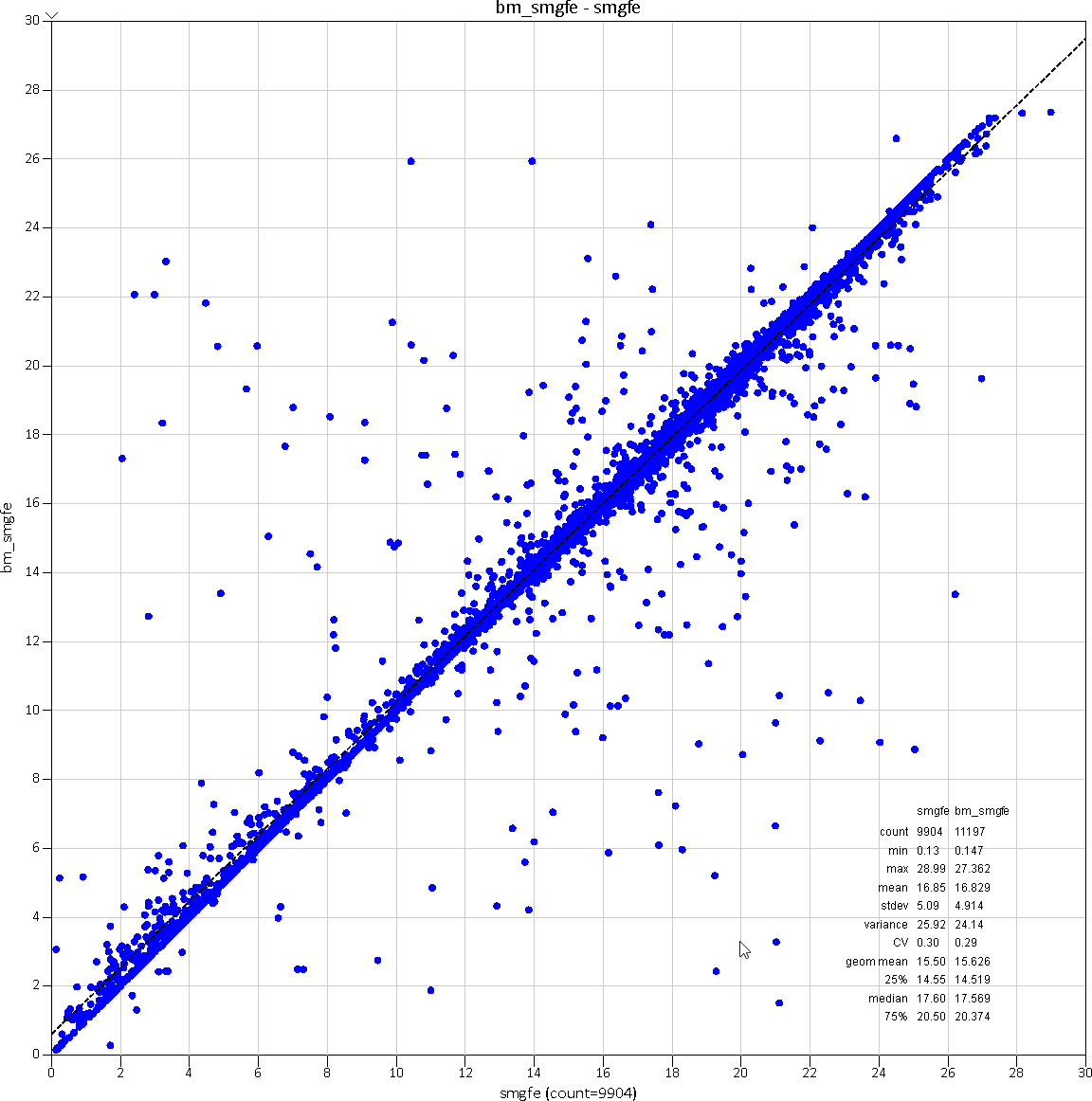

Figure 11-11:    Scatter Plot smgfe Grade Composites versus Blocks Otype2 (5, 6, and 7)
                             Domains
111

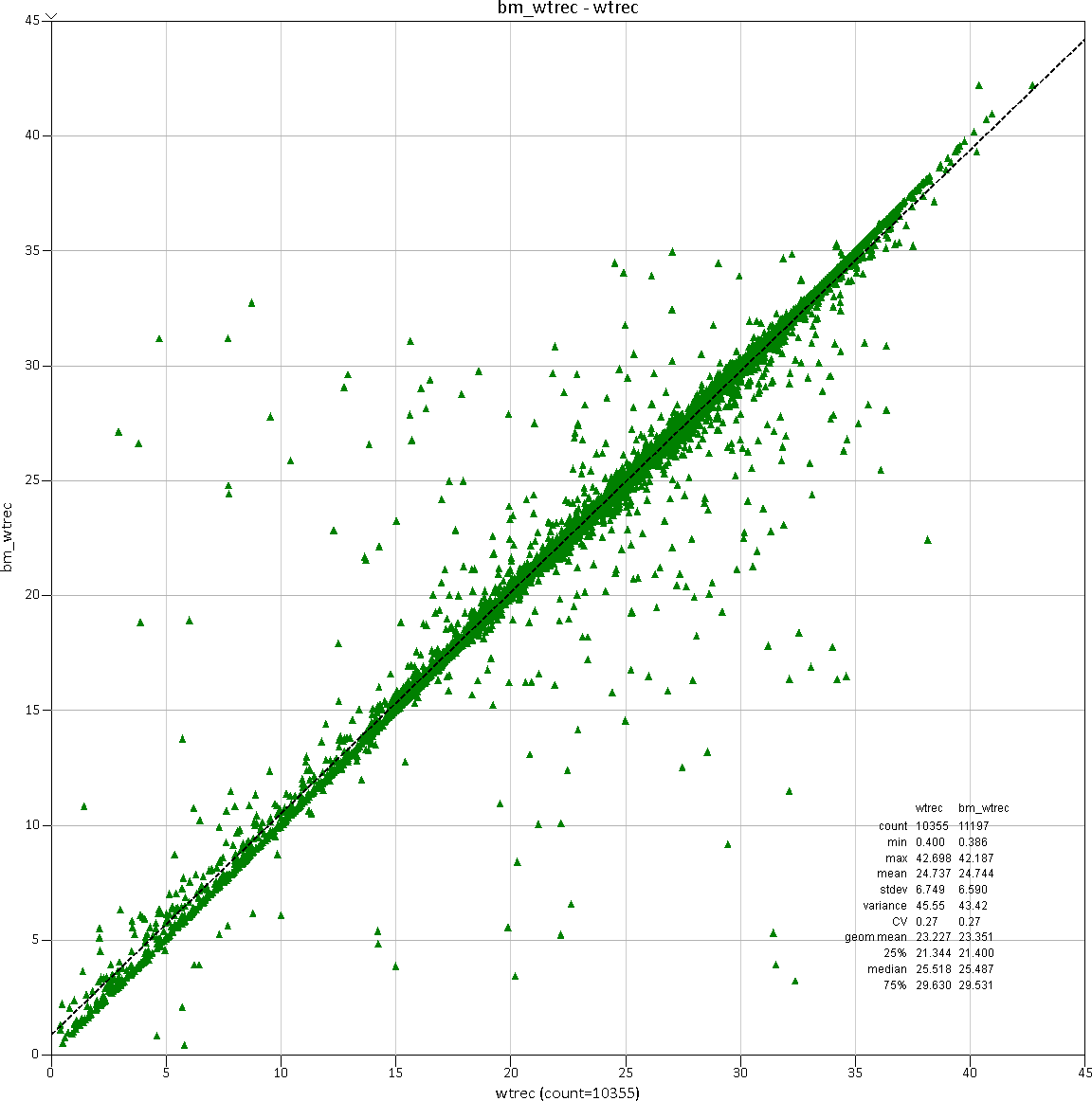

Figure 11-12:    Scatter Plot wtrec Grade Composites versus Blocks Otype2 (5, 6, and 7)
                             Domains
111

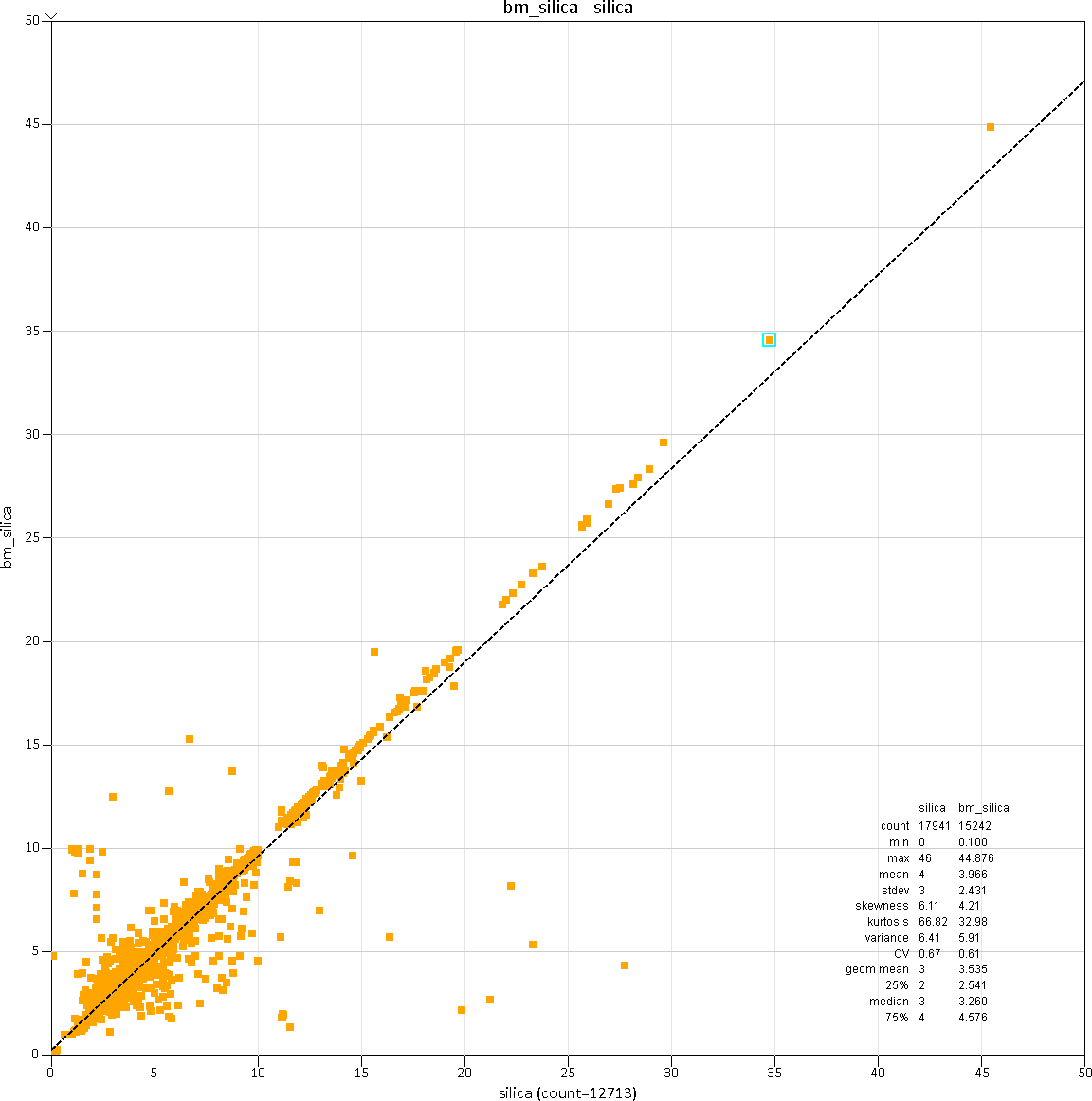

Figure 11-13:    Scatter Plot Silica Grades Composites versus Blocks Otype2 (5, 6, and 7)
                             Domains
112
 143
 145
 146

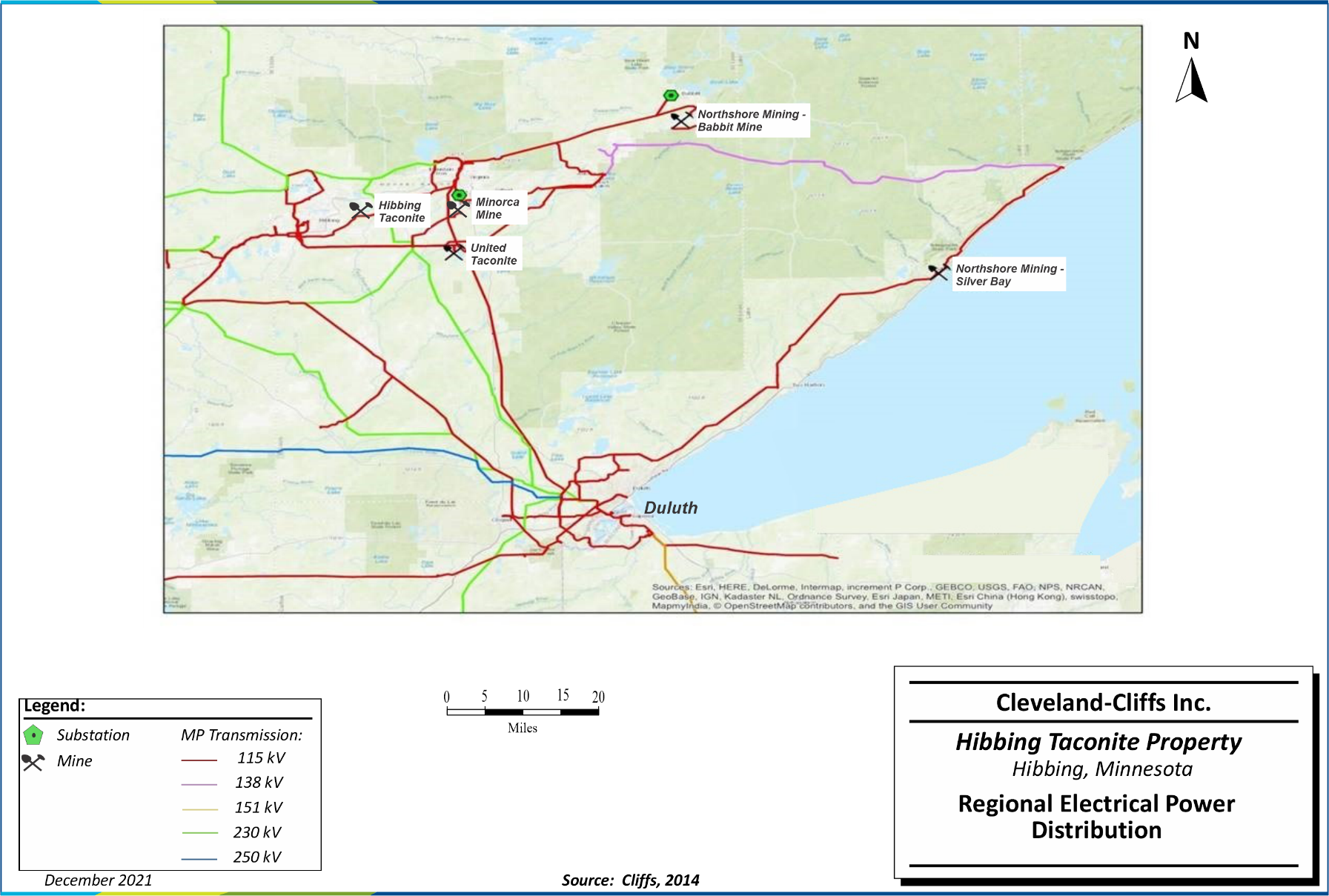

Figure 15-6:    Regional Electrical Power Distribution
 150

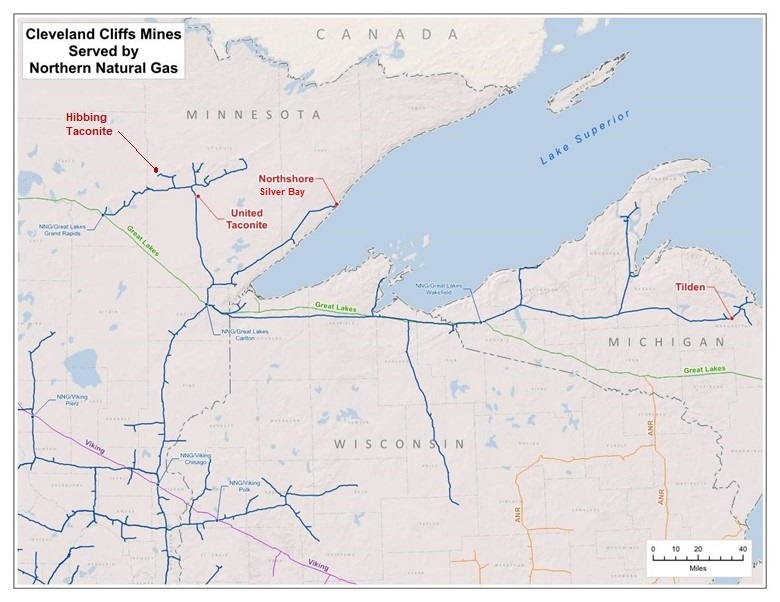

Figure 15-7:    Regional Natural Gas Supply
 151

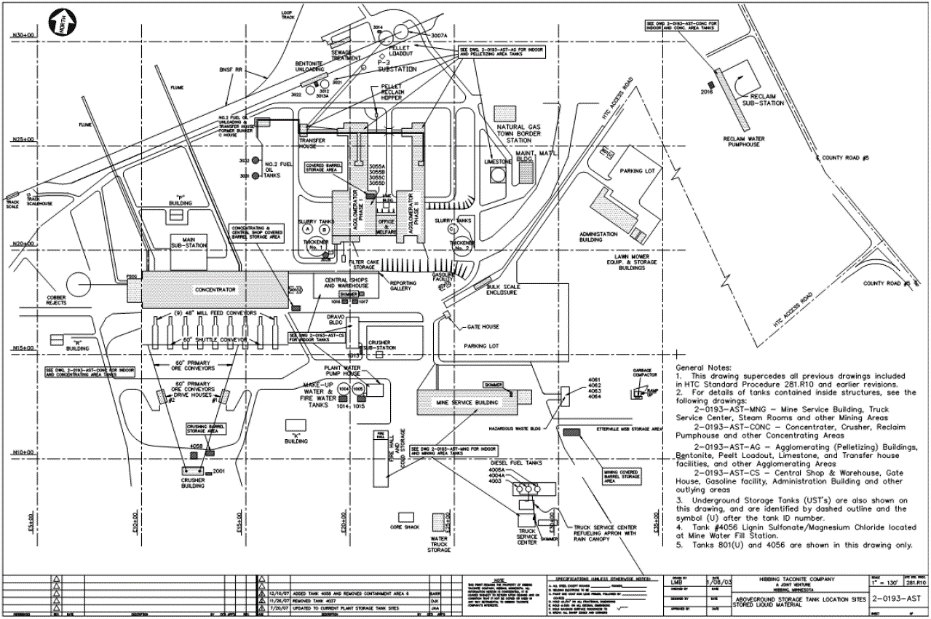

Figure 15-7:    Hibbing Taconite Facilities General Arrangement Drawing
 153
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    viii



1.0EXECUTIVE SUMMARY
1.1Summary
SLR Consulting Ltd (SLR) was retained by Cleveland-Cliffs Inc. (Cliffs) to prepare an independent Technical Report Summary (TRS) for the Hibbing Taconite Property (HibTac or the Property), located in Northeastern Minnesota, USA. The owner of the Property, Hibbing Taconite Company (Hibbing Taconite), is a joint venture (JV) between subsidiaries of Cliffs (85.3% ownership) and U.S. Steel Corporation (U.S. Steel) (14.7%). The Property is managed by Cleveland-Cliffs Hibbing Management LLC, a wholly-owned subsidiary of Cliffs.
The purpose of this TRS is to disclose year-end (YE) 2021 Mineral Resource and Mineral Reserve estimates for HibTac.
Cliffs is listed on the New York Stock Exchange (NYSE) and currently reports Mineral Reserves of pelletized ore in SEC filings. This TRS conforms to the United States Securities and Exchange Commission’s (SEC) Modernized Property Disclosure Requirements for Mining Registrants as described in Subpart 229.1300 of Regulation S-K, Disclosure by Registrants Engaged in Mining Operations (S-K 1300) and Item 601 (b)(96) Technical Report Summary. SLR visited the Property on April 28, 2021.
The Property includes the Hibbing Taconite Mine (the Mine) and processing facility (the Plant) in Hibbing, Minnesota. The Mine is a large, operating, open-pit iron mine that produces pellets from a magnetite iron ore regionally known as taconite.
The Property commenced operations in 1976 as a JV between Bethlehem Steel Corporation (Bethlehem) (75%), Pickands Mather and Co. (Pickands Mather) (15%), and Steel Company of Canada (Stelco) (10%). Cliffs first became involved in the JV when it purchased Pickands Mather’s 15% share of the JV in 1986 and another 8% share from Bethlehem in 2002. In 2003-2004, ArcelorMittal USA (AMUSA) acquired Bethlehem’s 62% share and became the largest shareholder of the JV. Cliffs managed the JV through a subsidiary until 2019 when AMUSA assumed control of the operation. In 2020, Cliffs acquired the US assets of AMUSA and again became the operator of the Property.
The open-pit operation has a mining rate of approximately 24 million long tons (MLT) of ore per year and produces 6.2 MLT of iron ore pellets, which are shipped by freighter via the Great Lakes to Cliffs’ steel mill facilities in the Midwestern USA.
1.1.1Conclusions
The Property has been a successful producer of iron pellets for over 45 years. The update to the Mineral Resource and Mineral Reserve does not materially change any of the assumptions from previous operations. An economic analysis was performed using the estimates presented in this TRS and confirms that the outcome is a positive cash flow that supports the statement of Mineral Reserves for a remaining five-year mine life.
SLR offers the following conclusions by area.
1.1.1.1Geology and Mineral Resources
Above a crude magnetic iron (MagFe) cut-off grade of 13%, Measured and Indicated Mineral Resources exclusive of Mineral Reserves attributable to Cliffs' 85.3% ownership at HibTac are estimated to total 9.1 MLT at an average grade of 19.2% MagFe.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    1



The HibTac deposit is an example of Lake Superior-type banded iron formation (BIF) deposits. Both the site and corporate technical teams have a strong understanding of the HibTac geology and mineralization, as well as their processing characteristics.
Exploration sampling, preparation, analyses, and security processes for both physical samples and digital data are appropriate for the style of mineralization and are sufficient to support the estimation of Mineral Resources.
Quality assurance and quality control (QA/QC) results for the 2021 verification study are appropriate for the style of mineralization and are sufficient to generate a drill hole assay database that is adequate for Mineral Resource estimation in compliance with international reporting standards. In conjunction with good agreement between planned and actual product produced over more than 45 years, it is SLR’s opinion that procedures meet minimum S-K 1300 guidelines.
The key economic variable (KEV) in the block models for HibTac compare well with the source data.
The methodology used to prepare the block model is appropriate and consistent with industry standards.
The block model represents an acceptable degree of smoothing at the block scale for prediction of quality variables at HibTac. Visually, blocks and composites in cross-section and plan view compare well.
1.1.1.2Mining and Mineral Reserves
The HibTac JV has been in production since 1976 and specifically under 100% Cliffs operating management of the JV since 2020. Cliffs conducts its own Mineral Reserve estimations.
Total Proven and Probable Mineral Reserves are approximately 109 MLT of crude ore at an average grade of 18.7% MagFe.
Mineral Reserve estimation practices follow industry standards.
The life of mine (LOM) of HibTac is limited to the next five years, with mining operations ceasing in 2026.

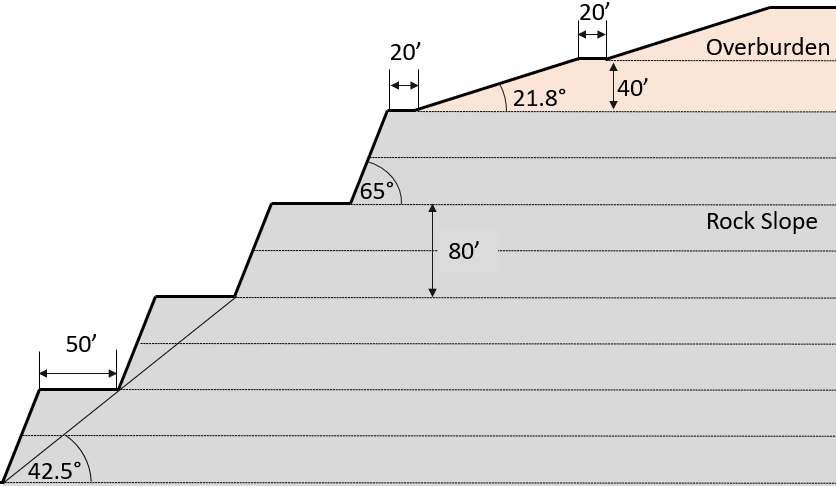

The geotechnical design parameters used for pit design are reasonable and supported by previous operations.
The LOM production schedule is reasonable and incorporates large mining areas and open benches.
An appropriate mining equipment fleet, maintenance facilities, and manpower are in place, with various options for additions and replacements estimated, to meet the LOM production schedule requirements.
Sufficient storage capacity for waste stockpiles and tailings has been identified to support the production of the Mineral Reserve.
1.1.1.3Mineral Processing
Three ore types are processed at Hibbing and are referred to as blend components 1-7 (lean ore, <20%), 1-5/1-6 (high-grade ore, >60%), and 1-3/1-4 (low-grade ore, <30%).
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    2

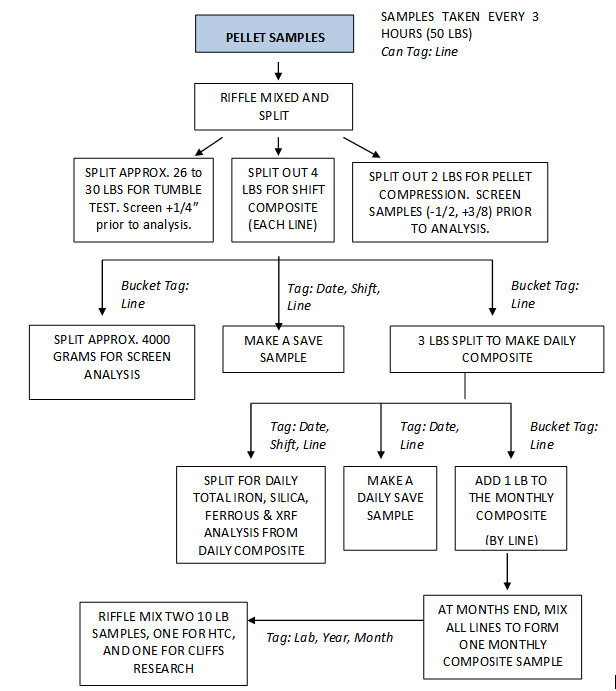

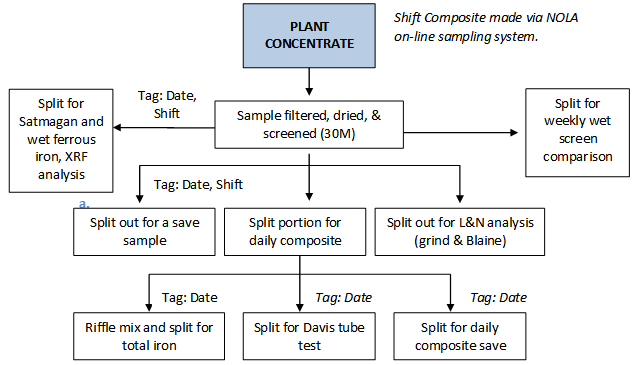

Routine plant samples are collected and analyzed in the HibTac onsite laboratory for process control, product quality monitoring, and reporting to comply with plant and cargo specifications.

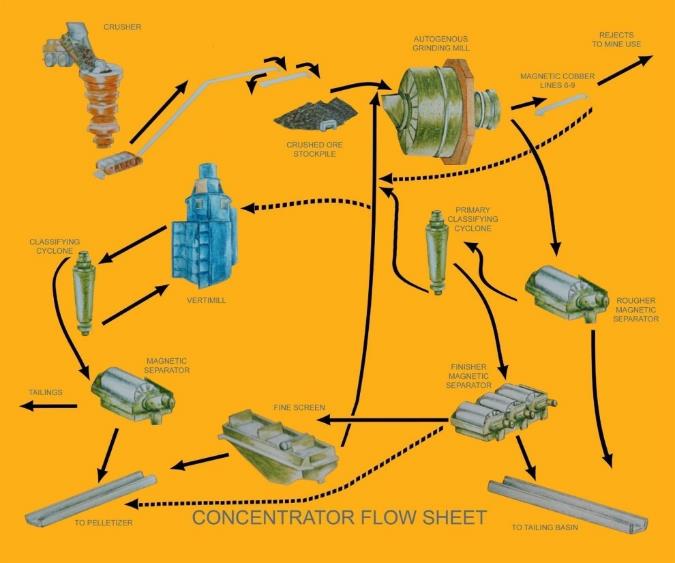

The crushing plant consists of two Allis Chalmers gyratory crushers that crush run of mine (ROM) ore to minus 10 in. The concentrator is based on nine lines of autogenous grinding (AG) mills with two stages (rougher and finisher) of magnetic separation, hydrocyclone classification to close the milling circuits, and hydro-separators for classification of non-magnetic tailings. Finisher magnetic concentrate is screened to obtain final product at 100% passing (P100) 325 mesh. The magnetic concentrate reports to the concentrate thickener, and the non-magnetic fraction reports to the tailings.
Concentrate is filtered using vacuum disc filters to approximately 9.25% moisture and blended with bentonite prior to pelletizing to produce standard compression pellets, and limestone is added to the mix when producing high-compression pellets.

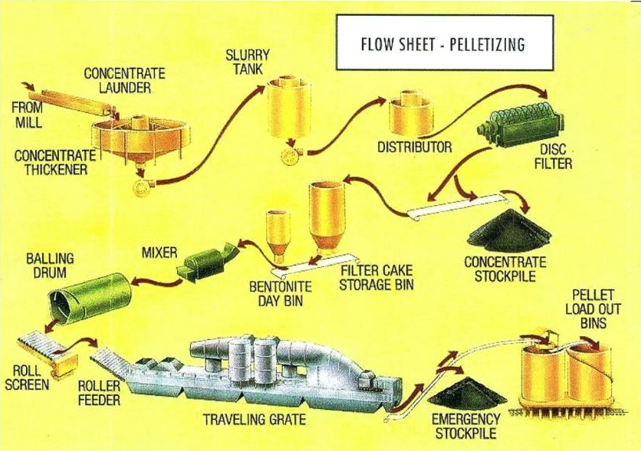

Each pelletizing line consists of four Sala balling drums, which discharge across roll screens, producing green (unfired) balls. Sized green balls are conveyed to three 13 ft-wide by 243 ft-long Dravo Traveling Grate indurating furnaces. Pellets discharged from the indurating furnaces are the final product and are conveyed to the pellet load-out bins or to the emergency stockpile.

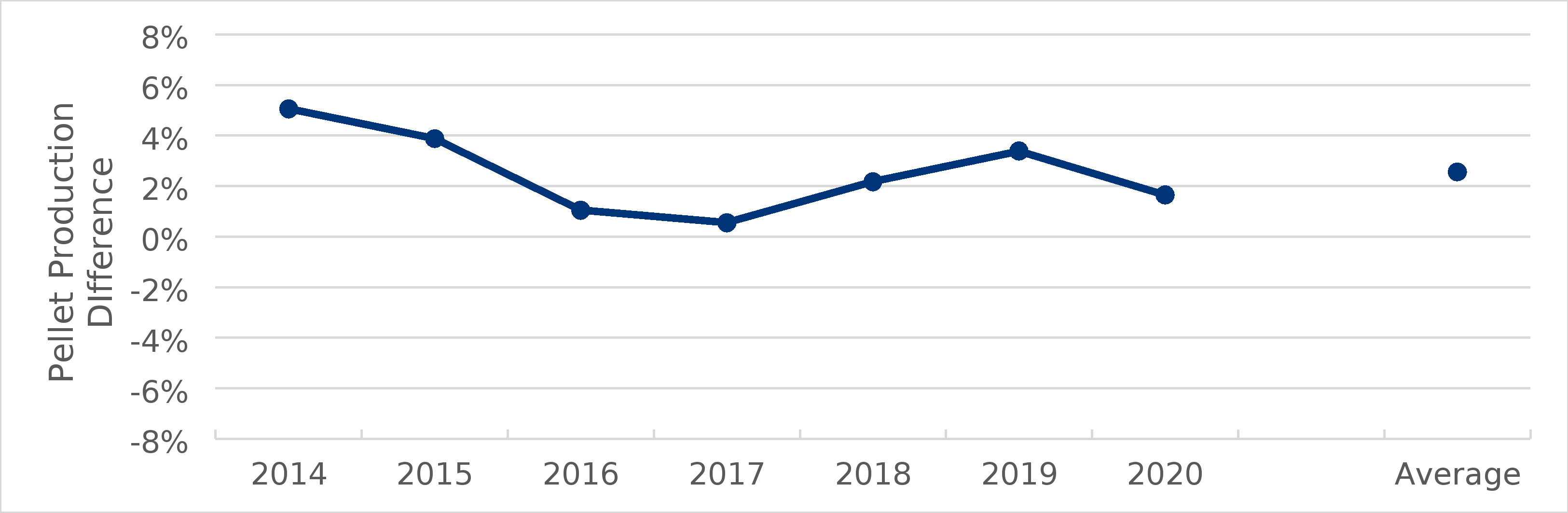

Final pellet production is determined by actual train shipments once per month and compared with operating plant measurements. Typical adjustments are in the range of 2,000 long tons (LT) to 3,000 LT over a total production of 700,000 LT (<0.5% adjustment).
The ore delivered to the primary crusher from 2015 to 2020 averaged 28,083,000 wet long tons (WLT) per year (WLT/y) with an average crude magnetic iron grade of 17.7% and concentrate silica content of 4.6%. Weight recovery to concentrate averaged 26.4% over this period, and wet pellet production averaged 7,400,200 WLT/y. Pellet grades averaged 66.1% Fe, 4.5% SiO2, and 2.1% moisture for the period.
1.1.1.4Infrastructure
The Property is in a historically important, iron-producing region of Northeastern Minnesota. All the infrastructure necessary to mine and process significant commercial quantities of iron ore is in place.

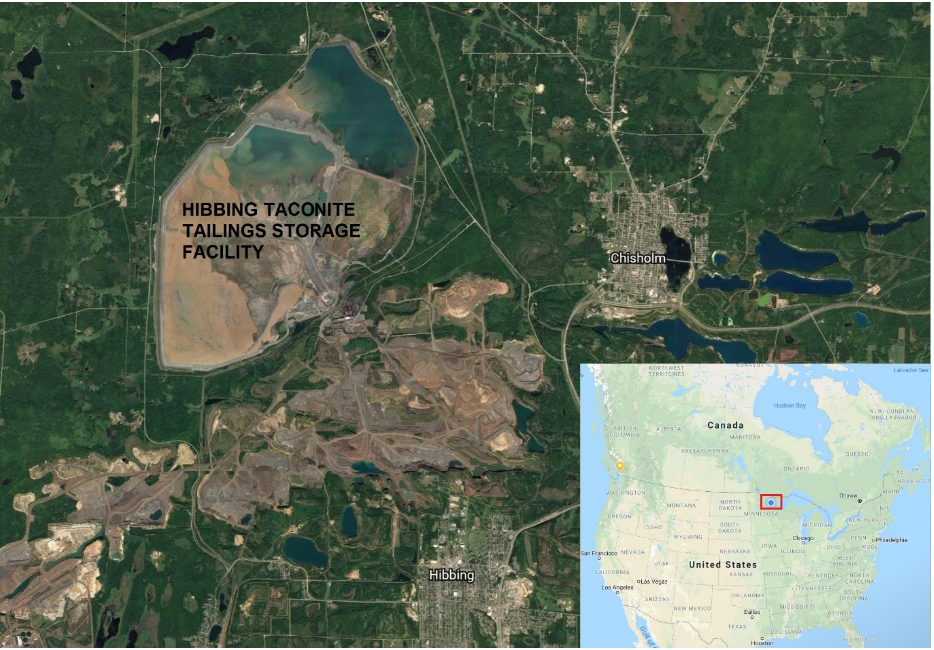

The HibTac tailings storage facility (TSF) has been operating since 1976 and is currently operating under the requirements of the Minnesota Department of Natural Resources (MDNR). The TSF is a paddock dam-type TSF consisting of five cells: West Area 1, 2, and 3 (WA-1, WA-2, and WA-3 with approximately 2,080 acres, 510 acres, and 1,000 acres of impoundment area, respectively), which are used for tailings deposition; SD-3 Reservoir (approximately 1,340 acres of impoundment area), which is used as a return water reservoir; and East Area (approximately 830 acres of impoundment area), which is currently not in use but will be brought into production at a later date.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    3



1.1.1.5Environment
Hibbing Taconite maintains the requisite state and federal permits and is in compliance with all permits. Environmental liabilities and permitting are further discussed in Section 17 of this TRS.
A mine closure plan is not required by the state of Minnesota until at least two years in advance of deactivation of the mining area. HibTac’s current mine life is projected at five years; therefore, a detailed closure plan has not been prepared. Cliffs performs annual reviews of changes to HibTac’s Asset Retirement Obligation (ARO) cost estimate and has calculated ARO legal obligations for closure and reclamation costs.
1.1.2Recommendations
1.1.2.1Geology and Mineral Resources
1.Continue to develop and expand the QA/QC program to ensure that the program includes defined limits where follow-up is required, and that results are reviewed and documented in a report including conclusions and recommendations regularly and in a timely manner.
a.Quality results documented in this report support an initial standard and duplicate submission rate of 5% each.
b.HibTac should submit a small number of “preparation duplicate” samples to a secondary accredited laboratory to document capability(ies), cost, and time efficiency of alternate provider(s) and confirm that results are comparable to those of the current provider.
1.1.2.2Mining and Mineral Reserves
1.Complete additional permitting work at HibTac to finalize decision on conversion of on-strike Mineral Resources to Mineral Reserves and update mine planning accordingly.
1.1.2.3Mineral Processing
1.While plant operational performance including concentrate and pellet production and pellet quality continue to be consistent year over year, continue to maintain diligence in process-oriented metallurgical testing and in plant maintenance going forward.
1.1.2.4Infrastructure
1.The Operations, Maintenance, and Surveillance (OMS) Manual for the TSF should be updated with the Engineer of Record (EOR) in accordance with Mining Association of Canada (MAC) guidelines and other industry-recognized, standard guidance for tailings facilities.
2.The remediation, or resolution, of items of concern noted in TSF audits or inspection reports should be documented, prioritized, tracked, and closed out in a timely manner.
1.1.2.5Environment
1.While it is acknowledged that a closure plan and other post-mining plans are not required to be prepared until two years prior to anticipated closure, SLR recommends that a closure plan including costing be completed to prepare the operation for eventual closure in approximately five years.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    4



1.2Economic Analysis
1.2.1Economic Criteria
An un-escalated technical-economic model was prepared on an after-tax, discounted cash flow (DCF) basis, the results of which are presented in this subsection. Key criteria used in the analysis are discussed in detail throughout this TRS. General assumptions used are summarized in Table 1-1 with all physicals reported per WLT pellet.
Table 1-1:    Technical-Economic Assumptions
Cleveland-Cliffs Inc. – Hibbing Taconite Property
DescriptionValue
Start DateDecember 31, 2021
Mine LifeFive years
Three-Year Trailing Average Revenue$98/WLT pellet
Operating Costs$75.29/WLT pellet
Sustaining Capital$27 million
Discount Rate10%
Discounting BasisEnd of Period
Inflation0%
Federal Income Tax20%
State Income TaxNone – Sales made out of state
Table 1-2 presents a summary of the estimated mine production over the five year mine life.
Table 1-2:    LOM Production Summary
Cleveland-Cliffs Inc. – Hibbing Taconite Property
DescriptionUnitsValue
ROM Crude OreMLT109.3
Total MaterialMLT220.8
Grade% MagFe18.7
Average Mining RateMLT/y58
Table 1-3 presents a summary of the estimated plant production over the five year mine life.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    5



Table 1-3:    LOM Plant Production Summary
Cleveland-Cliffs Inc. – Hibbing Taconite Property
DescriptionUnitsValue
ROM Material MilledMLT109.3
Annual Processing RateMLT/y24.7
Process Recovery%25.5
Total PelletMWLT27.8
Annual Pellet Production RateMWLT/y6.3
1.2.2Cash Flow Analysis
The indicative economic analysis results presented in Table 1-4 indicate an after-tax Net Present Value (NPV), using a 10.0% discount rate, of $269 million at an average blended wet pellet price of $98/WLT. SLR notes that after-tax Internal Rate of Return (IRR) is not applicable, as the Plant has been in operation for a number of years. Capital identified in the economics is for sustaining operations and plant rebuilds as necessary.
The economic analysis was performed using the estimates presented in this TRS and confirms that the outcome is a positive cash flow that supports the statement of Mineral Reserves.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    6



Table 1-4:    LOM Indicative Economic Results
Cleveland-Cliffs Inc. – Hibbing Taconite Property
Description$ Millions$/WLT Pellet
Three-Year Trailing Revenue ($/WLT Pellet)98
Pellet Production (MWLT)27.8
Gross Revenue2,726
Mining55319.87
Processing96134.57
Site Administration642.30
Pellet Transportation and Storage28810.35
General / Other Costs2288.20
Total Operating Costs2,09475.29
Operating Income (excl. D&A)63222.71
Federal Income Tax(126)(4.54)
Depreciation Tax Savings130.46
Accretion Tax Savings70.27
Net Income after Taxes52618.89
Sustaining + TSF Capital(27)(0.97)
Closure Costs(172)(6.20)
Cash Flow32711.72
NPV 10.0%269
1.2.3Sensitivity Analysis
The HibTac operation is nominally most sensitive to market prices (revenues) followed by operating cost. For each dollar movement in sales price and operating cost, respectively, the after-tax NPV changes by approximately $18 million.
1.3Technical Summary

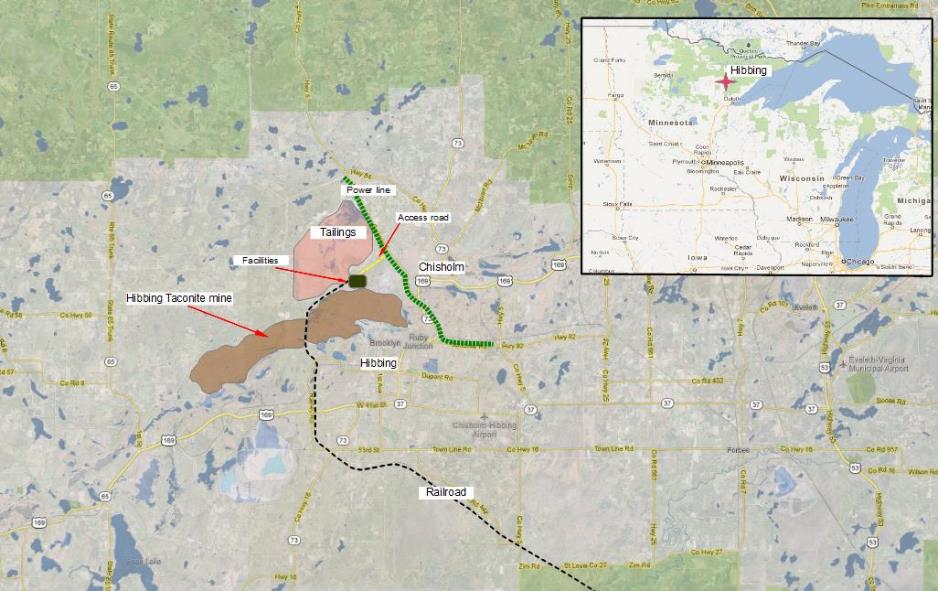

1.3.1Property Description

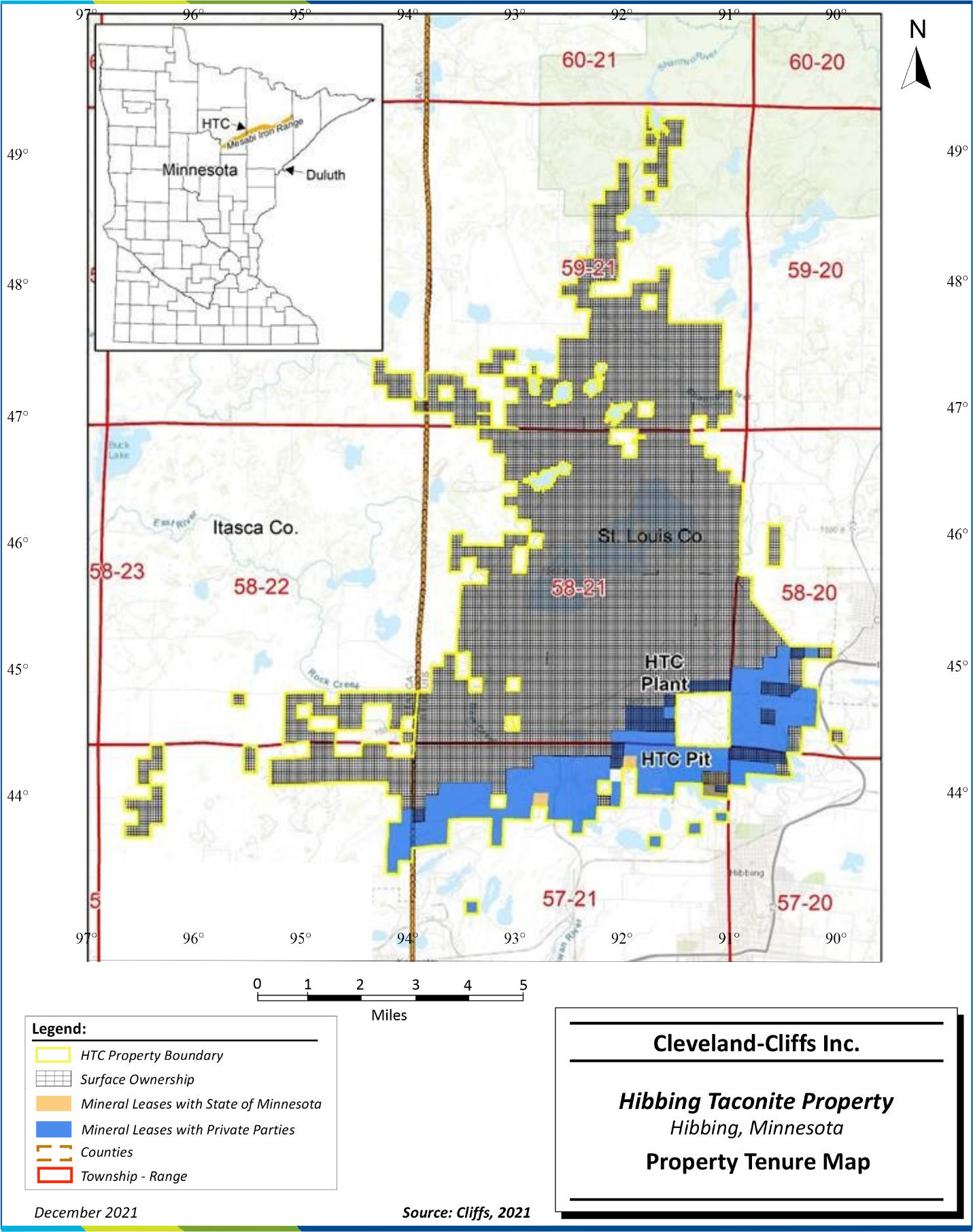

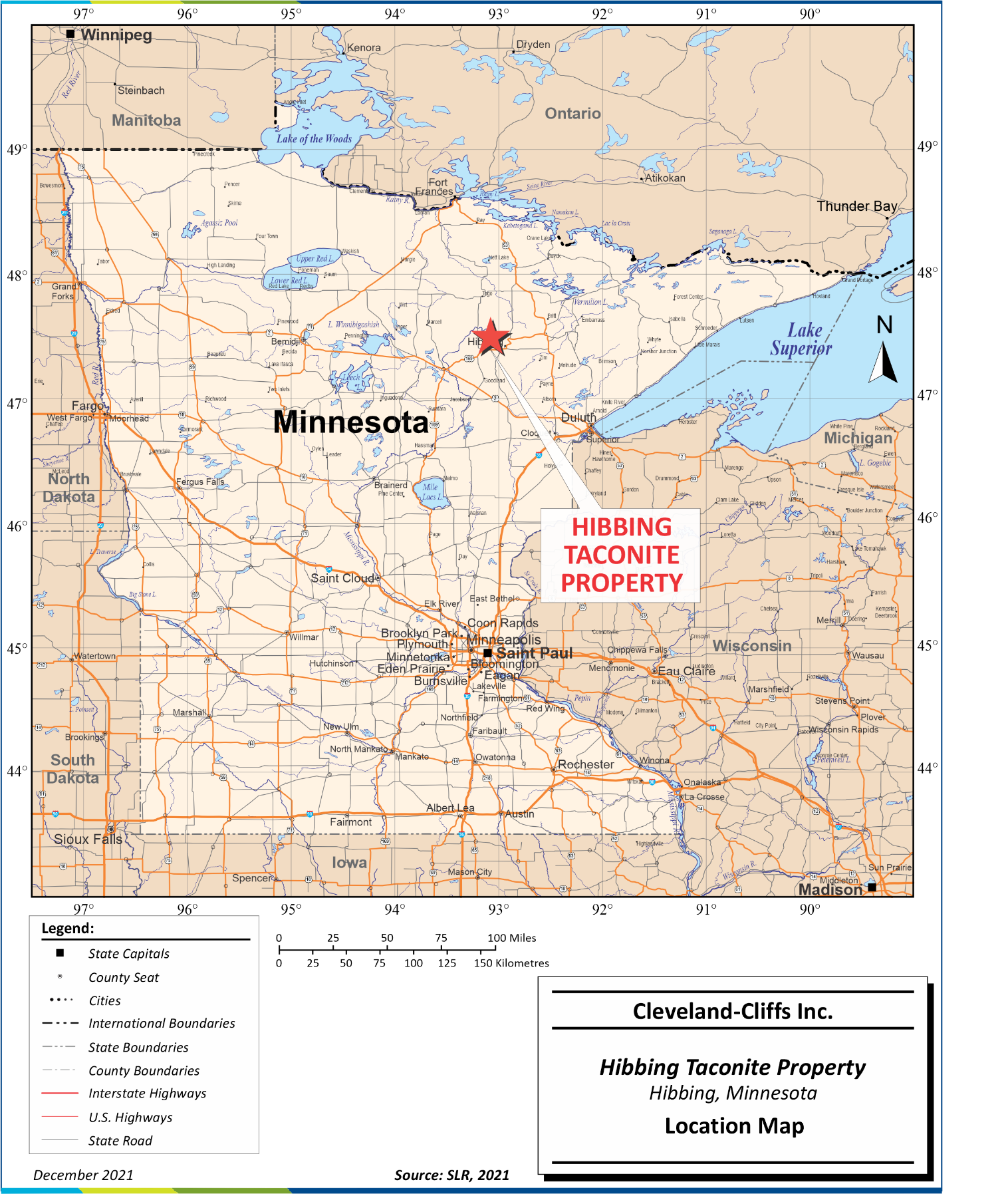

The Property is located in St. Louis and Itasca Counties in Northeastern Minnesota, USA, on the Mesabi Iron Range, immediately north of the city of Hibbing, Minnesota. The open pit is also known historically as the Hull-Rust-Mahoning Mine and, based on its historical production, is the largest operating open-pit mine in Minnesota. The mining and processing operation and TSF are located between latitude 47°25’48” N and 47°31’48” N and longitude 93°04’54” W and W 92°54’36” W. The Mine and Plant have the capacity to produce approximately 8.0 MWLT of iron ore pellets annually.
Hibbing Taconite is a joint venture between Cliffs (85.3%) and U.S. Steel (14.7%). Hibbing Taconite controls 36,280 acres in a combination of mineral and surface rights through ownership and lease and is the operator of the mine, process plant, and rail loading facility. The Property boundary comprises
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    7



approximately 6,420 acres of mineral leases granted by private landowners and 220 acres granted by the State of Minnesota.
1.3.2Accessibility, Climate, Local Resources, Infrastructure, and Physiography
The Property is easily accessed via paved roads from Hibbing, Minnesota by Highway 169, four miles north toward Chisholm to County Highway 5, then 2.3 mi north on Highway 5 to the mine access road, and two miles west to the facilities on the Hibbing Taconite complex road. Duluth, a major port city on Lake Superior, is 76 mi southeast of the Property via US Highway 53 and MN Highway 37. Duluth has a regional airport with several flights daily to major hubs in Minneapolis and Chicago. A rail line operated by Burlington Northern Santa Fe Railway (BNSF) extends from the processing facility to the port in Superior, Wisconsin.
The climate in Northern Minnesota ranges from mild in the summer to winter extremes. The annual average temperature is 36.9°F. The annual average high temperature is 48.6°F, whereas the annual average low temperature is 25.1°F. By month, July is on average the hottest month (77°F), and January is the coldest (-4°F).
The HibTac operation employs 733 employees who live in the surrounding cities of Hibbing, Chisholm, Virginia, Mountain Iron, Eveleth, Buhl, Biwabik, Hoyt Lakes, and Aurora. Personnel also commute from Duluth and the Iron Range. St. Louis County has an estimated population of approximately 200,000 people.
The Property is located in a historically important, iron-producing region of Northeastern Minnesota. All the infrastructure necessary to mine and process significant commercial quantities of iron ore is currently in place. Infrastructure items include high-voltage electrical supplies, natural gas pipelines that connect to the North American distribution system, water sources, paved roads and highways, railroads for transporting finished products, port facilities that connect to the Great Lakes, and accommodations for employees. Local and State infrastructure also includes hospitals, schools, airports, equipment suppliers, fuel suppliers, commercial laboratories, and communication systems.
The Property is located at an elevation of approximately 1,400 ft above sea level (FASL), just east of the Itasca County line. The generally gentle topography in the area is punctuated by hummocky hills and long, gentle moraines, remnants of glacial ingress and egress. The landscape ranges from semi-rugged, lake-dotted terrain with thin glacial deposits over bedrock, to hummocky or undulating plains with deep glacial drift, to large, flat, poorly drained peatlands. The MDNR characterizes the area as being within the Laurentian Mixed Forest (LMF) Province. In Minnesota, the LMF is characterized by broad areas of conifer forest, mixed hardwood and conifer forests, and conifer bogs and swamps.
1.3.3History
Exploration for high-grade, direct-shipping iron ore (DSO) deposits in the Hibbing area began in the 1890s. Focused exploration for beneficiation-grade magnetite deposits, regionally known as taconite deposits, however, did not begin until the 1940s. HibTac has operated as a joint venture among several companies since 1976.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    8



1.3.4Geological Setting, Mineralization, and Deposit
The HibTac deposit is an example of Lake Superior-type BIF deposits, specifically the Biwabik Iron Formation (Biwabik IF), which is interpreted to have been deposited in a shallow, tidal, marine setting and is characterized as having four main members (from bottom to top): Lower Cherty, Lower Slaty, Upper Cherty, and Upper Slaty. Cherty units generally have a sandy granular texture, are thickly bedded, and are predominantly composed of chert, magnetite, iron silicates (talc, stilpnomelane), and, in specific geologic units, carbonate (ankerite). Slaty units are fine grained, thinly bedded, and comprised of iron silicates and iron carbonate, with local chert beds, and they are typically uneconomic. The mineral targeted at HibTac is magnetite. Supergene weathering and oxidation has locally altered the primary assemblage to hematite, goethite, and chert, generally increasing in intensity with proximity to isolated occurrences of Cretaceous Coleraine Formation south of the mine and faults or fracture zones. Partial or complete oxidation of magnetite to hematite precludes recovery by magnetic separation, resulting in local degradation of potential ore intervals to waste rock. The nomenclature of the members is not indicative of metamorphic grade; instead, "slaty" and "cherty" are colloquial descriptive terms used regionally.
1.3.5Exploration
Diamond drilling (DD) is the principal method of exploration utilized at HibTac. A combination of historical and current DD core drilled by Cliffs and its predecessors is used in mine planning. Near-mine exploration drilling is conducted on a 400 ft x 400 ft grid. Since drilling began in 1938, Cliffs and its predecessors have completed 3,665 DD drill holes totaling 620,670 ft.
1.3.6Mineral Resource Estimates
Mineral Resource estimates for the HibTac deposit were prepared by Cliffs and audited and accepted by SLR using available data from 1938 to 2019.
The 2021 HibTac Mineral Resource estimate was completed using a conventional block modeling approach. The general workflow included the construction of a geological or stratigraphic model representing the Biwabik IF from mapping, drill hole logging, and sampling data, which were used to define discrete domains and surfaces representing the upper contact of each unit of non-iron formation and iron formation subunits. The geologic model was then imported into Maptek’s Vulcan™ (Vulcan) software by Cliffs for resource estimation. Sub-blocked model estimates used inverse distance squared (ID2) and length-weighted, 10 ft, uncapped composites to estimate KEVs, including magnetic iron (determined by Saturation Magnetization Analyzer [Satmagan]), wtrec, and silica in concentrate in an omni-directional single search pass approach, using hard boundaries between subunits, ellipsoidal search ranges, and a search ellipse orientation informed by geology. Density for the iron formation is calculated in the block model as a function of Satmagan crude magnetic iron and total iron content.
Mineral Resources were classified in accordance with the definitions for Mineral Resources in S-K 1300. Blocks were classified as Measured, Indicated, or Inferred using distance-based and qualitative criterion. Cliffs classifies the Mineral Resources based primarily on drill hole spacing and influenced by geologic continuity, ranges of economic criteria, and reconciliation. Some post-processing is undertaken to ensure spatial consistency and to remove isolated and fringe blocks. The resource area is limited by a polygon and subsequent pit shell based on practical mining limits. A block of mineralized material is classified as Measured if the distance to the nearest drill hole is within 400 ft and estimated with
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    9



interpolation pass 1. If the nearest drill hole is between 400 ft and 1,200 ft and estimated in pass 2, it is classified as Indicated. All remaining blocks are classified as Inferred; they are considered waste and excluded from the Mineral Resource estimate.
Estimates were validated using standard industry techniques including visual grade comparisons, reviews of block model coding, and statistical reviews of the global accuracy of the estimated variables and evaluation of the local accuracy through the preparation of comparative statistics.
To ensure that all Mineral Resource statements satisfy the “reasonable prospects for eventual economic extraction” requirement, the Mineral Resource estimate for HibTac considered factors significant to technical feasibility and potential economic viability. Mineral Resources were defined and constrained within LOM phase units prepared by Cliffs. Table 1-5 summarizes the estimates of Mineral Resources for the operating areas and developed projects of HibTac as of December 31, 2021.
Table 1-5:    Summary of HibTac Mineral Resources – December 31, 2021
Cleveland-Cliffs Inc. – Hibbing Taconite Property
ClassCrude Ore Mineral ResourcesCrude Ore MagFeProcess RecoveryPelletsCliffs Attributed BasisCliffs Crude Ore Mineral ResourcesCliffs Pellets
(MLT)(%)(%)(MWLT)(%)(MLT)(MWLT)
Measured10.119.225.4%2.685.38.62.2
Indicated0.618.725.0%0.185.30.50.1
Total Measured + Indicated10.719.225.4%2.785.39.12.3
Notes:
1.Tonnage is reported in long tons equivalent to 2,240 lb.
2.Mineral Resources are reported exclusive of Mineral Reserves and have been rounded to the nearest 100,000.
3.Mineral Resource estimates are based on a cut-off grade formula dependent on a few variables and restricted to material greater than 13% MagFe.
4.Classification of Mineral Resources is in accordance with the S-K 1300 classification system.
5.Bulk density is calculated based on magnetic iron and total iron content.
6.Mineral Resources are 85.3% attributable to Cliffs and 14.7% attributable to U.S. Steel.
7.Mineral Resources that are not Mineral Reserves do not have demonstrated economic viability.
8.Numbers may not add due to rounding.
Resource estimates take account of the minimum block size that can be selectively extracted. Mineral Resources are exclusive of Mineral Reserves and are reported at a 13% MagFe cut-off grade. Mining recovery is typically 100%, although the grade tends to be diluted by 1% MagFe due to geological conditions and mining practices.
The SLR QP is of the opinion that, with consideration of the recommendations summarized in this section, any issues relating to all relevant technical and economic factors likely to influence the prospect of economic extraction can be resolved with further work.
1.3.7Mineral Reserve Estimates
Mineral Reserves in this TRS are derived from the current Mineral Resources. The Mineral Reserves are reported as crude ore and are based on open pit mining from the Hibbing Mine. Crude ore is the unconcentrated ore as it leaves the mine at its natural in situ moisture content. The Proven and
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    10



Probable Mineral Reserves for HibTac are estimated as of December 31, 2021 and summarized in Table 1-6.
Table 1-6:    Summary of HibTac Mineral Reserves – December 31, 2021
Cleveland-Cliffs Inc. – Hibbing Taconite Property
Crude Ore Mineral Reserves
(MLT)
Crude Ore
MagFe
(%)
Process Recovery
(%)
Wet Pellets
(MLT)
Cliffs Attributed Basis (%)Cliffs Crude Ore Mineral Reserves (MLT)Cliffs Wet Pellets (MLT)
Proven100.118.725.425.585.385.421.7
Probable9.118.725.62.385.37.82.0
Proven & Probable109.318.725.527.885.393.223.7
Notes:
1.Tonnage is reported in long tons equivalent to 2,240 lb and has been rounded to the nearest 100,000.
2.Mineral Reserves are estimated based on a cut-off grade formula dependent on a few variables and restricted to material greater than 13% MagFe.
3.The Mineral Reserve mining stripping ratio (waste units to crude ore units) is at 1.0.
4.Pellets are reported as a wet standard equivalent containing 65% Fe.
5.Tonnage estimate based on December 31, 2021 production depletion from surveyed topography on June 15, 2021.
6.Mineral Reserve tons are as delivered to the primary crusher; pellets are as loaded onto lake freighters in Superior, Wisconsin.
7.Classification of the Mineral Reserves is in accordance with the S-K 1300 classification system.
8.Mineral Reserves are 85.3% attributable to Cliffs and 14.7% attributable to U.S. Steel.
9.Numbers may not add due to rounding.
SLR is not aware of any risk factors associated with, or changes to, any aspects of the modifying factors such as mining, metallurgical, infrastructure, permitting, or other relevant factors that could materially affect the Mineral Reserve estimate.
1.3.8Mining Methods
HibTac is mined using conventional surface mining methods. The Mine requires large 200-plus ton mining trucks, and some areas of the pit require long hauls. The surface operations include:
Clearing and grubbing
Overburden (glacial till) removal
Drilling and blasting (excluding overburden)
Loading and haulage
The Mineral Reserve is based on the ongoing annual average ore production of 21.9 MLT from the Group I, II, III, IV, and V pits, producing an average of 5.6 MLT/y of wet pellets for domestic consumption. The HibTac operations have no current expansion plans and are likely to cease operating once the reserves are depleted by 2026.
Mining and processing operations are scheduled 24 hours per day, and the mine production is scheduled to directly feed the processing operations.

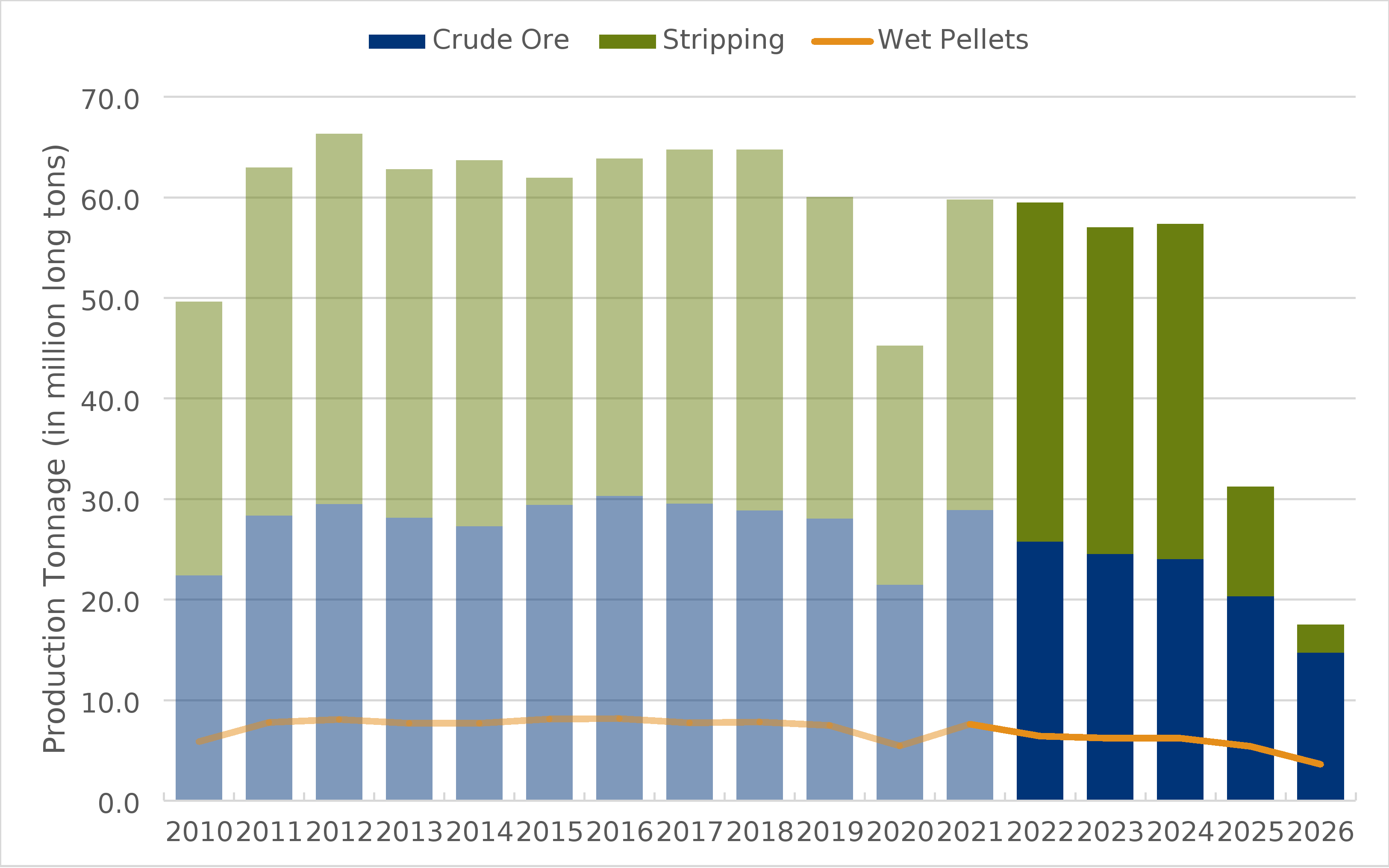

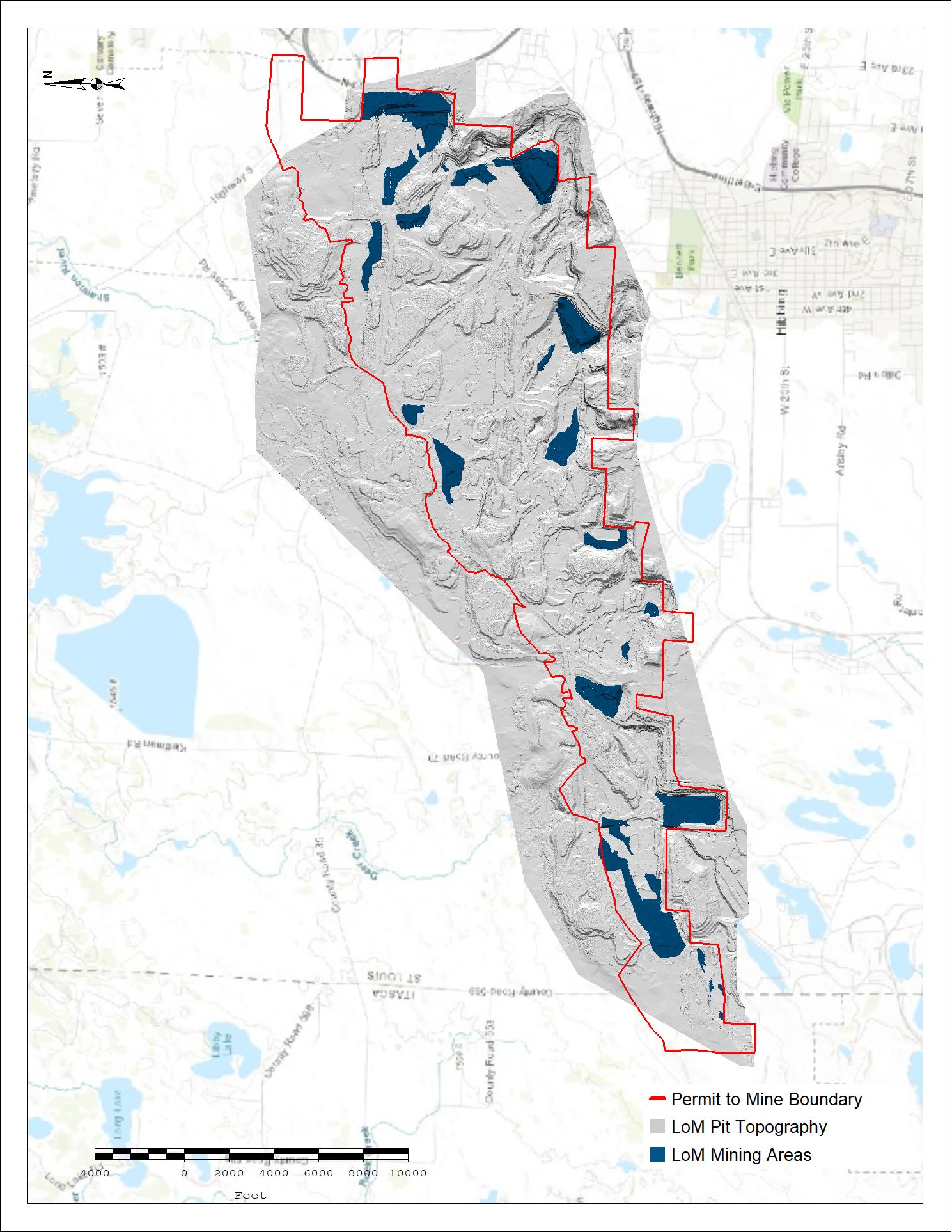

The current LOM plan has mining scheduled for five years and mines the known Mineral Reserve. The average stripping ratio is 1.0 waste units to 1 crude ore unit (1.0 stripping ratio).
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    11

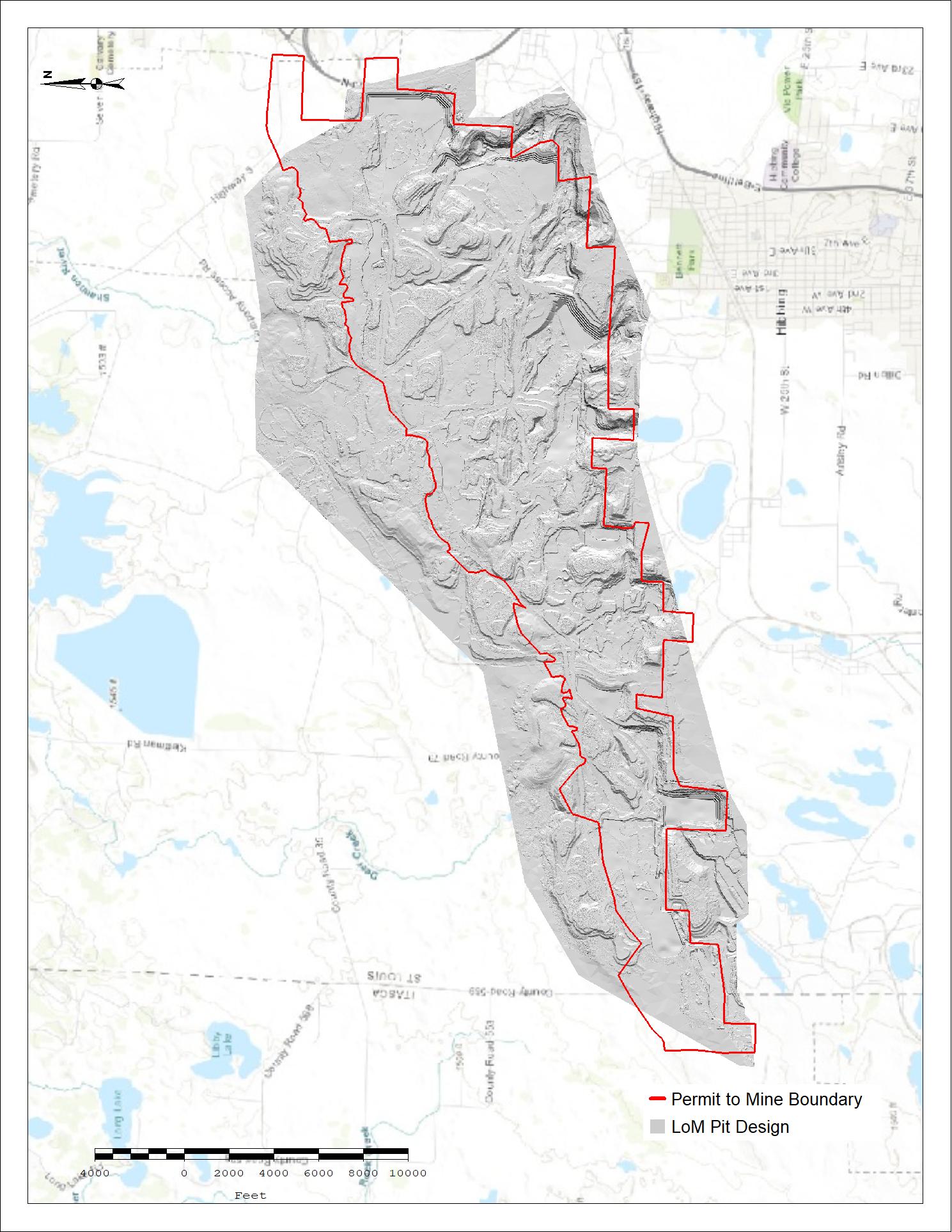

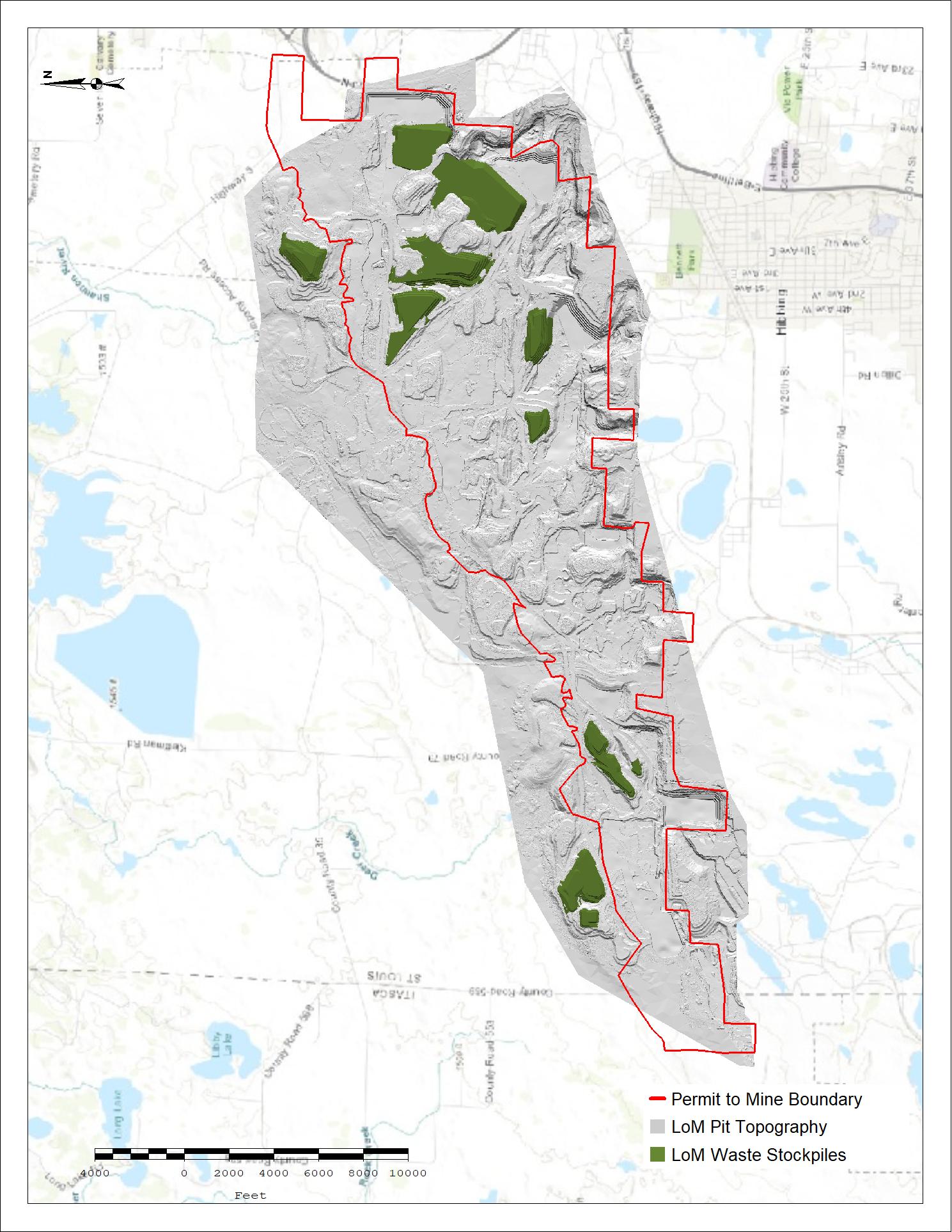

There are 20 mining pits/phases with varying dimensions, with a maximum depth of approximately 600 ft attained in two of the pits/phases.
Primary production for all mine pits includes drilling 16.00 in.-diameter rotary blast holes. A production blast hole of 40 ft depth is drilled. Burden and spacing varies depending on the material being drilled. The holes are filled with explosive and blasted. A combination of front-end loaders (FEL) and electric shovels load the broken material into 240 ton-payload mining trucks for transport from the pit.
The Mine follows strict crude ore blending requirements to ensure that the Plant receives a uniform head grade. Generally, three groupings of geological subunits are mined at one time to obtain the best blend for the Plant. Operationally, blending is done on a shift-by-shift basis. Sixteen ore characteristics are tracked. Magnetic susceptibility probing of blast holes delineates zones of oxidized waste rock. Crude ore is hauled to the crushing facility and either direct tipped to the primary crusher or stockpiled in an area adjacent to the primary crusher. Haul trucks are alternated to blend delivery from the multiple crude ore loading points. The crude ore stockpiles are used as an additional source for blending and production efficiency.
The major pieces of pit equipment include electric shovels, FELs, haul trucks, drills, bulldozers, and graders. Extensive maintenance facilities are available at the mine site to service mine equipment and the rail fleet.
1.3.9Processing and Recovery Methods
Three ore types are blended at HibTac and delivered to the crushing plant. Two Allis Chalmers gyratory crushers crush ROM ore to grinding mill feed size, which is conveyed to a 450,000-ton, crushed-ore stockpile (COSP). Crushed ore is reclaimed from the COSP to the concentrator. The concentrator consists of nine autogenous grinding (AG) and magnetic separation process lines, beginning with 36 ft-diameter x 15 ft EGL AG mills. The AG mills feed rougher magnetic separators, which produce a rougher magnetic concentrate and a non-magnetic tailing. The rougher magnetic concentrate is pumped to hydrocyclones for classification. The cyclone underflow slurry is returned to the AG mill for additional grinding, and the cyclone overflow slurry is pumped to finisher magnetic separators. The finisher magnetic separator product is pumped to the finisher product screens, and the screen undersize is final concentrate reporting to the concentrate thickener.
Concentrate is thickened and then pumped to agitated storage tanks in the pelletizing plant prior to filtration. Concentrate is filtered using vacuum disc filters and blended with bentonite prior to pelletizing to produce standard compression pellets. When high-compression pellets are required, limestone is added in addition to the bentonite.
The filter cake is transported by belt conveyors to the pellet plant concentrate bins. The concentrate is rolled in balling drums to produce green balls and sized using roll screens. Travelling grate furnaces are used for drying, preheating, and firing the pellets. Pellets discharged from the indurating furnaces are the final product and are conveyed to the pellet load-out bins or to the emergency stockpile.
1.3.10Infrastructure
The Property is in a historically important, iron-producing region of Northeastern Minnesota. All the infrastructure necessary to mine and process significant commercial quantities of iron ore is in place.
Infrastructure items include:
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    12



Mine and Plant concentrator facilities near Hibbing, Minnesota.
Power is supplied to the site by Minnesota Power. The site load is approximately 167 MW.
Natural gas supplied by Northern Natural Gas from pipelines that connect into the North American distribution system.
The water for mining and processing operations is provided by makeup water from the Scranton and Morton pits and recycled water from the TSF. The makeup water is provided at approximately 5,000 gpm by pit pumps. The source of makeup water is adjusted based on the mine plan. The reclaim water from the tailings is used for process water at the Plant. The water supply is more than adequate, especially considering that the mine is in a net positive water situation requiring daily discharge of excess water from pit dewatering.
Paved roads and highways.

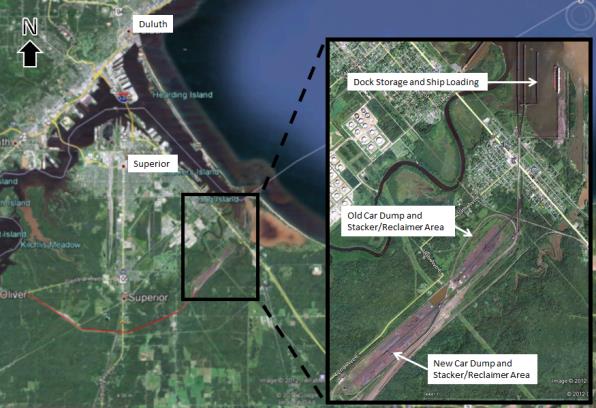

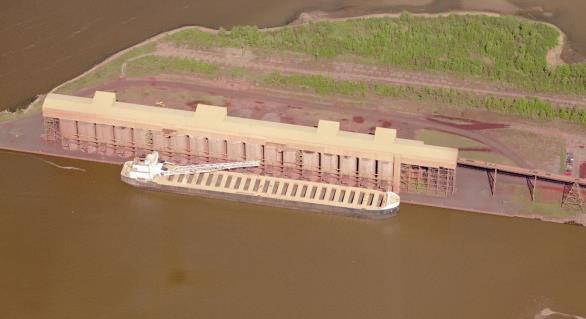

Finished taconite pellets are transported by BNSF Rail to its Allouez Taconite Facility in Superior, Wisconsin, approximately 90 mi from the Plant facilities.
The port is controlled and operated by BNSF Rail and includes pellet screening, 72,000 LT of pellet storage, and ship loading either directly from rail cars to ship or from stockpiles to ship. The vessels are 25,000 LT- to 55,000 LT-capacity lakers that transport pellets to steel mills on the Great Lakes.
Rail yards and workshops are operated by BNSF Rail.
TSF.
Accommodations for employees.
Local and State infrastructure also includes hospitals, schools, airports, equipment suppliers, fuel suppliers, commercial laboratories, and communication systems.
1.3.11Market Studies
Cliffs is the largest producer of iron ore pellets in North America. It is also the largest flat-rolled steel producer in North America. In 2020, Cliffs acquired two major steelmakers, AMUSA and AK Steel (AK), vertically integrating its legacy iron ore business with steel production and emphasis on the automotive end market.
Cliffs owns or co-owns five active iron ore mines in Minnesota and Michigan. Through the two acquisitions and transformation into a vertically integrated business, the iron ore mines are primarily now a critical source of feedstock for Cliffs’ downstream primary steelmaking operations. Based on its ownership in these mines, Cliffs’ share of annual rated iron ore production capacity is approximately 28.0 million tons, enough to supply its steelmaking operations and not have to rely on outside supply.
The importance of the steel industry in North America and specifically the USA is apparent by the actions of the US federal government by implementing and keeping import restrictions in place. It is important for middle-class job generation and the efficiency of the national supply chain. It is also an industry that supports the country’s national security by providing products used for US military forces and national infrastructure. Cliffs expects the US government to continue recognizing the importance of this industry and does not see major declines in the production of steel in North America.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    13



HibTac pellets are shipped to Cliffs’ steelmaking facilities in the Midwestern USA. For cash flow projections, Cliffs uses a blended pellet revenue rate of $98/WLT Free on Board (FOB) Mine based on a three-year trailing average for 2017 to 2019. Based on macroeconomic trends, SLR is of the opinion that Cliffs pellet prices will remain at least at the current three-year trailing average of $98/WLT or above for the next five years.
1.3.12Environmental Studies, Permitting and Plans, Negotiations, or Agreements with Local Individuals or Groups
Hibbing Taconite indicated that it presently has the requisite operating permits for the operation of the Mine and Plant and estimates the mine life to be five years. These permits include county, state, and federal permits related to air quality, surface water quality, water appropriation, hazardous waste generation, and wetlands. Multiple permits are planned to support future operations including an amendment to the Permit to Mine. Environmental monitoring and reporting during operations primarily include water and air quality monitoring.
Closure plans and other post-mining plans are required to be prepared at least two years prior to the anticipated closure; however, Cliffs conducts an in-depth review every three years to ensure that the asset retirement obligation legal liabilities are accurately estimated based on current laws, regulations, facility conditions, and cost to perform services. These cost estimates are conducted in accordance with the Financial Accounting Standards Board (FASB) Accounting Standards Codification (ASC) 410.
With respect to community agreements, HibTac is located in close proximity to the towns of Hibbing and Chisholm, Minnesota. Cliffs employs a public relations expert who is located in Forbes, Minnesota, only 30 mi away from HibTac, with the goal of responding to residents’ complaints in a systematic manner. Hibbing Taconite has an ongoing lease agreement with the City of Hibbing’s Public Utilities Department that provides access to Hibbing Taconite-owned property where the city operates a well. In 2017, Hibbing Taconite executed a land swap agreement with the City of Hibbing that was part of a plan to relocate the community’s mine overlook and educational center so mining activities could commence at the former location (which was located on the HibTac Property) without significantly impacting the community.
1.3.13Capital and Operating Cost Estimates
Sustaining capital expenditure estimates for the remaining LOM are presented in Table 1-7. Additional concurrent closure expenditures are associated with Hibbing Taconite’s decision to move to a more conservative method of TSF design with the addition of downstream fill to strengthen the dam cross-section.
Table 1-7:    LOM Capital Costs
Cleveland-Cliffs Inc. – Hibbing Taconite Property
TypeValuesTotal20222023202420252026
Sustaining$ millions27.015.47.92.41.30.1
Concurrent Closure$ millions29.418.810.7
Total$ millions56.534.218.62.41.30.1
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    14



Operating costs are based on a full run rate with a combination of both standard and flux production consistent with what is expected for the LOM. A LOM average operating cost of $75.29/WLT pellet is estimated over the remaining five years of the LOM and is shown in Table 1-8.
Table 1-8:    LOM Operating Costs
Cleveland-Cliffs Inc. – Hibbing Taconite Property
DescriptionLOM
($/WLT Pellet)
Mining19.87
Processing34.57
Site Administration2.30
Pellet Transportation and Storage10.35
General / Other8.20
Operating Cash Cost75.29
Cliffs’ forecasted capital and operating cost estimates are derived from annual budgets and historical actuals over the long life of the current operation. According to the American Association of Cost Engineers (AACE) International, these estimates would be classified as Class 1, with an accuracy range of -3% to -10% to +3% to +15%.

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    15



2.0INTRODUCTION
SLR Consulting Ltd (SLR) was retained by Cleveland-Cliffs Inc. (Cliffs) to prepare an independent Technical Report Summary (TRS) for the Hibbing Taconite Property (HibTac or the Property), located in Northeastern Minnesota, USA. The owner of the Property, Hibbing Taconite Company (Hibbing Taconite), is a joint venture (JV) between subsidiaries of Cliffs (85.3% ownership) and U.S. Steel Corporation (U.S. Steel) (14.7%). The Property is managed by Cleveland-Cliffs Hibbing Management LLC, a wholly owned subsidiary of Cliffs.
The purpose of this TRS is to disclose December 31, 2021 Mineral Resource and Mineral Reserve estimates for HibTac.
Cliffs is listed on the New York Stock Exchange (NYSE) and currently reports Mineral Reserves of pelletized ore in SEC filings. This TRS conforms to the United States Securities and Exchange Commission’s (SEC) Modernized Property Disclosure Requirements for Mining Registrants as described in Subpart 229.1300 of Regulation S-K, Disclosure by Registrants Engaged in Mining Operations (S-K 1300) and Item 601 (b)(96) Technical Report Summary.
The Property includes the Hibbing Taconite Mine (the Mine) and processing facility (the Plant) in Hibbing, Minnesota. The Mine is a large, operating, open-pit iron mine that produces pellets from a magnetite iron ore regionally known as taconite.
The Property commenced operations in 1976 as a JV between Bethlehem Steel Corporation (Bethlehem) (75%), Pickands Mather and Co. (Pickands Mather) (15%), and Steel Company of Canada (Stelco) (10%). Cliffs first became involved in the JV when it purchased Pickands Mather’s 15% share of the JV in 1986 and another 8% share from Bethlehem in 2002. In 2003-2004, ArcelorMittal USA (AMUSA) acquired Bethlehem’s 62% share and became the largest shareholder of the JV. Cliffs managed the JV through a subsidiary until 2019 when AMUSA assumed control of the operation. In 2020, Cliffs acquired the US assets of AMUSA and again became the operator of the Property.
The open-pit operation has a mining rate of approximately 24 million long tons (MLT) of ore per year and produces 6.2 MWLT of iron ore pellets.
2.1Site Visits
SLR Qualified Persons (QPs) visited the Property on April 28, 2021. The SLR team all toured the tailings basin, plant laboratory, concentrator and pelletizing facilities plus rail pellet load-out site, and the mine offices and operational areas.
2.2Sources of Information
Technical documents and reports on the Property were obtained from Cliffs’ personnel. During the preparation of this TRS, discussions were held with personnel from Cliffs:
Kurt Gitzlaff, Director – Mine Engineering, Cliffs Technical Group (CTG)
Michael Orobona, Principal Geologist, CTG
Adam Schaum, Lead Mine Engineer, CTG
Scott Gischia, Director – Environmental Compliance
Dean Korri, Director –Basin & Civil Engineering
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    16



Tushar Mondhe, Senior Manager – Operations and Capital Operations Finance
Ralland Hess – Area Manager, Mine
Angela Schwenk – Section Manager, Mine Engineering
Daniel Aagenes – Area Manager, Plant
Corie Ekholm – Section Manager, Plant Technical Services
Wade Hansen, Concentrator Operations
Zachary Wheaton, Pellet Plant Operations
Phillip Larson, Mine Geologist
Tasha Niemi – Area Manager, Environmental
This TRS was prepared by SLR QPs. The documentation reviewed, and other sources of information, are listed at the end of this report in Section 24, References.

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    17



2.3List of Abbreviations
The U.S. System for weights and units has been used throughout this report. Tons are reported in long tons (LT) of 2,240 lb unless otherwise noted. All currency in this report is US dollars (US$ or $) unless otherwise noted.
Abbreviations and acronyms used in this TRS are listed below.
Unit AbbreviationDefinitionUnit AbbreviationDefinition
aannumLT/dlong tons per day
AampereLT/hlong tons per hour
acfmactual cubic feet per minuteMmega (million); molar
bblbarrelsMaone million years
BtuBritish thermal unitsMBtuthousand British thermal units
ddayMCFmillion cubic feet
°F
degree FahrenheitMCF/hmillion cubic feet per hour
faslfeet above sea levelmimile
ftfootminminute
ft2
square footMLT/ymillion long tons per year
ft3
cubic footMPamegapascal
ft/sfoot per secondmphmiles per hour
ggramMVAmegavolt-amperes
Ggiga (billion)MWmegawatt
Gaone billion yearsMWhmegawatt-hour
galgallonMWLTmillion wet long tons
gal/dgallon per dayozTroy ounce (31.1035g)
g/cm3
grams per cubic centimeteroz/tonounce per short ton
g/Lgram per literppbpart per billion
g/ygallon per yearppmpart per million
gpmgallons per minutepsiapound per square inch absolute
hphorsepowerpsigpound per square inch gauge
hhourrpmrevolutions per minute
HzhertzRLrelative elevation
in.inchssecond
in2
square inchtonshort ton
Jjoulestpashort ton per year
kkilo (thousand)stpdshort ton per day
kg/m3
Kilogram per cubic metertmetric tonne
kVAkilovolt-amperesUS$United States dollar
kWkilowattVvolt
kWhkilowatt-hourWwatt
kWLTthousand wet long tonswt%weight percent
LliterWLTwet long ton
lbpoundyyear
LTlong or gross ton equivalent to 2,240 pounds
yd3
cubic yard
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    18



AcronymDefinition
AAatomic absorption
AACEAmerican Association of Cost Engineers
AGautogenous grinding
AISTAssociation for Iron & Steel Technology
AKAK Steel
AMUSAArcelorMittal USA
ANFOammonium nitrate fuel oil
ANSIAmerican National Standards Institute
ARDacid rock drainage
AROasset retirement obligation
ASCAccounting Standards Codification
ASQAmerican Society for Quality
ASTMAmerican Society for Testing and Materials
ATFBureau of Alcohol, Tobacco, Firearms and Explosives
BFblast furnace
BFAbench face angle
BHbench height
BIFbanded iron formation
BLSUnited States Bureau of Labor Statistics
CBOD5carbonaceous biochemical oxygen demand, 5 day test
CCDcounter-current decantation
CCPConceptual Closure Plan
CERCLAComprehensive Environmental Response, Compensation, and Liability Act
CFRCost and Freight
COAcertificates of analysis
CRIRSCOCommittee for Mineral Reserves International Reporting Standards
CSSclosed-side setting
CTWcalculated true width
D&Adepreciation and amortization
DCFdiscounted cash flow
DDdiamond core drilling
DRIdirect reduced iron
DSOdirect-shipping iron ore
DTDavis Tube
EAFelectric arc furnace
EAPEmergency Action Plan
EISEnvironmental Impact Statement
EMPEnvironmental Management Plan
EMSenvironmental management system
EPAUnited States Environmental Protection Agency
EPRTExternal Peer Review Team
ESOPEnvironmental Standard Operating Procedures
EOREngineer of Record
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    19



FASBFinancial Accounting Standards Board
FELfront-end loader
FOBFree on Board
FoSfactor of safety
GHGgreenhouse gas
GIMGeoscientific Information Management
GPSglobal positioning system
GSIGeological Strength Index
GSSIGeneral Security Services Corporation
HBIHot briquetted iron
HRChot-rolled coil
HTWhorizontal true width
ID2
Inverse distance squared
ID3
Inverse distance cubed
IFiron formation
ICFMinlet air capacity
IIMAInternational Iron Metallics Association
IRAinter-ramp angle
IRRInternal Rate of Return
ISOInternational Standards Organization
KEVkey economic variables
LGLerchs-Grossmann
LiDARlight imaging, detection, and ranging
LISLiberation Index Study
LLPLerch Laboratory Procedures
LMFLaurentian Mixed Forest
LOMlife of mine
MACMining Association of Canada
MDHMinnesota Department of Health
MDNRMinnesota Department of Natural Resources
MLTmillion long tons
MPCAMinnesota Pollution Control Agency
MPUCMinnesota Public Utilities Commission
MRmoving range
MRCCMidwestern Regional Climate Center
MTPMain Tailing Pumphouse
MTWmeasured true width
NADNorth American Datum
NESHAPNational Emission Standards for Hazardous Air Pollutants
NGOnon-governmental organization
NGVDNational Geodetic Vertical Datum
NISTNational Institute of Standards and Technology
NNGNorthern Natural Gas
NOAANational Oceanic and Atmospheric Administration
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    20



NOLANuclear On-Line Analyzer
NPDESNational Pollution Discharge Elimination System
NPVNet Present Value
NRRINatural Resources Research Institute
NSMNorthshore Mining Company
OBMOre Base Metallics
OMSOperations, Maintenance and Surveillance
PLCProgrammable Logic Controller
PMFprobable maximum flood
POKPokegama Quartzite
PSDPrevention of Significant Deterioration
QA/QCquality assurance and quality control
QPQualified Person
RCrotary circulation drilling
RCRAResource Conservation and Recovery Act
RMA
reduced major axis
ROMrun of mine
RPDrelative percent difference
RQDRock Quality Designation
RTRrisk and technology review
SDSState Disposal System
SECUnited States Securities and Exchange Commission
SGspecific gravity
SMUselective mining unit
SQLStructured Query Language
SPCstatistical process control
SPTstandard penetration testing
TMDLTotal Maximum Daily Load
TRSTechnical Report Summary
TSFtailings storage facility
TSPtotal suspended particulates
TRIRtotal recordable incident rate
UCSuniaxial compressive strength
USACEUnited States Army Corps of Engineers
USGSUnited States Geological Survey
XRFx-ray fluorescence
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    21



3.0PROPERTY DESCRIPTION
3.1Property Location
The Property is located in St. Louis and Itasca Counties in Northeastern Minnesota, USA, on the Mesabi Iron Range, immediately north of the town of Hibbing, Minnesota. The open pit is also known historically as the Hull-Rust-Mahoning Mine and, based on its historical production, is the largest operating open-pit mine in Minnesota. The mining and processing operation and tailings storage facility (TSF) are located in the center of the Mesabi Iron Range Mining District between longitude W 93°03’ and W 92°54’ 36” and latitude N 47°25’ 48” and N 47°31’ 48”. Figure 3-1 shows the location of the Property. The Mine and Plant have the capacity to produce approximately 8.0 MWLT of iron ore pellets annually.
3.2Land Tenure
Hibbing Taconite controls 36,280 acres in a combination of mineral leases, surface leases, and owned property and is the operator of the mine, process plant, and rail loading facility.
3.2.1Mineral Rights
The Property Boundary comprises approximately 6,420 acres of mineral leases granted by private landowners and 220 acres granted by the State of Minnesota as illustrated in Figure 3-2. Mineral leases generally include surface rights. Where the mineral leases do not include surface mining rights, Hibbing Taconite controls the surface through ownership or surface leases with the owner of the surface. Approximately 1,150 acres of owned property is associated with the mineral lease acreage.
As shown in Table 3-1, Hibbing Taconite mineral leases expire between 2022 and 2056, with a number of leases that expire during the remaining five-year mine life. No scheduled mining activity on any of those leases will take place after their expiration date and all include time for proper reclamation.
In order to maintain the mineral leases until expiration, Hibbing Taconite must continue to make minimum prepaid royalty payments each quarter and pay property taxes. When mining occurs, a royalty is due per long ton of crude ore mined, or long ton of pellets produced from the crude ore mined; the royalty is payable to the respective lessors quarterly. Royalty rates per long ton fluctuate based on industry and economic indexes. Minimum prepaid royalty payments may be credited against royalties due when mining occurs. Specific terms and provisions of the mineral leases are confidential.
Table 3-1:    Property Mineral Leases
Cleveland-Cliffs Inc. – Hibbing Taconite Property
NameExpiration Date
Higgins (Red Cross)Holdover
State of Minnesota #5075-N, Lamberton3/18/2023
Day Lands12/31/2023
State 20634/11/2025
Penobscot12/30/2026
L&W Leetonia12/31/2026
Bennett-Longyear / Great Northern 50% (Ontario 50%)12/31/2026
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    22



NameExpiration Date
Bennett-Longyear #3, Ontario # 312/31/2026
Great Northern 100%12/31/2026
Morris-Burt12/31/2026
Morris12/31/2026
Mahoning1/1/2027
McClintock-Crosby12/31/2028
USSC Overriding12/31/2028
USSC Direct12/31/2028
Day Development8/1/2034
Pillsbury-Alexandria1/1/2037
Sargent #112/31/2037
Crosby, Wilson G. Trust12/31/2040
Sheridan12/31/2040
Winifred12/31/2040
Laura12/31/2040
Christine McClintock9/2/2041
McClintock-Kirby9/2/2041
Sargent #210/1/2041
Burt12/31/2041
Cyprus Rust12/31/2041
Rust Group I & Group II12/31/2041
Hull Group I & Group II1/1/2042
Galob11/21/2042
Greene4/12/2043
Wheeler6/30/2049
Gray Annex6/30/2049
Roy Mine5/1/2056
3.2.2Surface Rights
The Property consists of approximately 30,670 acres of owned property (1,150 acres associated with mineral leases) in and around HibTac as illustrated in Figure 3-2. To maintain ownership, the property taxes must be paid to St. Louis and Itasca Counties.
There are quarterly royalty payments made on the Hibbing Taconite mine mineral leases to multiple third parties. The details of the royalties are confidential between Hibbing Taconite and the lessors.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    23



Figure 3-1:    Property Location Map
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    24



Figure 3-2:    Property Mineral Tenure Map
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    25



3.3Encumbrances
Hibbing Taconite grants leases, licenses, and easements for various purposes including miscellaneous community land uses, utility infrastructure, and other third-party uses that encumber the Property but do not inhibit operations.
Cliffs has outstanding standby letters of credit, which were issued to back certain obligations of Hibbing Taconite, including certain permits and certain tailings basin projects. Additionally, Hibbing Taconite has and may continue to enter into lease agreements for necessary equipment used in the operations of the mine.
Hibbing Taconite has prepared an asset retirement obligation cost for the site of approximately US$143 million, which covers monitoring and maintenance, reclamation and revegetation, remediation, structure removal, and watershed restoration. This amount does not include costs for long-term water management at the tailings basin, namely post-closure seepage control.
3.4Royalties
Reference Section 3.2 of this TRS for royalty information. No overriding royalty agreements are in place.
3.5Other Significant Factors and Risks
No additional significant factors or risks are known.
SLR is not aware of any environmental liabilities on the Property. Cliffs has all required permits to conduct the proposed work on the Property. SLR is not aware of any other significant factors and risks that may affect access, title, or the right or ability to perform the proposed work program on the Property.


Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    26



4.0ACCESSIBILITY, CLIMATE, LOCAL RESOURCES, INFRASTRUCTURE AND PHYSIOGRAPHY
4.1Accessibility
The Property is easily accessed via paved roads from Hibbing, Minnesota by Highway 169, four miles north toward Chisholm to County Highway 5, then 2.3 mi north on Highway 5 to the mine access road, and two miles west to the facilities on the Hibbing Taconite complex road. Duluth, a major port city on Lake Superior, is 76 mi southeast of the Property via US Highway 53 and MN Highway 37. Duluth has a regional airport with several flights daily to major hubs in Minneapolis and Chicago. A rail line operated by Burlington Northern Santa Fe Railway (BNSF) extends from the Plant to the port in Superior, Wisconsin. Refer to Section 3.1 of this TRS and Figure 3-2 for the location of roads providing access to the Property.
4.2Climate
The climate in Northern Minnesota ranges from mild in the summer to winter extremes. The annual average temperature is 37oF. The annual average high temperature is 49°F, whereas the annual average low temperature is 25°F. July is on average the hottest month (77°F), and January is the coldest (-4°F) (National Oceanic and Atmospheric Administration [NOAA], 1991-2020). Table 4-1 presents complete climate data for the area for 1991 to 2020.
Table 4-1:    Northern Minnesota Climate Data (1991 to 2020)
Cleveland-Cliffs Inc. – Hibbing Taconite Property
MonthJanFebMarAprMayJunJulAugSepOctNovDecYear
Average high (°F)16.922.535.449.563.472.276.774.965.750.834.321.448.6
Daily mean (°F)6.210.523.837.149.558.963.561.65340.225.612.336.9
Average low (°F)−4.4−1.412.224.835.745.750.348.340.329.716.93.125.1
Precipitation (in.)0.510.530.911.612.764.363.853.093.062.351.090.6424.76
Snowfall (in.)157.17.83.7000001.213.212.360.3
Source: NOAA, 2021
Precipitation as rain in the Hibbing area ranges from less than one inch in December, January, and February, to approximately three to four inches per month during the summer, averaging approximately 25 in. annually. Annual snowfalls average 60 in. during November through March. Approximately half of the precipitation arrives during the summer months.
The Property is in production year-round.
4.3Local Resources
Labor is readily available in the Property area. Medical facilities with trauma centers are located in the cities of Virginia, Hibbing, and Duluth, Minnesota. Table 4-2 presents a list of the major population centers and their distance by road to the Property.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    27



Table 4-2:    Nearby Population Centers
Cleveland-Cliffs Inc. – Hibbing Taconite Property
City/TownMedical CenterPopulation 2010 CensusMileage to Site
Hibbing, MNLevel III16,36110
Gilbert, MNn/a1,79928
Eveleth, MNn/a3,71826
Virginia, MNLevel IV8,71223
Duluth, MNLevel I and II85,88480
Source U.S. Census Bureau, Google Maps
As of Q4 2021, the HibTac operation employs 733 employees who live in the surrounding cities of Hibbing, Chisholm, Virginia, Mountain Iron, Eveleth, Buhl, Biwabik, Hoyt Lakes, and Aurora. Personnel also commute from Duluth and the Iron Range. St. Louis County has an estimated population of approximately 200,000 people.
4.4Infrastructure
The Property is located in a historically important, iron-producing region of Northeastern Minnesota. All the infrastructure necessary to mine and process significant commercial quantities of iron ore is currently in place. Infrastructure items include high-voltage electrical supplies, natural gas pipelines that connect to the North American distribution system, water sources, paved roads and highways, railroads for transporting finished products, port facilities that connect to the Great Lakes, and accommodations for employees. Local and State infrastructure also includes hospitals, schools, airports, equipment suppliers, fuel suppliers, commercial laboratories, and communication systems. Additional information regarding HibTac supporting infrastructure can be found in Section 15 of this TRS.
4.5Physiography
The Property is located at an elevation of approximately 1,400 feet above sea level (FASL), just east of the Itasca County line. The mine and mineral leases are located in both St. Louis and Itasca counties. The generally gentle topography in the area is punctuated by hummocky hills and long gentle moraines, remnants of glacial ingress and egress. The landscape ranges from semi-rugged, lake-dotted terrain with thin glacial deposits over bedrock, to hummocky or undulating plains with deep glacial drift, to large, flat, poorly drained peatlands. Topography includes rolling till plains, moraines, and flat outwash plains formed by the Rainy Lobe glacier. Most striking is the Giants Range, a narrow bedrock ridge rising 200 ft to 400 ft above the surrounding area. Bedrock is locally exposed near terminal moraines but is generally rare.
The Minnesota Department of Natural Resources (MDNR) characterizes the area as being within the Laurentian Mixed Forest (LMF) Province, which covers over 23 million acres of northeastern Minnesota. In Minnesota, the Province is characterized by broad areas of conifer forest, mixed hardwood and conifer forests, and conifer bogs and swamps. Vegetation is a mixture of deciduous and coniferous trees. White pine-red pine forest and jack pine barrens are common on outwash plains. Aspen-birch Forest and mixed hardwood-pine forest are present on moraines and till plains. Wetland vegetation includes
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    28



conifer bogs, lowland grasses, and swamps. Prior to settlement, the area consisted of forest communities dominated by white pine, red pine, balsam fir, white spruce, and aspen-birch.
Brown glacial sediments form the parent material for much of the soils in the area. Soils are varied and range from medium to coarse textures. Soils are formed in sandy to fine-loamy glacial till and outwash sand. Soils on the Nashwauk Moraine have a loamy cap with dense basal till below at depths of 20 in. to 40 in. These soils are classified as boralfs (cold, well-drained soils developed under forest vegetation) (Minnesota Department of Natural Resources, 2011).


Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    29



5.0HISTORY
5.1Prior Ownership
HibTac has operated as a joint venture among several companies since 1976. The ownership changes and effective percentages held by each company are described in Table 5-1.
Table 5-1:    Ownership History
Cleveland-Cliffs Inc. – Hibbing Taconite Property
Ownership%
1976 – INITIAL START-UP
Bethlehem Steel Corporation (Bethlehem)75%
Pickands Mather & Co (Pickands Mather)15%
Stelco (Steel Company of Canada)10%
1978 – Phase II added
Bethlehem62%
Pickands Mather15%
Stelco7%
Republic16%
1986 – Cliffs acquires Pickands Mather
Bethlehem70%
Cliffs15%
Stelco15%
2002 – Cliffs acquires an additional 8% ownership
Bethlehem62%
Cliffs23%
Stelco15%
2003 – International Steel Group (ISG) acquires Bethlehem assets
ISG62%
Cliffs23%
Stelco15%
2004 –AMUSA acquires ISG
AMUSA62%
Cliffs23%
Stelco15%
2007 –US Steel acquires Stelco
AMUSA62%
Cliffs23%
U.S. Steel15%
2019 – AMUSA becomes operator of Hibbing Taconite
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    30



Ownership%
AMUSA62%
Cliffs23%
U.S. Steel15%
2020 – Cliffs acquires AMUSA’s assets and becomes operator of Hibbing Taconite
Cliffs85%
U.S. Steel15%
5.2Exploration and Development History
Initial observations of iron-bearing rocks in the Mesabi Iron Range are attributed to Henry H. Eames, the first state geologist of Minnesota, in 1866. Mr. Eames mentioned that “enormous bodies of iron ore occurred” in the northern part of the state (Eames, 1866).
Exploration for high-grade, direct-shipping iron ore (DSO) deposits in the Hibbing area began in the early 1890s. Test pitting, later diamond core and churn drilling, and dip-needle surveys were used to delineate DSO deposits. The understanding of this work in the immediate Property area is limited, with poor documentation of activities maintained on site. Coincident with early exploration activity, the aerial extent of the unenriched Biwabik Iron Formation (Biwabik IF) sub-crop was delineated, and the magnetite-bearing iron formation was documented. Between 1895 and 1976, thirty-four separate mines operated within the current Property limits, shipping more than 600 MLT of iron ore and iron ore concentrates. Focused exploration for beneficiation-grade magnetite deposits, regionally known as taconite, however, did not begin until the 1940s when Pickands Mather and its managed subsidiaries Erie Mining Company and Ontario Iron Company commenced evaluation activity that included geophysical surveys, metallurgical testing, and diamond core drilling on regular-spaced grids designed to delineate taconite and characterize its weight recovery and metallurgical properties. A brief history of the initial regional exploration can be found in the Field Trip 2 Guidebook (Severson et al., 2016) and references therein.
Drilling since the late 1960s has primarily consisted of infill diamond drilling for operational purposes and comprises the database currently used for resource estimation. Cliffs and Hibbing Taconite have not evaluated detailed records or results of early, non-drilling prospecting methods used during initial exploration activities such as geophysical surveys, mapping, trenching, and test pits conducted prior to taconite mining development in the 1970s.
In 2007, Hibbing Taconite contracted EDCON-PRJ to fly a high-resolution, ultralight aeromagnetic survey over and beyond the eastern portion of the Property, which included the area immediately east of Highway 169, with the purpose of understanding continuity of magnetic response, and large scale structural features and oxidation of the BIF. The exploration target area east of the highway was not subsequently developed.
Exploration at the Property by previous owners, consisting of primarily diamond drilling, is described in Section 7 of this TRS.
5.3Historical Reserve Estimates
HibTac typically produces new Mineral Reserve estimates every three years. Mineral Reserves reported to the SEC between 2001 and 2015 are summarized in Table 5-2. These Mineral Reserves were not
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    31



prepared under the recently adopted SEC guidelines; however, they followed SEC Guide 7 requirements for public reporting of Mineral Reserves in the US.
Table 5-2:    Historic Reserves
Cleveland-Cliffs Inc. – Hibbing Taconite Property
YearCrude Ore (000 LT)Pellets (000 LT)Strip RatioAll Material
Ratio
Pellet Weight Recovery
ProvenProbableTotalProvenProbableTotal
2001(1)
708,400235,000943,400170,90057,000227,9000.717.0824.2
2002(2)
628,207119,717747,924158,12630,395188,5210.676.6425.2
2006(3)
552,20064,200616,400144,40016,200160,6000.746.6726.1
2009(4)
406,00029,600435,600104,7009,600114,3001.017.6726.4
2013(5)
295,40020,700316,10077,5005,30082,8001.198.3626.2
2015(6)
275,10024,700299,90073,0006,30079,6001.148.0626.5
Notes:
1.As of December 31, 2000; natural moisture; based on Hibbing Taconite Reserve Estimate 2000
2.As of December 31, 2001; dry moisture; based on Hibbing Taconite Reserve Estimate 2001
3.As of December 31, 2005; dry moisture; based on Hibbing Taconite Reserve Estimate 2005
4.As of December 31, 2008; dry moisture; based on Hibbing Taconite Reserve Estimate 2008
5.As of December 31, 2012; dry moisture; based on Hibbing Taconite/SRK Reserve Estimate 2012
6.As of September 30, 2014; dry moisture; based on Hibbing Taconite Reserve Estimate 2015
5.4Past Production
Production between 2010 and 2021 is listed in Table 5-3.
Table 5-3:    Historical Production
Cleveland-Cliffs Inc. – Hibbing Taconite Property
Year
Crude Ore (1)
MLT
Rock Stripping (1)
MLT
Surface Stripping (1)
MLT
Total Material
MLT
Pellet Production (Wet)
MLT
201022.415.212.149.65.9
201128.312.722.063.07.8
201229.513.123.866.38.1
201328.121.113.662.87.7
201427.324.312.063.77.7
201529.426.26.361.98.1
201630.328.55.063.98.2
201729.526.88.464.87.7
201828.831.14.864.77.8
201928.124.47.560.07.5
202021.517.76.145.25.5
202128.821.09.959.77.6
Notes:
1.Values from Hibbing Taconite Met Balance forms
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    32



6.0GEOLOGICAL SETTING, MINERALIZATION, AND DEPOSIT
6.1Regional Geology
Essential aspects of the regional geology in the Lake Superior region have been understood since the early 1900s, and the geologic understanding of the area has remained relatively unchanged over the years.
Iron ores produced within the region range from high-grade, structurally controlled ore bodies amendable to direct shipping to more disseminated, stratigraphically controlled, low-grade iron ores locally termed taconite. Taconite is observed in a sequence of Paleoproterozoic metasedimentary rocks overlying Archean granitic rocks in the Lake Superior region. A fold and thrust belt attributed to the Penokean orogeny (1,880 Ma to 1,830 Ma) developed a northward migrating foreland basin known as the Animikie Basin (Ojakangas, 1994, Figure 6-1). Sedimentary rocks within this basin include the basal Pokegama Quartzite (POK), the overlying Biwabik Iron Formation (Biwabik IF), and argillite and graywacke of the Virginia Formation (Jirsa and Morey, 2003).
The Mesabi Iron Range is a term used to designate the outcrop of the Animikie Group, defining a northeast-trending homocline dipping 5° to 15° to the southeast. The Biwabik IF is sectioned by a number of post-Penokean orogeny, high-angle normal and reverse faults associated with near-vertical reactivated faults in the Archean basement (Morey, 1999). The most notable structural feature of the Biwabik IF is located east of Hibbing, between Virginia and Eveleth, where the paired Virginia syncline and Eveleth anticline result in an S-curve surface trace of the Biwabik IF (Jirsa and Morey, 2003, Figure 6-2).


Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    33



Figure 6-1:    Location of the Animikie Basin and Diagrammatic Cross-section Showing Development of the Basin
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    34



Figure 6-2:    Regional Geological Plan
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    35



6.2Local Geology
The Early Proterozoic Biwabik IF is a narrow belt of iron-rich strata varying in width from 1,300 ft to 3.2 mi and extending approximately 125 mi from Grand Rapids eastward past Babbitt, Minnesota. The true thickness varies from approximately 150 ft to 700 ft. The Biwabik IF is interpreted to have been deposited in a shallow, tidal marine setting and is characterized as having four separate lithostratigraphic members (from bottom to top: Lower Cherty, Lower Slaty, Upper Cherty, and Upper Slaty (Severson, Heine, and Patelke, 2009). “Cherty” members have a sandy, granular texture, are thickly bedded, and are composed of silica and iron oxide minerals. The “slaty” members are fine grained, thinly bedded, and comprise iron silicates and iron carbonates, with local chert beds. The cherty members are representative of deposition in a high-energy environment, whereas the slaty members were probably deposited in a muddy, lower-energy environment below the wave base. Interbedding is ubiquitous, and contacts are generally gradational. The iron content for the cherty members is approximately 31%, while the iron content of the slaty members is approximately 26%. It is important to note that nomenclature of the units is not indicative of metamorphic grade; instead “slaty” and “cherty” are colloquial descriptive terms used regionally.
The four members of the Biwabik IF are further subdivided into twelve locally recognized subunits within the HibTac area. Figure 6-3 illustrates the stratigraphy of these subunits and their general descriptions. Nomenclature for these subunits is based on their relative location within the four members. They are subdivided based on geologic characteristics observed in diamond drill core. Many of the contacts between subunits are gradational and do not provide a sharp geologic contact. Geologic contacts are occasionally adjusted to fit assay data once received.
The Biwabik IF is underlain by the basal, Early Proterozoic age POK, which unconformably overlies Archean igneous and metamorphic basement rocks. The Virginia Formation lies stratigraphically atop the Biwabik IF south of the current pit extents but is not exposed on the mine property. All Precambrian rocks are unconformably overlain by Pleistocene glacial deposits. A local geology cross-section is provided in Figure 6-4.
Isolated DSO material exists within the lower-grade taconite ores, the origins of which have been debated for many years. Some of the more recent publications suggest a genesis linked to crustal-scale groundwater convection related to igneous activity. Much of the evidence supporting this conclusion comes from the isotopic analysis of leached and replaced silicate and carbonate minerals (Morey, 1999). Within the Biwabik IF, metamorphic processes produced assemblages diagnostic of greenschist facies to the west, increasing in grade to the east. Mineralogy in unaltered taconite is dominated by quartz, magnetite, hematite, siderite, ankerite, talc, chamosite, greenalite, minnesotaite, and stilpnomelane (Perry et al., 1973).

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    36



Figure 6-3:    Stratigraphic Column for the Hibbing Taconite Deposit
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    37



Figure 6-4:    Property Geology and Generalized Cross-section for the Hibbing Taconite Deposit
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    38



6.3Property Geology
The Biwabik IF at HibTac consists primarily of carbonates, iron silicates, fine-grained quartz, and iron oxides. These layers are visually distinct, locally separated into slaty beds and cherty beds. The ratio of slaty to cherty beds and distance between these beds are key indicators used during logging, as well as bedding style, texture, color, and magnetic strength. Slaty beds are dark gray in nature, consisting primarily of magnetite in mineralized zones, and range from 0.04 in. to upwards of one inch in thickness. Cherty beds range from gray to green in color depending on the ratio of fine-grained quartz (gray color) to iron silicates (green color). These beds vary in thickness to upwards of twelve inches and may or may not contain disseminated magnetite. Carbonates typically occur as granular, re-crystallized grains of varying size and commonly occur in late-stage quartz-carbonate-filled fractures, which run variably (orientation, length, width, continuity) throughout the iron formation. The Upper Slaty and Lower Slaty members are visually distinctive, as they are dominated by slaty beds; however, these beds rarely contain any notable iron oxide content.
The taconite ores mined at HibTac are from several locally recognized, informal subunits of the Lower Cherty member. Waste rock units (Lower Slaty and Upper Slaty members) cap the Lower Cherty and Upper Cherty members and are distinctively fissile and weakly magnetic as compared to the ore units. The POK, which underlies the Biwabik IF, is not exposed in the pit but is intersected at the base of the iron formation in diamond drilling. The Virginia Formation caps the Biwabik IF and is found predominantly in historical holes drilled south of the current pit extents. A brief description of the lithological units in the immediate Property area is listed below from youngest to oldest.
6.3.1Pleistocene Glacial Deposits
Surficial deposits of 0 to 60 ft in thickness unconformably overlie all bedrock units. Undifferentiated glacial sediments include outwash, glacial lake bed sediments, glacial erratics, and peat. Poorly sorted gravels include sand- to boulder-sized fragments derived from Archean basement rocks and lesser iron formation.
6.3.2Upper Slaty Member
Unit 4-1: This member is generally more than 70 ft thick. The Upper Slaty member is moderately to slightly magnetic and coarse grained. Alternating planar laminations of gray to green ferruginous mudstone and red hematite form slaty zones from six to ten inches thick. These are separated by intervals of variably oxidized, broken and partially decomposed, massive to bedded ferruginous arenite (granular cherty taconite) from two to six inches thick. The unit is leached and/or pitted with a moderate to heavy hematite stain.
6.3.3Upper Cherty Member (Composite Subunit 3-1)
The Upper Cherty member comprised the majority of “natural” (DSO) ores in the Hibbing area prior to the era of taconite beneficiation. The remaining material is variably oxidized on the current Property and can be decomposed largely to earth-red, hematite-rich rubble in fault zones and near most current exposures, so there is little data from historical drilling (before 2005). Fresher intercepts in drill core occur south of the current HibTac pit and (predominantly) east of Highway 169, where the subunits are modeled. The Upper Cherty is modeled as a single rock package (3-1) over most of the Property.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    39



6.3.3.1Subunit UC4
This subunit ranges from 25 ft to 130 ft thick. It is comprised of moderately to strongly magnetic, gray (red-gray where weathered), thick- to massive-bedded (8 in. to 24 in. thick), medium-grained ferruginous arenite (cherty taconite) with abundant and distinct, fine-grained pink carbonate and magnetite mottling, as well as disseminated fine- to medium-grained magnetite. There are very minor bedded ooidal jasper beds 12 in. to 24 in. thick. Minor moderately magnetic, greenish-gray and red, thin and wavy ferruginous mudstone beds that are 0.1 in. to 1.0 in. thick occur near the western margins of the Property; however, such “slaty” beds can reach thickness greater than 3.0 in. in proximity to the upper and lower contacts. Along the eastern margin of the active property and beyond – in particular east of highway 169 – the unit becomes significantly thinner (25 ft to 55 ft) and contains green-gray and red, thin and wavy ferruginous shale beds, 0.5 in. to 3.0 in. thick, throughout. The subunit typically has a pitted appearance due to weathering of carbonate mottles.
6.3.3.2Subunit UC3
This subunit ranges from 0 to 25 ft thick. It is moderately magnetic and consists of alternating bands of gray, medium- to thick-bedded (3 in. to 12 in. thick), fine- to medium-grained ferruginous arenite (cherty taconite) and olive to maroon, wavy and thickly laminated (one to eight inches thick) slaty taconite, with occasional hummocky cross-stratification. Magnetite occurs as disseminations and wavy-bedded, medium- to coarse-grained bands, and occasionally replaces rip up mud clasts. The unit contains diffuse ooidal jasper mottles, as well as yellow-gray carbonate stringers. The roof is a 4 in. to 24 in. thick, white and red-orange algal mat zone composed of stromatolites and oncolites that occasionally occurs as an algal breccia that has a strongly magnetic matrix of massive magnetite. UC3 is typically only observed east of the Albany Pit area, and pinches out further west.
6.3.3.3Subunit UC2
This unit ranges from 0 to 50 ft thick. It is moderately to strongly magnetic. It comprises gray to beige-gray, medium- to thick-bedded and medium- to coarse-grained, granular and conglomeratic ferruginous arenite (granular cherty silicate taconite) with non-magnetic, wavy-bedded, green to red-green, thinly laminated ferruginous shale beds that range from one to four inches thick (slaty silicate ± carbonate taconite). Cherty beds contain abundant zones of course- to very coarse-grained pebble conglomerate that includes angular clasts of magnetite from 1/16 in. to ¼ in. in width. Subrounded mudstone rip-up clasts are commonly observed in cherty beds immediately adjacent to the slaty beds. Abundant yellow-gray carbonate stringers are observed in and around the slaty beds. This unit is typically only observed east of the Albany Pit area and pinches out along the western margin of the Property.
6.3.3.4Subunit UC1
This unit ranges from one foot to 25 ft thick. It is a non-magnetic, transitional unit between the Upper Cherty and Lower Slaty members of the Biwabik IF. It consists predominantly of green-gray to dark green, fine-grained, thinly laminated ferruginous shale and siltstone beds (slaty silicate taconite) ranging from six inches to 12 in. thick, interlaminated with gray, fine-grained and thin-bedded ferruginous arenite (cherty silicate taconite) that are typically one to two inches thick but can locally be up to six inches in thickness. The UC1 unit significantly thins out towards the western margin of the HibTac property, where it can be as little as one foot in thickness.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    40



6.3.4Lower Slaty Member
Modeled as LS_21, the Lower Slaty member is from 20 ft to 55 ft in thickness and is non-magnetic and dark greenish-gray to black in color. It is thinly laminated and fissile, containing reduced ferruginous shale (slaty-silicate ± carbonate taconite) and lesser fine-grained, locally limey siltstone with rare, fine-grained magnetite laminae. Locally it contains layer-parallel disseminations of fine-grained, euhedral pyrite. Black stylolites are observed locally. The lower 12 in. to 18 in. commonly include variably sized beds of massive, deep black to gray, glassy chert or flint. Scattered white vugs of quartz in the flint locally contain resinous infillings of anthraxolite. The lower portion of the Lower Slaty member is typically decomposed and oxidized to an earthy-red hematite “paint rock”.
6.3.5Lower Cherty Member
The ore-grade intervals are contained with the Lower Cherty member, specifically, the 1-7 through the 1-3. The magnetic iron content ranges from approximately 15% to 18%, with the higher percentages found in the 1-5 and 1-6.
6.3.5.1Subunit 1-8
Modeled as LC_18, subunit 1-8 is from 25 ft to 32 ft in thickness and is mostly non-magnetic. It is a variably coarse-grained, medium to thick wavy-bedded ferruginous arenite (granular cherty-silicate ± carbonate taconite). Thin seams of magnetite laminated with gray ferruginous mudstone form scattered slaty bands up to one inch thick. Separating these minor slaty bands are massive, coarse to fine, granular silicate mineral zones that are deep green in color and up to 12 in. thick. Pink carbonate minerals (ankerite ± siderite) occur adjacent to slaty bands as scattered mottles, patches, or spots up to one inch wide. The unit is commonly decomposed and oxidized to characteristic limonite and local goethite or hematite. The 1-8 is the “sand and ore” subunit commonly caved in historical underground workings.
6.3.5.2Subunit 1-7
Modeled as LC_17, the 1-7 ranges from 15 ft to 25 ft in thickness and is moderately to slightly magnetic with medium to thick bedding. In this subunit, the taconite is granular and cherty. Magnetite and moderately thick ferruginous mudstone bands form discontinuous to irregular, gray slaty bands and mottles up to 1.5 in. thick. These are separated by massive ferruginous arenite beds up to eight inches thick that contain moderately abundant, coarse-grained disseminations, diffusions, or patches of magnetite. Minor green silicate minerals are localized along the slaty bands with more abundance. Carbonate mottles are scattered throughout the cherty zones, and minor magnetite-bearing stylolites occur locally. Leached and pitted, blanket-style oxidation zones containing goethite + martite ± maghemite are common proximal to fault zones.
6.3.5.3Subunit 1-6
Modeled as LC_16, the 1-6 ranges between 25 ft and 45 ft in thickness and is highly magnetic. It has thick, wavy beds of cherty-silicate taconite. Magnetite laminated with minor ferruginous mudstone and hematite forms gray-black slaty bands up to three inches thick. Intervals of granular chert-grain arenite and/or coarsely crystalline green silicates are two to six inches thick and contain minor magnetite disseminations, which become moderately abundant in the bottom five feet of the unit. Minor
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    41



magnetite patches are scattered throughout the massive cherty beds. Slaty bands are typically goethite rich where oxidized. Cross-stratification is observed locally in the field.
6.3.5.4Subunit 1-5
Modeled as LC_15, subunit 1-5 ranges between 45 ft and 85 ft in thickness and is highly magnetic. The unit is a coarse-grained, massive to bedded ferruginous arenite (granular cherty taconite) with minor, wavy to planar bands of magnetite and ferruginous mudstone. Massive cherty layers up to 12 in. thick contain abundant disseminations of coarse-grained, granular magnetite and white or green chert/silicate mineral granules, resulting in a distinctive “salt-and-pepper” texture. The upper eight feet to 15 ft are massive to bedded, with abundant thin (<0.2 in.), slaty magnetite curls, wisps, or diffusions and very few slaty bands. The lower 35 ft to 70 ft contains moderately abundant wavy bands of magnetite laminated with gray, ferruginous mudstone up to one inch thick. Minor patches of magnetite are present in the wide cherty zones. Scattered magnetite-bearing, layer-parallel stylolites up to 0.05 in. wide are also common. Enigmatic, channel-like or lensoidal bodies of lean to magnetite-barren, pale-green silicate taconite occur predominantly in subunit 1-5 and are located near the southern and eastern margins of the Property.
6.3.5.5Subunit 1-4
Modeled as LC_14, subunit 1-4 ranges between 9 ft and 11 ft in thickness and is a moderately magnetic, thin-bedded, cherty and slaty taconite that has wavy to even bedding. This is a transitional sequence between subunits 1-5 and 1-3. It is described as having gray slaty bands up to three inches thick, composed of interlaminated ferruginous mudstone, magnetite, and rare hematite (slaty-silicate taconite) that break into distinctive “poker chips.” These are separated by granular cherty beds up to four inches thick, which contain scattered mottles of coarse-grained, granular magnetite and white silicate minerals. Slaty bands increase with depth. Oxidation is uncommon but occurs as one- to two-inch orange bands in the cherty beds.
6.3.5.6Subunit 1-3
Modeled as LC_13, subunit 1-3 ranges from 18 ft to 25 ft thick and is a moderately magnetic, planar-bedded, cherty and slaty taconite. Within the subunit, fissile, gray slaty bands are composed of interlaminated ferruginous mudstone, minor hematite, and magnetite (slaty-silicate taconite) up to 10 in. thick. These are separated by variably coarse-grained, granular cherty-silicate mineral beds up to five inches thick, which contain patchy diffusions or mottles of granular magnetite, mostly white silicate minerals, and characteristic bright red jasper bands or mottles up to 1.5 in. wide. Bedding-parallel quartz + chlorite ± calcite veins up to one inch wide are common and typically exhibit well-developed slickensides or slickensteps on vein margins. Slaty bands increase with depth. Oxidation is uncommon, but typically occurs as one- to two-inch orange bands in the cherty beds. Pit bottom is in Unit 1-3 and five feet above the subunit 8-3 contact.
6.3.5.7Subunit 8-3
Modeled as LC_83, subunit 8-3 ranges from less than two feet up to 25 ft in thickness. It is a slightly magnetic, planar-bedded slaty taconite. Fissile, thinly interlaminated ferruginous shale, hematite, minor fine-grained siltstone and local minor magnetite form distinctive red-green bands of slaty-silicate ± carbonate taconite up to 15 in. thick. Minor beds of ferruginous arenite and lesser intraformational
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    42



conglomerate (granular cherty-silicate taconite) contain slight disseminations or fragments of magnetite and some hematite. An 18 in. to 30 in. cherty-silicate taconite interval is commonly located five to seven feet below the upper contact in the central portion of the Property. Bedding-parallel quartz + chlorite ± calcite veins up to one inch occur in the slaty bands and typically exhibit slickensides or slickensteps on vein margins. Rarely oxidized, the unit has a “painty” hematite + goethite assemblage near faults. Subunit 8-3 pinches out towards the west of the Property and is chertier.
6.3.5.8Subunit 1-2
Modeled as LC_12, subunit 1-2 ranges from 18 ft to 25 ft thick. It is moderately to slightly magnetic, very coarse grained, and composed of massive to bedded ferruginous arenite and local intraformational conglomerate (granular cherty-silicate ± carbonate taconite). It is similar in appearance to the upper portion of subunit 1-5. Subunit 1-2 has massive cherty zones up to 12 in. thick that contain coarse-grained disseminations or diffusions of hematite and/or magnetite. The proportion of hematite increases with depth, and core may have a light reddish-gray tint. Minor tan or white mottles of carbonate minerals occur locally. Very minor slaty bands, less than one inch thick, are composed of ferruginous mudstone laminated with hematite and/or magnetite and are scattered throughout the subunit. The upper two to four feet are typically conglomeratic, with angular to rounded fragments of silicate minerals, hematite, or magnetite.
6.3.5.9Subunit 1-0
Modeled as LC_10, subunit 1-0 ranges from 18 ft to 25 ft thick and is non-magnetic, oxidized, and is referred to as the “Red Basal” unit. In this subunit, red slaty bands from one to two inches thick are composed of mostly shaly hematite. The bands are separated by three- to five-inch beds of slightly pitted, fine-grained ferruginous arenite (cherty-silicate taconite) that contain abundant hematite speckles. A red and white jasper algal conglomerate up to 36 in. thick occurs at the base of subunit 1-0. Drill core is commonly decomposed, with a heavy secondary hematite stain.
In the Mine area, the four members of the Biwabik IF comprise a total thickness of approximately 580 ft. Average thicknesses of the four members of this formation are shown in Table 6-1.
Table 6-1:    Relative Thickness of the Four Members of the Biwabik Iron Formation
Cleveland-Cliffs Inc. – Hibbing Taconite Property
MemberThickness
(ft)
Upper Slaty70+
Upper Cherty – 4 subunits205-265
Lower Slaty20-55
Lower Cherty – 9 subunits175-298
6.3.6Pokegama Quartzite (0-0)
Drilling in the Pokegama Formation intersects fine-bedded, light-green to pink quartzite or quartz arenite with (locally) interbedded arkosic conglomerate, quartz wacke, and quartz-rich siltstone and shale. Cross-beds are noted in scattered outcrops north of HibTac. Basal conglomerate channels of
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    43



varying thickness contain pebble- to boulder-sized fragments of Late Archean basement rock. No drill holes on HibTac fully intersect the Pokegama Formation. Stratigraphic thickness of approximately 200 ft is projected down the basal contact north of Kleffman road.
6.4Mineralization
Mineralization consists predominantly of a primary assemblage of magnetite in a matrix of chert, iron silicate (talc, stilpnomelane), and carbonate (ankerite) formed by low-temperature diagenesis. Supergene weathering and oxidation has locally altered this primary assemblage to hematite, goethite, and chert, generally increasing in intensity with proximity to isolated occurrences of Cretaceous Coleraine Formation south of the Mine and faults or fracture zones. Partial or complete oxidation of magnetite to hematite precludes recovery by magnetic separation, resulting in local degradation of potential ore intervals to waste rock.
The mineral of economic interest at HibTac is magnetite, bound in rock referred to as taconite. The recoverable magnetic iron (MagFe) in ore generally ranges from 13% to 30%. Quartz, carbonates, and iron silicates are the common gangue minerals. The deposit is layered and consistent. HibTac targets the Lower Cherty member as the primary mineralized zone, in particular subunits 1-7 through 1-3, as shown below in Table 6-2.
Table 6-2:    Relative Thicknesses and Magnetic Iron Content of Subunits of the Lower Cherty Member of the Biwabik Iron Formation
Cleveland-Cliffs Inc. – Hibbing Taconite Property
Subunits of
Lower Cherty Member
Thickness
(ft)
Average Magnetic Iron Content
1-825-32
1-715-2518% Magnetic Fe
1-625-4520% Magnetic Fe
1-545-8520% Magnetic Fe
1-49-1117% Magnetic Fe
1-318-2515% Magnetic Fe
8-30-25
1-218-25
1-018-25
6.5Deposit Types
6.5.1Mineral Deposit
The HibTac iron ore deposit is a classic example of a BIF deposit of the Lake Superior type. Lake Superior-type BIFs occur globally and are exclusively Precambrian in age, deposited from approximately 2,400 Ma to 1,800 Ma. Although the genesis of iron formations has been debated over the years, it is certain that they were deposited more or less contemporaneously and in similar marine depositional environments. Some of the most prolific iron districts in the world are hosted in these rocks, such as
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    44



those found in the Pilbara district of Australia and the Animikie Group of Minnesota. Theories as to their formation center on the hypothesis that at stages in the Earth’s history, the oceans were acidic and contained tremendous amounts of dissolved iron. The conventional explanation for the majority of these deposits is that oxygen-producing life forms such as stromatolites, found fossilized in BIFs, began to produce sufficient oxygen to oxidize the sulfide or free ion forms of iron within seawater. The iron content in seawater rose and fell for over a billion years, and the last of the Precambrian BIFs is thought to have been deposited around 1800 Ma (Guilbert and Park, 1986).
While there are some remaining high-grade iron deposits in the area, the majority of the iron ore is regionally referred to as taconite. Taconite is a type of BIF that is characterized as an iron-bearing sedimentary rock with greater than 15% Fe, where the iron minerals are interbedded with silicates or carbonates. Iron content (FeO+Fe2O3) in taconites is generally 25% to 30%. Higher-grade DSO ores are believed to have formed from the leaching and dissolution of silica found in the taconites, resulting in smaller zones that can contain greater than 60% iron (Morey, 1999). These high-grade deposits are predominantly related to the high-angle, steeply dipping faults common along the Mesabi Iron Range.
Geological classification of BIFs is made on the basis of mineralogy, tectonic setting, and depositional environment. The original facies concept provided for oxide-, silicate-, and carbonate-dominant iron formations that were thought to relate to the environment of deposition (James, 1954), as follows:
Oxide-rich BIF typically consists of alternating bands of hematite [Fe23+O3] with or without magnetite [Fe2+Fe23+O4]. Where the iron oxide is dominantly magnetite, siderite [Fe2+CO3] and iron silicate are usually also present.
Silicate-rich BIF is usually dominated by the minerals greenalite, minnesotaite, and stilpnomelane. Greenalite [(Fe2+, Mg)6Si4O10 (OH)8] and minnesotaite [(Fe2+, Mg)3Si4O10(OH)2] are ferrous analogues of antigorite and talc respectively, while stilpnomelane [K0.6 (Mg, Fe2+, Fe3+)6Si8Al(O, OH)27·2-4H2O] is a complex phyllosilicate.
Carbonate-rich BIF is usually dominated by the minerals ankerite [Ca Fe2+(CO3)2] and siderite, both of which display highly variable compositions. Similar proportions of chert and ankerite (and/or siderite) are typically expressed as thinly bedded or laminated alternating layers (James, 1966).
These classification schemes commonly overlap within Lake Superior-type deposits, defying classification by this method. Almost all of the minerals described in the three classifications can be found in many of the deposits of the Mesabi Iron Range. Lake Superior-type deposits are generally classified based on their size and depositional environments (Guilbert and Park, 1986). These deposits are typically large and are associated with other sedimentary rocks. Deposition of the Lake Superior-type deposits occurred in shallow marine conditions, with transgressive sequences commonly observed in the regional stratigraphy (Simonson and Hassler, 1996). It is common to observe shallow-marine bedforms and sedimentary depositional textures in these deposits.

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    45



7.0EXPLORATION
Exploration for magnetic iron-formation resources at HibTac has relied predominantly on diamond core drilling (DD) and Liberation or Davis Tube (DT) analyses of recoverable magnetic concentrate for over four decades. Most exploration work by Cliffs has been and continues to be near-mine diamond core drilling conducted using a 400 ft x 400 ft grid. Limited ground magnetic surveying has been used locally in the past to define oxidized zones.
7.1Drilling
7.1.1Type and Extent
DD is the principal method of exploration utilized at HibTac. A combination of historical and current DD core drilled by Cliffs and its predecessors is used in mine planning. Initial diamond drilling in the 1940s by Pickands Mather (Erie Mining Company) identified the potential for a magnetic iron formation-hosted iron resource. HibTac resource delineation drilling took place from 1967 to 1969, totaling 7,342 ft of drilling in 38 holes. In 1974, Hibbing Taconite commenced a program of systematic infill and step-out drilling; exploration has proceeded in conjunction with these development drilling activities. Between 1974 and 2019, Hibbing Taconite completed a total of 351,566 ft of drilling in 1,808 drill holes. Additional stratigraphic and assay data from beyond the limits of Hibbing Taconite drilling has been obtained through public records or exchange with other mining companies.
Exploration holes at HibTac are used to determine lithology, crude MagFe content, weight recovery, relative grinding power and grind size required to achieve silica targets, and concentrate SiO2 content, and identify any offsetting or oxidized structures within the deposit and/or surrounding rock. These lead to factors for determining economic viability based on stripping ratio, cut-off grade, and ability for the plant site to process the ore. Exploration also helps identify areas that will need to be avoided or mined around due to geological or structural anomalies.
HibTac is a mature mine property that has been extensively drilled to the limits of the current mineral tenement. The last significant drilling outside the current Permit to Mine limits occurred in 2014. Drilling within the Permit to Mine limits during the period 2015-2019 has focused on definition and infill drilling of material included in the current life of mine (LOM) plan. Additional exploration and delineation drilling is contingent on acquisition of additional mineral leases.
No drilling has been conducted since Cliffs resumed management of Hibbing Taconite in December 2020.
As of the effective date of this TRS, Cliffs and its predecessors have compiled a drill hole database containing lithologic, geotechnical, and assay records for 3,665 diamond core and cuttings holes totaling 620,670 ft (Table 7-1 and Figure 7-1), of which 1,857 drill holes totaling 269,104 ft consist of DD holes drilled by Pickands Mather between 1942 and 1973, and DD and non-core holes drilled by predecessor and competitor companies within the limits of the Property and on adjacent parcels. Most of these 1,857 holes contain limited lithologic or assay data and are not used to directly support Mineral Resource estimation.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    46



Table 7-1:    Summary of Drilling Database
Cleveland-Cliffs Inc. – Hibbing Taconite Property
Company
No. Holes
Footage
Core
Cuttings
Period
Hibbing Taconite Company1,808351,566x1974‐2019
Oliver Iron Mining Company926103,369x
National Steel Pellet Company27052,023x
Mahoning Ore & Steel Company47948,747x1895‐1955
U.S. Steel Corporation7937,750x
Pickands, Mather & Co.6111,638x1947-1973
Hanna Ore Mining Co.2710,046x
Crete Mining Co.124,336x
Burrall Reserve1791x
Donner Mining Co.2404
3,665620,670


Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    47



Figure 7-1:    Drill Hole Location Map

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    48



7.1.2.Procedures
7.1.2.1Collar Coordinates and Surveying
Drill collars are planned using Maptek’s Vulcan™ (Vulcan) software. Currently, the location of the drill hole is set by the geologist, with collars marked and surveyed using global positioning system (GPS). Drill hole locations are staked in the field and marked with a lath of unique properties and color to distinguish it from other posts or markers in the pit or surrounding area. Identifying marks (in permanent marker) indicate the hole number.
DD collar locations are recorded on the original drill logs created at the time of drilling, including easting and northing coordinates in local grid (modified Minnesota State Plane, NAD 27 datum) and elevation of collar in feet above sea level National Geodetic Datum of 1929 (NGVD29).
The collar of each completed drill hole is surveyed by Hibbing Taconite’s contracted surveyor. The collar coordinates (XYZ – preferably Minnesota State Plane Coordinates) are verified by the project geologist. Final survey data are validated in the office by the project geologist and incorporated into the digital acQuire drill hole database.
Surveying methods have evolved over the years with advancements in technology, moving from optical methods to electronic distance measurement and to GPS, which is currently in use. SLR is of the opinion that, for the deposit type, all survey methods used for the collar locations would be expected to provide adequate accuracy for the drill hole locations. All drilling follows applicable Minnesota Department of Health (MDH) and MDNR regulations and requirements.
Due to the relatively shallow depth and vertical nature of most drill holes, downhole deviation survey are not typically conducted; however fourteen drill holes in the database that were drilled at an angle did receive a downhole deviation survey with a non-magnetic reflex gyro and were found to have minimal deviation. Drill holes pierce the generally flat lying Biwabik IF at near perpendicular angles.
7.1.2.2Drill Site Reclamation
For exploratory borings outside the Permit to Mine, HibTac follows all applicable regulations concerning MDH and U.S. Environmental Protection Agency (EPA) regulations including: notification, drilling, abandonment, Storm Water Pollutant Prevention Plan (SWPPP) inspections, and site reclamation. As necessary, sites are re-graded and topsoil is replaced. Sites are re-seeded with an approved State of Minnesota reclamation mix when required.
7.1.2.3Drill Core Sample Collection
All drilling follows MDH and MDNR regulations and requirements.
During drilling, core samples are boxed with depths marked in feet using wooden run blocks. The core is transported from the drill site by the mine geologist or by the drilling company and taken to an onsite core logging facility. The mine geologist confirms procedures for packaging and handling of core in the boxes, such as the inclusion of footage markers at the end of core runs and labeling core boxes with sequential numbering and footage of core included in the box.
Drilling footages are verified visually, as taconite is a very competent rock. Core recovery is generally very good. Core is sometimes lost in zones of intense oxidation, which is very rare in potential ore but common in waste rock.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    49



7.1.2.4Drill Core Logging
Logging includes rock types (lithologic member and subunit), magnetic characteristics, taconite type, degree of oxidation, mineralogy, textures, alteration, structural information, and a general geologic description. Boundaries of geological subunits are often gradational (e.g., more slaty than cherty versus more cherty than slaty, thin beds becoming more prevalent than thick beds) and may not provide a sharp geologic contact. As magnetite is the primary mineral of interest, a hand magnet is utilized during core logging and indicates relative magnetic iron content of a sample interval prior to assaying (e.g., slight, moderate, strong). Geotechnical core measurement includes core recovery and rock quality designation (RQD).
Core logging and photography is performed by geologic zones, which are separated by visual and physical characteristics, including relative magnetism, to determine subunit lithology. Drilling footages are verified visually by the mine engineer/geologist. Core was not photographed prior to 2003.
Logging records are entered into Microsoft (MS) Excel spreadsheets or manually on paper logs prior to import into an acQuire database and stored digitally onsite. Prior to 2014, MS Access was used for the database, and logs were uploaded from an MS Excel template. The logging records are sent with the samples to the laboratory, and hard copies of most of HibTac’s drill logs are stored on site.
Drilling footages are verified visually, as taconite is a very competent rock. Core recovery is generally very good. The drill core data is stored digitally by drill hole ID.
7.1.2.5Drill Core Sampling
In ore zones, samples for the laboratory are prepared in approximately 10 ft lengths but can range from five feet to 15 ft when intervals do not break evenly or within a defined geological unit. Core is split with a hydraulic splitter or rock saw. Samples are tagged and bagged for delivery to the contracted analytical laboratory. Sample tags reflect the operation, hole number, and from/to sample interval, with tags placed inside the sample bag and a second tag on the outside of the bag. Preserved half core is stored in original core boxes while the other half follows the normal assaying procedure. Half core, typically conserved for state-leased lands and property outside the mine operations area, is retained for future use. For holes internal to the mine operations area, whole core is sampled.
Drill core logging and sample interval selection are performed by the mine geologist. Digital core logs are stored on a common server. Digital assay information is stored in original MS Excel files delivered by the laboratory as well as in an acQuire drill hole database. Save samples are stored in core storage buildings leased from Cliffs by the contracted laboratory. Type drilling and sampling information is summarized in Table 7-2.
Table 7-2:    Core vs. RC Drilling Summary
Cleveland-Cliffs Inc. – Hibbing Taconite Property
Diamond DrillingRC DrillingTotal Drilling
No. of Holes Drilled2,2191,4443,663
Footage Drilled453,768166,498620,266
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    50



7.1.2.6Sample Storage and Data Security
Drill core is transported directly from the drill rig to the core logging facility at HibTac by either the drilling contractor or Cliffs’ personnel. Core storage for unlogged and unsampled core is located at the HibTac logging facility.
Whole core is placed in labeled bags for submission to the assay laboratory. Some archived drill core or coarse reject is consumed during re-assaying programs conducted sporadically for specific local areas of the Mine.
Core samples are currently prepared and analyzed at the independently owned Lerch Brothers Inc. (Lerch) facilities in Hibbing, Minnesota, where they are transported by HibTac operations personnel or the laboratory. Lerch is accredited with ASQ/ANSI ISO-9001:2015 for its system of quality management. Each shipment of core samples is accompanied by a sample sheet with dispatch number recording all the sample information and required analyses. The data are stored digitally on HibTac’s shared servers. Unused sample materials are saved and stored in barrels at Lerch’s facilities in Hibbing, Minnesota.
Digital copies of drill core analyses received from Lerch are stored in a backed-up network drive with restricted permissions, as well as within an acQuire database, which retains daily, weekly, monthly, and yearly backups.
Electronic storage of an as-drilled collar location file for each annual drilling program is accomplished using the database management system acQuire. A hard copy printout of the collar file with other documents relevant to the drill holes is stored in file cabinets at the HibTac Mine Geology office.
It is the QP’s opinion that there are no known drilling, sampling, or recovery factors that could materially affect the accuracy and reliability of the results and that the results are suitable for use in the Mineral Resource estimation.
7.2Hydrogeology and Geotechnical Data
Refer to Section 13.2 Pit Geotechnical and Section 15.4 Tailings Disposal for this information.


Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    51



8.0SAMPLE PREPARATION, ANALYSES, AND SECURITY
Lerch, which leases Cleveland-Cliffs’ Hibbing Research laboratory facilities and equipment, provides contract analytical services that include all diamond drill core processing and analyses for HibTac. Lerch is accredited with ASQ/ANSI ISO-9001:2015 for its system of quality management. Core processing flowsheets, test procedures, and quality control procedures required for Lerch’s ISO accreditation are used for HibTac drill core.
Only DD exploration holes are used for assaying and used in resources modeling. Magnetic susceptibility probing of blast holes is used to check ore contacts as well as confirm expected magnetic iron grade during production. Reconciliations between actual production and modeled production provide insight into the accuracy of the modeled assay data versus actual production.
8.1Sample Preparation and Analysis
Sampling of iron formation is performed to evaluate the magnetite-bearing taconite ore potential and characterize the metallurgical properties of the material. Therefore, conventional whole rock elemental assaying approaches utilized in evaluating most metallic ore deposits are eschewed in favor of methods designed to qualify and characterize recoverable magnetic concentrate.
8.1.1Sample Preparation
The core is stage-crushed to 100% passing ¼ in. in size; initially crushed to minus one inch with a jaw crusher, then further reduced to -0.5 in. with a jaw crusher, and finally reduced to -1/4 in. in a roll crusher.
The sample is split into the following parts:
Standard Davis Tube test and x-ray fluorescence (XRF) analysis: 40 g
Liberation Index Study (LIS): 1,500 g
Fee holder sample split: 500 g
-10 mesh sample: 1,200 g are crushed to -10 mesh
Excess sample: 2,000 g of excess crushed to -1/4 in.
8.1.2Sample Analysis
The Davis Tube method and Saturation Magnetization Analyzer (Satmagan) are used to determine the crude MagFe percent, percent weight recovery (% wtrec), and concentrate silica in samples.
8.1.2.1-200 Mesh Davis Magnetic Tube Separation Test
Iron formation samples interpreted by the logging geologist to have magnetic iron contents below 10%, or concentrate silica contents significantly above 10%, are assayed using the single-sample DT assay method per Lerch Laboratory Procedures (LLP). The DT method provides the same primary data as the LIS method (described below) at a greatly reduced cost. The single sample analysis does not provide the ability to target a specific grind and therefore has the potential to have more variation in the results than would be expected from the LIS method. The potential variation of the DT method limits the use of this testing method to only samples expected to be below economic cut-off grades.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    52



The samples are initially reduced using stage crushing with jaw and rolls crushers to -1/4 in. (LLP-60-02, LLP-60-03, LLP-60-04). From a working sample of 800 g, a 50 g sample is split out for further size reduction (LLP-60-05). Using a pulverizer, the 50 g subsample is ground to 100% passing 20 mesh (LLP-60-07). Using a buckboard and muller (LLP-60-10), the subsample is processed to 100% passing 200 mesh. Subsamples are split from the 100% passing 200 mesh sample for Satmagan MagFe analysis (LLP-60-12) and crude ore total soluble iron assay (LLP-30-02). A 15 g (0.529 oz) split is measured and utilized for the DT magnetic separation (LLP-60-11). Each DT concentrate is weighed, and total iron (LLP-30-02) and silica (LLP-30-05) assays are performed. Weight recovery is calculated as the ratio of recovered DT concentrate to DT head sample weight.
Sample preparation requires using a buckboard and muller to grind the sample to 100% -200 mesh. The buckboard is a cast iron plate with three steel sides and a smooth upper surface. It measures 18 in. by 24 in. The buckboard and muller pulverization method is used to reduce small amounts of -20 mesh material to -200 mesh under controlled conditions. The sample to be pulverized is poured on a 200 mesh screen, and oversize material is placed on the buckboard. The muller is passed over the sample 15 times, and the ground material is screened on the 200 mesh screen. Material that is +200 mesh is returned to the buckboard and the process is repeated until the entire sample is ground to -200 mesh. The buckboard and muller grinding method provides a more consistent particle size distribution than a pulverizer and requires less time than grinding mills. Figure 8-1 presents the HibTac DT drill core procedure.

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    53



Figure 8-1:    Davis Tube Drill Core Procedure
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    54



Davis Tube analysis involves a ground sample suspended in water being moved back and forth along the length of the tube while a magnet is positioned in a mid-point in the tube. The magnetic material in the sample clings to the side of the tube where the magnet is positioned. This magnetic material is then collected and weighed to determine % wtrec (as compared to the initial weight of the sample which enters this process). After weighing, the concentrate material is assayed for silica and iron by wet chemistry (see below).
Procedure LLP-60-11 is followed for recovering magnetic iron using the Davis Tube (Eriez Model EDT with a 1.5 in. inner diameter). The magnet is electric and is set at 100% strength with 115 V DC. A 15 g (0.359 oz) sample (100% passing 200 mesh) is put through the Davis Tube magnetic separator. Wash water of 19 psig is used for testing. The water flow is verified prior to each use. After the sample is run in the Davis Tube, the sample is dried and demagnetized. A weight is taken of the Davis Tube retained sample; the concentrate is tested for:
Weight of magnetic fraction recovered in the tube
Satmagan MagFe
Total Fe
Silica
Separated products of the test include tails and the tube concentrate. The excess head material is analyzed with Satmagan for magnetic iron (described below in section 8.1.2.3).
The DT tails are usually discarded but can be saved for future testing upon request.
8.1.2.2Liberation Index Test
Potential crude ore grade samples are prepared according to LLP for LIS. Crude ore samples are initially reduced using stage crushing with jaw and roller crushers to -¼ in., with further crushing to -10 mesh using a gyratory crusher and buckboard and muller (LLP-60-02, LLP-60-03, and LLP-60-04). A subsample of approximately 1,000 g (2.2 lb) is collected (LLP-60-05) and further reduced to -20 mesh (LLP-60-06). Then it is screened through a 325 mesh screen, the oversize and undersize fraction weights are recorded, and the sample is recombined (LLP-60-08).
After the sample is recombined, and following LLP-60-09, three 200 g (0.44 lb) subsamples are split from the sample. The individual 200 g subsamples are charged separately into 4 in. x 6 in. grinding ball mills along with 100 mL (0.0264 gal) of water, 77 - ¾ in. balls (2,300 g to 2,450 g, 5 lb to 5.4 lb), and 117 - ½ in. balls (1,100 g to 1,160 g, 2.4 lb to 2.6 lb). The three subsamples are ground for six minutes, 10 minutes, and 14 minutes at 96 rpm. After the end of each timed grind, the mill charge is screened through a 10 mesh screen to recover the grinding balls.
Each ground subsample is wet screened through a 325 mesh screen, dried, and weighed to determine the percent passing 325 mesh. Subsamples are split from the 10 minute grind for Satmagan magnetite determination (LLP-60-12) (LLP-30-02) and a crude ore total soluble iron assay (LLP-30-02). A 15 g (0.359 oz) split is obtained from each subsample for DT magnetic testing (LLP-60-11). Each DT concentrate is reduced to 100% passing -200 mesh, weighed, and iron (LLP-30-02) and silica (LLP-30-05) assays are obtained. Weight recovery is calculated as the ratio of recovered DT concentrate to DT head sample weight.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    55



The DT concentrate silica is established for each timed grind. Then, for each principal assay parameter (wtrec, DT concentrate iron, kWh/LT, and % -325 mesh), a grind-grade, power-grade, or recovery-grade relationship is plotted (as naturally (x) vs. DT concentrate silica). A linear regression is calculated for the three data points, and the grade, grind, or power value corresponding to target 3.45% concentrate silica is determined; this is the value included in the assay database. DT magnetic iron is calculated as the product of the percent weight recovery and percent concentrate iron at 3.45% target concentrate silica. The plant target concentrate silica of 4.15% is empirically determined to be equivalent to 3.45% target concentrate silica from the Davis Tube.
Experience at HibTac in utilizing the Liberation Index data has proven its superior capabilities for ore grading purposes over the standard -200 mesh data. However, additional, hypothetical -200 mesh DT parameters of weight recovery and concentrate silica are modeled from the Liberation Index data, in order to maintain a consistent historical record for the -200 mesh data set, especially for mine planning purposes.
Silica and weight recovery at HibTac are projected from the LIS test as if they were from a -200 mesh DT, assuming that 100% passing -200 mesh reflects (on average) a narrow range of passing %-325 mesh, based on 3,600 like samples. Then silica has an empirical adjustment added to it (approximately 2% depending on the geologic unit) for an “adjusted silica” to be used in ore grading and resource estimation.

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    56



Figure 8-2:    Liberation Index Testing Procedures
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    57



8.1.2.3Satmagan Magnetic Iron Determination
A direct measure of the magnetic iron in crude ore is carried out with a Saturation Magnetization Analyzer (Satmagan), which measures the total magnetic force acting on a sample to a precision of 0.1%. Satmagan analysis involves a ground sample being placed into a Satmagan machine, which is used to measure the magnetic field of the sample, which is then reported as a percent MagFe in the sample.
The Satmagan is a magnetic balance in which the sample is weighed gravitationally and in a magnetic field. The ratio of the two weights is linearly proportional to the amount of magnetic material in the magnetically saturated sample.
Per Lerch procedure LLP-60-11, a minimum of two grams of sample ground to 100% -200 mesh is needed for Satmagan analysis. Any oversize material is further processed with a mortar and pestle, and the sample to be tested is placed in a plastic testing container. Per LLP-60-12, the prepared sample is demagnetized using the demagnetization coil (demag coil). While the demag coil is on, the sample is moved into and out of the magnetic field until the sample is demagnetized. A blank sample is run on the Satmagan on a daily basis to ensure the device is zeroed. The sample is placed on the magnetic balance and the strength of the magnetic field is noted.
The Satmagan calibration is verified daily by Lerch technicians using two HibTac magnetic iron standards with a known magnetic iron content to ensure the machine is operating within specifications. The machine is re-calibrated every six months, or as necessary, using 17 HibTac standards. The labeled standards have a known weight percent magnetic iron, and each of the 17 standards are measured once. The results are plotted, and the equation used to calculate a calibration curve. The explanation of the calibration procedures is supplied in the user’s manual for the Satmagan instrument. If the results of verification standards are not within specifications, the Satmagan is re-calibrated.
8.1.2.4Total Iron Determination Using Dichromate Titration
Total Iron (Titanium Trichloride) Titration is based on ASTM E246-10, Standard Test Method for Determination of Iron in Iron Ores and Related Materials by Dichromate Titrimetry; and Test Method – B - Iron by the Stannous Chloride Reduction Dichromate Titration Method (Modified).
Per procedure LLP-30-02, in the titrimetric method, iron oxide samples are digested in hydrochloric acid and reduced to Fe2+ by SnCl2 in a nearly boiling solution. After cooling, Fe2+ is titrated with a potassium dichromate solution of known concentration. When all Fe2+ is consumed by potassium dichromate, violet color indicates the titration endpoint in the presence of the indicator sodium diphenylamine sulfonate. The percent total iron is a direct reading off the titrating solution burette. The value is corrected against percent total iron based on the analyses of three total iron standards analyzed each shift.
8.1.2.5Hydrofluoric Acid Silica Determination
Silica values reported are based on American Society for Testing and Materials (ASTM) E247-96, Standard Test Method for Determination of Silica in Manganese Ores, Iron Ores, and Related Materials by Gravimetry. Per procedure LLP-30-05, samples are first partially digested in hydrochloric acid to dissolve the non-silica components of the sample. The sample is then filtered and rinsed with more hydrochloric acid. The rinsed sample is then treated with hydrofluoric acid and sulfuric acid to dissolve
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    58



the silica and remove residual iron, aluminum, and titanium. The silica is desiccated to drive off water, and the weight is recorded.
8.1.2.6Density
A water-immersion method has been used by Hibbing Taconite to determine the density of drill core samples in order to obtain density factors for each subunit. The procedure used by Hibbing Taconite weighs the entire core sample interval suspended from a spring scale in air and while immersed in water. The density of the sample is calculated with the difference of the submerged weight of the sample and the dry weight of the sample. The density is calculated using the dry weight divided by the difference in the dry and suspended weight:
Density (sample) = density (water) * (dry weight) / (dry - immersed weight)
A density study was performed at HibTac in 2004-2005, comprising more than 1,100 core samples from the deposit. Samples were typically full 10 ft run lengths. Tonnage factors (volume/mass), or the inverse of density, are used at HibTac because units are in feet and long tons. Results of the study indicate that tonnage factor is a function of the iron content of the rock, and that function is now used to assign density to the block model for the Biwabik IF. The tonnage factor of glacial overburden is set at 18.0 ft3/LT, and the tonnage factor of stockpile material is set at 15.0 ft3/LT.
Currently, density for the Biwabik units is calculated in the block model as a function of Satmagan MagFe (smgfe) and total crude iron (ciron) content. The equation is:
Density (LT/ft3) = 1 / (13.05566 – (0.03179 * (smgfe)) – (0.0420424 * (ciron)).
8.2Quality Assurance and Quality Control
Quality assurance (QA) consists of evidence to demonstrate that the assay data has precision and accuracy within generally accepted limits for the sampling and analytical method(s) used in order to have confidence in a resource estimate. Quality control (QC) consists of procedures used to ensure that an adequate level of quality is maintained in the process of collecting, preparing, and assaying the exploration drilling samples. In general, QA/QC programs are designed to prevent or detect contamination and allow assaying (analytical), precision (repeatability), and accuracy to be quantified. In addition, a QA/QC program can disclose the overall sampling-assaying variability of the sampling method itself.
Hibbing Taconite does not yet have a formal procedure for exploration drill core QA/QC (see section 8.2.1 below). When Roscoe Postle Associates Inc. (RPA), now part of SLR, audited Mineral Resource documentation for other Cliffs operations in autumn 2019, RPA recommended there be a campaign QA/QC report for every DD program and formal documentation of QA/QC procedures.
8.2.1QA/QC Procedure
There is no formal HibTac QA/QC procedure for drill core processing and analysis. For future campaign reports, a formalized procedure should be referenced in the campaign QA/QC report.
Prior to the 2010 drilling program, no standards, blanks, or duplicate samples were inserted into the stream of DD samples. Beginning with the 2010 drilling program, duplicate samples and standards were inserted into the sample stream. However, templates for QA/QC analysis of standards and duplicates were not created until 2015 (Orobona, 2015) and were not implemented in real time until 2017, for a
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    59



portion of the 2015 DD program that was deferred pending implementation of controls on Satmagan instrument calibration and sample preparation, and tooling/testing of new LIS mills recommended in Orobona (2015). Active monitoring of quality assurance sample results only proceeded for a short time before AMUSA assumed management of the Mine, and the 2018-2019 DD program results were only reviewed upon resumption of Cliffs’ management preceding this TRS.
8.2.2Reference Materials (Standards)
A crude ore standard (HTCCOS) was prepared in 2009 from ore-grade material collected from the HibTac Mine. A 10-tonne (metric ton of 2,204.6 lb) sample was crushed to -¼ in., homogenized, and then split into approximately 5 kg subsamples by the Coleraine Mineral Research Laboratory of the University of Minnesota. The standard is analyzed according to the current crude ore characterization procedure (using three timed grinds) and undergoes the same series of preparation, magnetic separation, and chemical assay steps that crude ore samples undergo. Use of this standard commenced in conjunction with assaying of drill core obtained during the 2010 HibTac drilling program.
8.2.2.1Sample Preparation
For every standard tested at Lerch, a screen size analysis is run to ensure consistency in sample preparation to -20 mesh. Results are tabulated on a tracking spreadsheet and illustrated in Figure 8-3. The spreadsheet chart template used for analysis is not shared with Lerch.
Results of screen analyses are entirely within historical norms established during baseline testing conducted prior to the study period (red limits on Figure 8-3), and it is Cliffs’ and SLR QP’s opinion that the sample preparation process meet industry best practice. Due to the very consistent overall results illustrated in Figure 8-3, mean (x̄) and moving range (image_31b.jpg) control charts created for each individual %-passing and sieve-size range bin are not detailed in this TRS.

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    60



Figure 8-3:    Sieve Analysis of HibTac Crude Ore Standards (HTCCOS) Prepared to 100% -20M
8.2.2.2Liberation Index Study Analytical Test Work
Available data include all standards analyzed since 2010. Following a period of standard sampling without QA/QC analysis from 2010 through 2015, statistical process control (SPC) charts for individuals x̄ and image_31b.jpg were re-established in 2016 for all physical and chemical measurements and calculated variables from the LIS crude ore characterization protocol. Active monitoring of QA sample results only proceeded for a short time before AMUSA assumed management of the Hibbing JV, and the 2018-2019 DD program results were only reviewed upon resumption of Cliffs’ management preceding this report. Therefore, there has only been a limited window of active monitoring and investigations of failures.
Data are currently tracked and charted on a spreadsheet stored on the CTG LAN.
Control limits are based on the common approach for Shewhart control charts. For “individuals”, control limits are ± 2.66 * Meanmoving range. For the MR charts, control limits are 3.267 * Meanmoving range. In both cases, 1σ and 2σ are respectively one-third and two-thirds of the difference between the mean(s) and control limits. This approach is commonly used in statistical process control software and narrows control limits relative to three standard deviations (SD) from the mean of the data.
8.2.2.2.1Crude Satmagan Magnetic Iron 2016-2019
Satmagan MagFe is measured on the 10-minute grind prior to DT concentration using the Satmagan instrument (Figure 8-4). There were two instances of points beyond the control limits during the study period. Ensuing data quickly returned to control, and the instances were not investigated. However, the
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    61



incidence for standard sample HT0001325 is coincident with increased crude Fe, so the higher Satmagan Fe may be “real” and a function of variation in standard mixing/splitting. Historically, crude MagFe has been the single most important variable for reporting of Mineral Resources at HibTac.
Figure 8-4:    Crude Satmagan Magnetic Iron 2016-2019

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    62



8.2.2.2.2Liberation Weight Recovery 2010-2019
Liberation weight recovery at target silica is calculated from grade-recovery curves generated by three timed grinds. Figure 8-5 illustrates the good continuity of Liberation weight recovery over the entire period of quality sampling. For the study period’s standards results (highlighted in orange), the only failures were stretches of more than nine points on either side of the CL, and no samples were outside of tolerance limits. These occurrences were not investigated. The control limits here are based on all the data collected since 2010; however, control limits based on the study period are virtually identical.
Figure 8-5:    Liberation Weight Recovery 2010-2019

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    63



8.2.2.2.3Modeled -200 Mesh Davis Tube Weight Recovery
Modeled -200 mesh DT weight recovery is also calculated from grade-recovery curves generated by three timed grinds. Theoretically, the -200 mesh DT parameters of weight recovery and concentrate silica can be modeled from the Liberation Index data (Mahin and Graber, 2001). The key to this modeling is the assumption that the relative grind fineness at 100% -200 mesh possesses a relatively narrow range of equivalent percent passing 325 mesh based on 3,600 like samples that were each subjected to the LIS and DT tests. If so, a target 325 mesh number can be utilized in the grind-grade-recovery equations of the LIS test results to predict the -200 mesh parameters. Modeled -200 mesh DT weight recovery is the weight recovery used in HibTac ore grading and Mineral Resource estimations. Figure 8-6 illustrates the good continuity of weight recovery over the entire period of quality sampling. For the study period’s standards results, no failures were noted. The control limits here are based on all the data collected since 2010; however, control limits based on the study period are virtually identical.
Figure 8-6:    Modeled -200 mesh Davis Tube Weight Recovery
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    64



8.2.2.2.4Modeled -200 Mesh Silica (unadjusted)
Modeled -200 mesh DT silica is also calculated from grade-grind curves generated by three timed grinds. Theoretically, the -200 mesh DT parameters of weight recovery and concentrate silica can be modeled from the Liberation Index data. The key to this modeling is the assumption that the relative grind fineness at 100% -200 mesh possesses a relatively narrow range of equivalent percent passing 325 mesh. If so, a target 325 mesh number can be utilized in the grind-grade-recovery equations of the LIS test results to predict the -200 mesh parameters.
The apparent step change during the reporting period observed in Figure 8-7 was not investigated, as it occurred during the period of AMUSA’s management of HibTac. However, the step is coincident with a new DD analysis campaign following a year hiatus between HibTac DD programs. In that time, there would have been wear on the grinding mills from other site(s) DD programs.
Figure 8-7:    Modeled -200 Mesh Davis Tube Silica (unadjusted)
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    65



8.2.2.2.5kWh/LT 2016-2019
The Liberation Index, kWh/LT, at target silica is calculated from power-grade curves generated by three timed grinds. It is a measure of the relative power required to achieve target silica liberation.
Observed step changes and periods of potential drift during the reporting period observed in Figure 8-6 were not investigated, as they largely occurred during the period of AMUSA’s management of HibTac.
Figure 8-8:    kWh/LT 2016-2019

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    66



8.2.2.2.6Sat Ratio
Sat Ratio (Figure 8-7) is calculated as the ratio of Satmagan MagFe and total Fe of the 10-minute DT concentrate. It is used to model oxidation zones of waste rock (Sat Ratio < 0.9).
There were four sequential points hovering near or above the upper control limit. All other data were in apparent control, and the occurrence was not investigated.
Figure 8-9:    Sat Ratio 2016-2019

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    67



8.2.2.2.7Grind at Target Silica
Grind (%-325 mesh) at target silica (Figure 8-8) is calculated from grind-grade curves generated by three timed grinds, where the-325 mesh fraction is screened and weighed from each timed grind’s mill product, and silica is measured for each grind’s DT concentrate. The step change in higher grind at target silica as seen on the control chart was not investigated, and its significance was not determined, as it occurred during AMUSA’s management of the HibTac operation. However, the step is coincident with a new DD analysis campaign following a year hiatus between HibTac DD programs. In that time, there would have been wear on the grinding mills from other site(s) DD programs.
Figure 8-10:    Grind at Target Silica
8.2.2.2.8HTCCCOS Standards Results Discussion
Additional control charts are maintained and monitored for feed kWh/LT and individual timed-grinding results (6-minute, 10-minute, 14-minute) for DT concentrate Satmagan MagFe, %-325 mesh (grind),
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    68



weight recoveries, and silica that were used to calculate final results at target silica. Results for individual timed grinds should be the first element of investigation for any out-of-control final results. Prior to submission of final results to Cliffs, the Lerch laboratory manager reviews the coefficient of determination (r2) for each grind versus grade-power-recovery curve generated by the three timed grinds for all standards samples (and normal samples in the dispatch). Any r2 less than 0.9 triggers an automatic re-analysis of the DT products for each grind of the LIS test, so Cliffs does not typically receive results that fail this internal laboratory check.
Standards generally performed within the range of acceptability for the main derived variables (±3σ) except where noted above. These instances were not investigated, largely due to transition to external site management. As-received monitoring and investigation of “failures” or trends is recommended by Cliffs and SLR QP for the future.
8.2.3Duplicates
Beginning with the 2010 drilling program, a program of assaying duplicate samples was incorporated into the standard HibTac work program. Preparation duplicate samples consist of paired assays split from the –¼ in. coarse crush material and then prepared and analyzed in the same sample batch. The preparation duplicates are not “blind.” To date, all duplicate sample pairs have been assayed by Lerch in Hibbing, Minnesota.
For each analyte or measured/calculated variable, plots generated include x-y (scatter) and a time series of mean relative percent difference.
Scatter plots include the standard least squares trendline (the typical regression used by spreadsheet software). A second least squares trendline is generated assuming all error in “X.” The RMA line, the reduced major axis, assumes that neither axis depends on the other and is a best-fit regression that should closely trend with the 1:1 line for a sample set in good precision.
Control limits to the mean relative percent difference between duplicate pairs are based on 3SD from the mean of data, where 1σ and 2σ are obviously 1SD and 2SD from the mean of the data. The Shewhart control approach used for the standards is not appropriate, since the QC metrics are not currently set up to track moving range.
Also monitored are Thompson and Howarth plots (Thompson and Howarth, 1978), where the mean of each replicate pair is plotted against the absolute difference between the two analyses. On these plots, lines are drawn for any predefined precision level (e.g., 10% and/or 20%) and percentile (e.g., 90th or 99th), and the overall quality of the replicate analyses at different concentration ranges can be grasped at a glance. Precision within 20% is recommended for HibTac data unless otherwise noted. Pairs that deviate from the general trend should be identified and discussed with the laboratory. Two additional ways to plot the same results include plotting the mean of duplicates against the ratio between duplicates and the mean of duplicates against the relative standard deviation (RSD). An acceptable RSD of 15% is approximately equal to the recommended 20% relative difference acceptance. Each plot has advantages and disadvantages; using all four provides insight into data quality and analytical precision.
In the following figures (Figure 8-11 through Figure 8-16), data from the 2016-2019 study period is plotted as orange points to compare with the larger set of historical results dating back to 2010 (blue
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    69



points). Control limits and trend lines are based on the larger population. As the resource QA database expands, results will be e-mailed to the site geologist and shared in a central location.
8.2.3.1Crude Satmagan Magnetic Fe Preparation Duplicates
For all duplicate pairs from the 2016-2019 study period but one, the absolute difference is within 10% of the mean for Satmagan MagFe, and the RMA is very close to the 1:1 line, demonstrating excellent precision. For the single data point, the absolute difference is at just under 20% of the mean. The time series of mean relative percent difference demonstrates improved precision with time, corresponding to process improvements implemented immediately before the study period (Orobona, 2015) and monitoring of QA/QC results. Results triggered no investigations.
8.2.3.2Modeled -200 Mesh Davis Tube Weight Recovery Preparation Duplicates
Modeled -200 mesh DT weight recovery is calculated from grade-recovery curves generated by three timed grinds. Theoretically, the -200 mesh DT parameters of weight recovery and concentrate silica can be modeled from the Liberation Index data. The key to this modeling is the assumption that the relative grind fineness at 100% -200 mesh possesses a relatively narrow range of equivalent percent passing 325 mesh based on 3,600 like samples that were each subjected to the LIS and DT tests. If so, a target 325 mesh number can be utilized in the grind-grade-recovery equations of the LIS test results to predict the -200 mesh parameters.
For all duplicate pairs from the 2016-2019 study period, the absolute difference is within the recommended 20% of the mean for weight recovery (all are within 10% for recoveries within the range of ore grades), and the RMA of the greater population is very close to the 1:1 line, demonstrating excellent precision. The time series of mean relative percent difference demonstrates improved precision with time. Results triggered no investigations.
Liberation weight recovery (weight recovery at target silica calculated from grade-recovery curves generated by three timed grinds) results are virtually identical and are not illustrated here.
8.2.3.3Modeled -200 Mesh Davis Tube Silica (unadjusted)
Modeled -200 mesh DT silica is calculated from grind-grade curves generated by three timed grinds. Theoretically, the -200 mesh DT parameters of weight recovery and concentrate silica can be modeled from the Liberation Index data. The key to this modeling is the assumption that the relative grind fineness at 100% -200 mesh possesses a relatively narrow range of equivalent percent passing 325 mesh. If so, a target 325 mesh number can be utilized in the grind-grade-recovery equations of the LIS test results to predict the -200 mesh parameters.
For all but two duplicate pairs from the 2016-2019 study period, the absolute difference is within the recommended 20% of the mean for unadjusted silica, and the RMA of the greater population is very close to the 1:1 line, demonstrating acceptable precision. Results triggered no investigations.
8.2.3.4kWh/LT (Liberation Index) Preparation Duplicates
The Liberation Index, kWh/LT, at target silica is calculated from power-grade curves generated by three timed grinds. For all duplicate pairs from the 2016-2019 study period, the absolute difference is within the recommended 20% of the mean for the Liberation Index (all but one are within 10%), and the RMA is very close to the 1:1 line for the greater population, demonstrating excellent precision. The time series
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    70



of mean relative percent difference demonstrates improved precision with time, corresponding to process improvements implemented immediately before the study period (Orobona, 2015) and monitoring of QA/QC results. Results triggered no investigations.
8.2.3.5Grind (%-325 Mesh) Preparation Duplicates
Grind at target silica is calculated from grind-grade curves generated by three timed grinds. For all duplicate pairs from the 2016-2019 study period, the absolute difference is within the recommended 20% of the mean for Grind estimated at target silica (all but three are within 10%), and the RMA of the greater population is very close to the 1:1 line, demonstrating excellent precision. The time series of mean relative percent difference demonstrates improved precision with time, corresponding to process improvements implemented immediately before the study period (Orobona, 2015) and monitoring of QA/QC results. Results triggered no investigations.
8.2.3.6Sat Ratio Preparation Duplicates
The Sat Ratio is the proportion of Satmagan MagFe to total Fe from wet chemistry in the 10-minute grind Davis Tube concentrate. For all duplicate pairs from the 2016-2019 study period, the absolute difference is within the recommended 20% of the mean for silica estimated at target Grind (almost all are within 10%), and the RMA is very close to the 1:1 line for the greater population, demonstrating excellent precision. The time series of mean relative percent difference demonstrates slightly improved precision with time, corresponding to Satmagan calibration improvements implemented immediately before the study period (Orobona, 2015) and monitoring of QA/QC results. Results triggered no investigations.

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    71



Figure 8-11:    Crude Satmagan Magnetic Fe Preparation Duplicates

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    72



Figure 8-12:    Modeled -200 Mesh Davis Tube Weight Recovery Preparation Duplicates

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    73



Figure 8-13:    Modeled -200 mesh Davis Tube Silica Preparation Duplicates

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    74



Figure 8-14:    kWh/LT (Liberation Index) Preparation Duplicates

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    75



Figure 8-15:    Grind (%-325 Mesh) Preparation Duplicates

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    76



Figure 8-16:    Sat Ratio Preparation Duplicates


Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    77



8.2.3.7Duplicates Discussion
Additional charts are maintained and monitored for crude Fe, 10-minute concentrate Fe, and for individual timed-grinding results (6-minute, 10-minute, 14-minute) for DT silica, Satmagan MagFe, %-325 mesh, and weight recoveries that were used to calculate final results at target silica. Results for individual timed grinds should be the first element of investigation for any out-of-control final results. Also, prior to submission of final results to Cliffs, the Lerch laboratory manager reviews the coefficient of determination (r2) for each grind versus grade-power-recovery curve generated by the three timed grinds for all duplicate samples (and normal samples in the dispatch). Any r2 less than 0.9 triggers an automatic re-analysis of the DT products for each grind of the LIS test, so Cliffs does not typically receive results that fail this internal laboratory check.
The RSD is widely used in analytical chemistry to express the precision and repeatability of an assay. For the case of a duplicate pair, RSD is the square root of the square of the difference divided by two, divided by the duplicate pair mean:
RSD= √ [(x1 – x2)2/2] / (x1 + x2)/2, expressed as a percentage
In general, variation in the precision of grading variables is statistically negligible with increasing grade. However, the key analytical flowsheet variable controlling the accuracy of these assays is believed to be the recovery of concentrate from the Davis Tube. Virtually all campaign samples were well within an acceptable RSD of 15% for all major grading variables, which is approximately equal to a 20% relative difference acceptance.
Duplicate pairs are analyzed close enough in sequence that time-based biases are not observed in scatter plots or ratio plots for any variable.
8.2.4Blanks
Due to the preponderance of metallurgical testing rather than traditional assays, blanks are not used in conjunction with QA/QC procedures, nor are they relevant.
8.2.5Check Assays
Check assays are not currently conducted for HibTac drill core. Cliffs’ Northshore Mine has the equipment and capability to conduct similar test work. Potential external providers include the Natural Resources Research Institute (NRRI) laboratory in Coleraine, Minnesota and Midland Research in Marble, Minnesota. Lerch is a small, independent provider that relies on Cliffs’ facilities and equipment; strategic evaluation of additional laboratory providers should be considered, and a calibration study has recently been initiated by NRRI as possible overflow support for Cliffs’ nearby United Taconite drill program.
8.3Conclusions
QA/QC results for the period 2016-2019 are appropriate for the style of mineralization and are sufficient to generate a drill hole assay database that is adequate for mineralized material estimation by international reporting standards and supported with good agreement between planned and actual production over more than 45 years. Data are specifically robust for the key grading variables of -200 mesh weight recovery and magnetic iron for the study period; however, lack of analysis during the study
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    78



period prevented investigation and documentation of failures that could have explained variation and further reduced variability.
The SLR QP is of the opinion that HibTac’s sample preparation and analytical QA/QC results from the 2016-2019 reporting period are acceptable to validate the drill hole assay database used for Mineral Resource estimation and meet S-K 1300 minimum standards for reporting to the SEC. Sample preparation and analyses follow established, written procedures maintained by Lerch. The laboratory is accredited with ASQ/ANSI ISO-9001:2015 for its system of quality management. The samples are securely delivered to the assay laboratory, and the logging and sampling methods are professionally conducted in an unbiased manner.
8.4Recommendations
1.Quality results documented in this report support an initial standard and duplicate submission rate of 5% each.
2.HibTac should submit a small number of “preparation duplicate” samples to a secondary accredited laboratory to document capability(ies), cost, and time-efficiency of alternate provider(s) and confirm that results are comparable to those of the current provider.


Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    79



9.0DATA VERIFICATION
The SLR QP visited HibTac on April 28, 2021. While at site, the QP spoke with the technical team and found them to have a strong understanding of the mineralization types and their processing characteristics, and of how the analytical results are tied to the results. SLR received the project data from Cliffs for independent review as a series of MS Excel spreadsheets, a Vulcan database, and associated digital files (lithologic surfaces, topography surface, and pit shapes).
Data verification is the process of confirming that data has been generated with proper procedures, transcribed accurately from its original source into the project database, and is suitable for use for the purpose of the TRS.
During 2021, a data verification exercise was performed by Cliffs geologists (Larson, 2021) and audited by SLR for a random subset of HibTac drill holes for database drill collar, assay, and geotechnical data against as‐drilled records. Approximately 10% of the drill holes (30 holes of 301 HibTac DD holes) within the current, 2021 LOM perimeter footprint were selected for database verification. Holes were selected to provide spatial coverage of the future mining areas and represent holes from a variety of time periods. Figure 9-1 shows the location within the HibTac LOM areas of the drill holes selected for verification.
The following aspects were reviewed:
Collar survey information relative to historical logs or paper recorded logging. Comparison of database drill collar elevations against logs shows that the elevations of six of 30 drill holes were rounded to the nearest foot, likely due to rounding, resulting in lower-precision vertical control on the drill holes. The six audited holes drilled between 2014 and 2018 show discrepancies in horizontal control, approximately three feet north‐south and 55 ft east-west. These discrepancies were likely introduced during a coordinate conversion exercise.
A comparison of original lithology logging to the current database. Original classification of the Biwabik IF into the Upper Slaty, Upper Cherty, Lower Slaty, and Lower Cherty members has long been recognized throughout the Mesabi District. Throughout the history of drilling, HibTac geologists have evolved the classification scheme to further subdivide the original members into smaller subunits, each having continuity across appreciable areas. In preparation for the use of Vulcan for geologic modeling in 2019, HibTac’s geological staff developed the currently utilized classification of the Biwabik IF that recognizes 16 subunits based on lithologic, metallurgical, and mineralogical characteristics within the local mine area.
Printed/scanned lithologic logs were located for 29 of the 30 drill holes. Lithologic logs were compared against hard copy and scanned original construction records. Parameters checked include interval footages and logged lithologic units. All drill logs selected for examination were found to have recorded a geological interpretation based on the classification scheme that was in use at the time of drilling. No discrepancies were identified or noted during Cliffs’ internal audit.
Assays used for modeling crude ore grades and characteristics at HibTac are direct measurements taken from laboratory assays. Printed/scanned assay data sheets were located for 28 of the 30 drill holes. Hard copy or scanned assay data sheets were not located for any drill holes for calendar years 1991 and 1995. A hard copy or digital scanned log was not located for drill hole 201552. Database assay values for 9912 and 9945 reflect the original ‐200 mesh DT
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    80



assays, and not later LIS re-assays. Thirteen of twenty-four ‐200 mesh DT assays for hole 200028 are updated in the database to reflect later LIS re-assays. Geotechnical data for drill holes from 2014‐2019 are not included with the drill logs.
Assay records were limited to a check on the total iron (crude). The selected holes span essentially the life span of the property and include holes that were assayed using both the single-grind, ‐200 mesh DT assay and the three‐grind Liberation Index assay (since 2000). Since the method for calculating grading parameters such as weight recovery, magnetic iron, and concentrate silica are calculated slightly different for the two assay methods and are not reflected as raw data, comparison between assay results and database values are limited to total iron (crude).
Seventy-eight feet of 6,165.2 cumulative assay feet were missing from two drill holes in the database. In addition, total iron (crude) was missing for 168 ft in one drill hole. No discrepancies between hard copy or digital (scanned) total iron and database iron values were noted.
HibTac has been in near-continuous production for almost 45 years. There has been adequate drilling to develop the Mineral Resource models that have been used in the Mineral Reserve models and for historically successful mine planning. The Mineral Resource models have performed well, indicating the drill hole database contains valid data. The SLR QP is of the opinion that database verification procedures for HibTac comply with industry standards and are adequate for the purposes of Mineral Resource estimation.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    81



Figure 9-1:    Drill Hole Database Verification Map
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    82



10.0MINERAL PROCESSING AND METALLURGICAL TESTING
10.1Historical Metallurgical Testing
Metallurgical testing was conducted in the 1970s to develop the processing plant flowsheet. The testing resulted in the successful commissioning of the Plant. A description of the current process and plant performance is provided in Section 14 of this TRS. As the mine has expanded over the years, drill core samples were taken and analyzed to classify ore and waste rock for resource estimation, reserve classification, and ore grading. The ore is material that has metallurgical properties suitable for economic processing. These properties have been developed based on previous test work and processing plant experience.
Hibbing Taconite is a registered ISO 9001:2015 – ASQ/ANSI/ISO 9001:2015 company by SRI Quality System Registrar. This certification demonstrates the company’s ability to consistently provide products and services that meet customer, applicable statutory, and regulatory requirements, and aims to enhance customer satisfaction through the effective application of the system, including processes for improvement of the system and the assurance of conformity to customer and applicable statutory and regulatory requirements. Hibbing Taconite has held an ISO9001 Quality Management Certification since 1997.
The HibTac laboratory has written Standard Operating Procedures (SOP) for each of the tests conducted. The procedures follow ASTM procedures where applicable. Calibration and standard checks are performed regularly to ensure precise and accurate results.
10.2Sampling and Metallurgical Testing
10.2.1Drill Sample Preparation and Testing
Hibbing Taconite has historically conducted programs of systematic infill and step-out diamond drilling to identify the Mineral Resource and update mine plans accordingly. The drill core analysis is performed by Lerch. Lerch is an ISO9001:2015 Quality Management certified company. More information on drill core analysis can be found in Section 8 of this TRS.
10.2.2Process Plant Metallurgical Sampling and Testing
10.2.2.1Process Plant Routine Sample Locations
Hibbing Taconite conducts plant sampling for the purposes of process control and product quality reporting for compliance with daily plant and cargo specifications. These samples are collected on a routine basis from established sample collection points. The concentrate sample is a composite of concentrate samples composited throughout the shift. Filter cake samples are composited from the filter cake table feeders on each line. Green-ball samples are collected from each balling drum and composited by line. Pellet samples are collected from the discharge end of each individual furnace every three hours.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    83



10.2.2.2Concentrate and Pellet Sampling Procedures
Hibbing Taconite has an onsite metallurgical laboratory that continuously samples concentrate and pellets. The results are used to make process adjustments and ensure that a high-quality pellet is produced.
Plant concentrate is continuously run through the Nuclear On-Line Analyzer (NOLA) to measure the silica (SiO2) content. This analysis guides the concentrator in making process adjustments to meet silica specifications. A composited shift sample from the NOLA is analyzed for grind, Blaine (specific surface area of fines per mass), Satmagan iron, ferrous iron, silica, and trace elements. A DT analysis is run on the daily composite sample to determine percent magnetic iron. This information is used to monitor the ore blend and process performance.
10.2.2.3Plant Concentrate Sample Preparation Flowsheet
Figure 10-1 presents the concentrate sample handling and preparation procedures. Filter cake samples are collected every three hours from each phase of the plant (phase 1 is furnace lines 1 and 2; phase 2 is furnace line 3). Each sample is analyzed for moisture, Blaine, and grind. Green-ball samples are collected every three hours from each line and analyzed for moisture.
Figure 10-1:    Plant Concentrate Sample Handling Flowsheet
10.2.2.4Pellet Sample Preparation Flowsheet
Figure 10-2 presents the pellet sample handling and preparation procedures. Pellet samples are collected every three hours from each running line. An analysis is carried out to determine the compression strength and after tumble percent +¼ in. and percent -28 mesh. Pellets are also composited into shift and daily samples, which are analyzed for size distribution, iron, silica, and trace
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    84



elements. Silica and trace elements are determined by an XRF spectrometer. These analyses determine what process adjustments are needed to produce a high-quality product and assist in determining the cause of any quality issues. Below is the pellet sample handling flowsheet.
Figure 10-2:    Pellet Sample Handling Flowsheet
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    85



10.2.3Material Characterization
10.2.3.1Ore Quality Specifications
Ore quality specifications are established based on historical testing and experience. The current plant ore specifications are shown in the Table 10-1.
Table 10-1:    Plant Ore Quality Specifications
Cleveland-Cliffs Inc. – Hibbing Taconite Property
SpecificationTargetLimits
Silica4.8%4.4% - 5.4%
DD Weight Recovery27.79%25.0%-31.4%
Percent of 1-5/6 ore75%52% - 100%
Percent of 1-3/4 ore15%0% - 48%
Percent of 1-7 ore7%0% - 20%
Liberation Index11.97 kW/LT10.0 kW/LT – 12.8 kW/LT
Percent Magnetic Iron19.3%19.0% - 23.0%
10.2.3.2Concentrate Specifications
The key concentrate specification is the silica. HibTac’s concentrate silica specification is 3.80% to 4.30%.
10.2.3.3Pellet Quality Specifications
The 2021 pellet quality specifications are presented in Table 10-2. The specifications are reviewed annually (and modified if needed) to meet the owners’ and customers’ requirements.
Table 10-2:    2021 Pellet Quality Specifications
Cleveland-Cliffs Inc. – Hibbing Taconite Property
Plant Product (Daily)StandardHigh Compression
% Dry Iron66.15 + 0.2066.00 + .30
% Dry SiO2
4.50 + 0.204.50 + .20
% +1/4 in. A.T.96.0 + 0.897.0 + .5
% -28 Mesh A.T.3.6 + 0.52.7 +.5
Average Compression (lb)470+ 40560+ 20
% -300 lb Compression< 15.3
% Sizing +1/2 in.< 5.0< 5.0
% Sizing -1/2 +3/8 in.93.0 + 2.093.0 + 2.0

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    86



Boat Cargo (Boat)StandardHigh Compression
% Dry Iron
66.15+ 0.20
66.00 + .30
% Dry SiO2
4.50 + 0.20
4.50 + .20
% +1/4 in. B.T.
> 97.0
> 96.0
% +1/4 in. A.T.
> 95.2
> 96.0
% -28 Mesh A.T.
3.8 + 0.5
2.9 + .5
Average Compression (lb)
460+ 40
> 510
% -300 lb. Compression
< 15.3
% Sizing -1/2 in. + 3/8 in.
92.0+ 2.0
92.0 + 2.0
% Moisture
< 3.25
< 4.0

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    87



11.0MINERAL RESOURCE ESTIMATES
11.1Summary
Mineral Resource estimates for the HibTac deposit were prepared by Cliffs and audited and accepted by SLR using available data from 1938 to 2019.
The 2021 HibTac Mineral Resource estimate was completed using a conventional block modeling approach. The general workflow included the construction of a geological or stratigraphic model in Vulcan representing the Biwabik IF from drill hole logging and sampling data, which was used to define discrete domains and surfaces representing the upper contact of each unit of non-iron formation and iron formation subunits. Cliffs used the geologic model in Vulcan for resource estimation. Sub-blocked model estimates used inverse distance squared (ID2) and length-weighted, 10 ft, uncapped composites to estimate relevant analytical variables (Satmagan MagFe, wtrec, kWhr/LT, Sat Ratio, and silica in concentrate) in an omni-directional, single search-pass approach, using hard boundaries between subunits, ellipsoidal search ranges, and search ellipse orientation informed by geology. Average density values are calculated in the block model as a function of Satmagan MagFe and total iron content.
Mineral Resources were classified in accordance with the definitions for Mineral Resources in S-K 1300. Blocks were classified as Measured, Indicated, or Inferred using distance-based and qualitative criterion. Cliffs classifies the Mineral Resources based primarily on drill hole spacing, while classification is influenced by geologic continuity, ranges of economic criteria, and reconciliation. Some post-processing is undertaken to ensure spatial consistency and remove isolated and fringe blocks. The resource area is limited by a polygon and subsequent pit shell based on practical mining limits. A block of mineralized material is classified as Measured if the distance to the nearest drill hole is within 400 ft and estimated with interpolation pass 1. If the nearest drill hole is between 400 ft and 1,200 ft and estimated in pass 2, it is classified as Indicated. All remaining blocks are classified as Inferred; they are considered waste and excluded from the Mineral Resource estimate.
Estimates were validated using standard industry techniques including visual grade comparisons, reviews of block model coding, and statistical reviews of the global accuracy of the estimated variables and evaluation of the local accuracy through the preparation of comparative statistics.
To ensure that all Mineral Resource statements satisfy the “reasonable prospects for eventual economic extraction” requirement, the Mineral Resource estimate for HibTac considered factors significant to technical feasibility and potential economic viability. Mineral Resources were defined and constrained within LOM phase units prepared by Cliffs. Mineral Resources with an effective date of December 31, 2021, exclusive of Mineral Reserves, using a cut-off grade greater than 13% MagFe are presented in Table 11-1.

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    88



Table 11-1:    Summary of Mineral Resource - December 31, 2021
Cleveland-Cliffs Inc. – Hibbing Taconite Property
ClassCrude Ore Mineral ResourcesCrude Ore MagFeProcess RecoveryWet PelletsCliffs Attributed BasisCliffs Crude Ore Mineral ResourcesCliffs Wet Pellets
(MLT)(%)(%)(MLT)(%)(MLT)(MLT)
Measured10.119.225.4%2.685.38.62.2
Indicated0.618.725.0%0.185.30.50.1
Total Measured + Indicated10.719.225.4%2.785.39.12.3
Notes:
1.Tonnage is reported in long tons (equivalent to 2,240 lb).
2.Mineral Resources are reported exclusive of Mineral Reserves and have been rounded to the nearest 100,000.
3.Mineral Resource estimates are based on a cut-off grade formula dependent on a few variables and restricted to material greater than 13% MagFe.
4.Classification of Mineral Resources is in accordance with the S-K 1300 classification system.
5.Bulk density is calculated based on Satmagan magnetic iron and total iron content.
6.Mineral Resources are 85.3% attributable to Cliffs and 14.7% attributable to U.S. Steel.
7.Mineral Resources that are not Mineral Reserves do not have demonstrated economic viability.
8.Numbers may not add due to rounding.
The SLR QP is of the opinion that with consideration of the recommendations summarized in Sections 1 and 23 of this report, any issues relating to all relevant technical and economic factors likely to influence the prospect of economic extraction can be resolved with further work. Hibbing Taconite has been in operation for many years, and land and mineral control has been long established. There are no other known legal, social, or other matters that would affect the development of the Mineral Resources.
While the estimate of Mineral Resources is based on the QP’s judgment that there are reasonable prospects for eventual economic extraction, no assurance can be given that Mineral Resources will eventually convert to Mineral Reserves.
11.2Resource Database
Cliffs maintains a property-wide drill hole database in acQuire, with exports used to populate Vulcan modeling software. The HibTac Vulcan resource database dated August 28, 2020 includes drill hole collar locations, assay, and lithology data from 2,655 drill holes totaling 560,136 ft of drilling, completed between 1974 and 2019. Of these, only 1,689 drill holes pertain to the resource database and have a total of 330,158 ft of drilling. The minimum depth is 24.0 ft, and the maximum depth is 927.0 ft; the average depth is 195.5 ft. The drilling is on an approximate 400 ft x 400 ft grid. Figure 11-1 shows the location of the drill holes at HibTac.

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    89



Figure 11-1:    Drill Hole Location Map
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    90




There are a total 17,405 lithology records and 27,950 assay (samples) records that have values for at least one key economic variable (KEV). Key economic variables include Satmagan MagFe, wtrec, kWhr/LT, Sat Ratio, and silica in concentrate.
11.3Geological Interpretation
11.3.1Stratigraphy
The geologic model includes surfaces generated in Vulcan for structural floors of the stratigraphic units. The stratigraphic units in the drill hole database are loaded into the Vulcan software Integrated Stratigraphic Modeler to create Vulcan map files, which are then used to create grid surfaces for the floor of each unit. Table 11-2 shows the stratigraphic units that are modeled in this way. Subunits 1-7, 1-6, 1-5, 1-4, and 1-3 are considered to be ore types. All other subunits are considered to be non-ore types.
Table 11‑2: Modeled Stratigraphic Units
Cleveland-Cliffs Inc. – Hibbing Taconite Property

UnitMember of Biwabik IFCodeOre
Stockpiles504No
Topographic surface500No
UC6Upper Cherty311No
UC5Upper ChertyNo
UC4Upper ChertyNo
UC3Upper ChertyNo
UC2Upper ChertyNo
UC1Upper ChertyNo
3-1*Upper Cherty311No
2-1Lower Slaty211No
1-8Lower Cherty181No
1-7Lower Cherty172Yes
171Yes
1-6Lower Cherty162Yes
161Yes
1-5Lower Cherty153Yes
152Yes
151Yes
1-4Lower Cherty141Yes
1-3Lower Cherty132Yes
131Yes
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    91



UnitMember of Biwabik IFCodeOre
8-3Lower Cherty831No
1-2Lower Cherty121No
1-0Lower Cherty101No
Top of Quartzite1No
The stratigraphic model is constructed using the integrated stratigraphic modeler package of Vulcan software. The modeling sequence progresses as follows:
Surfaces are created that are used in defining the rest of the geologic units:
Floor of glacial till or topography, and
Roof, floor, and structural thickness are created for each of the stratigraphic subunits:
The structural thickness and floor of the 161 subunit is created, then
The structural floor, thickness, and roof are created for each successive subunit overlying and underlying the 161, and
The Pokegama Quartzite (code 1) is given a constant thickness of 20 ft.
Units 131, 151, 161, and 171 are split using grid arithmetic and tested against elevation of the underlying and overlying subunits:
131: The 131 subunit is redefined as the lower 10 ft of the 131 subunit. The remaining upper subunit is defined as the 132 subunit,
151: The 151 subunit is redefined as the lower 10 ft of the 151 unit, the 152 is defined as the 20 ft above the new 151 subunit, and the remaining thickness is defined as the 153 subunit,
161: The 161 unit is redefined as the lower 15 ft of the 161 subunit, and the remainder of the original unit is defined as the 162 subunit, and
171: The 171 subunit is redefined as the lower 10 ft of the original 171 subunit, and the remaining thickness is defined as the 172 subunit.
Triangulation models are created of the floor grid for each of the units.
Fault zones are treated as vertical, and a fault layer in the Vulcan model effectively creates domain boundaries to the stratigraphic modeling.
The resulting units are listed in Table 11‑3 and used in the block model and in coding the composite file for mineralized material estimation.

Table 11‑3: Stratigraphic Codes for Block Model and Composites
Cleveland-Cliffs Inc. – Hibbing Taconite Property
UnitModel CodeOre
Stockpiles504No
3-1311No
2-1211No
1-8181No
1-7172Yes
171Yes
1-6162Yes
161Yes
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    92



UnitModel CodeOre
1-5153Yes
152Yes
151Yes
1-4141Yes
1-3132Yes
131Yes
8-3831No
1-2121No
1-0101No
Quartzite1No

11.3.2 Oxidation
Secondary oxidation within the deposit is structurally and stratigraphically controlled. Oxidation is found close to structural controls such as joints and faults and is also stratabound within specific geologic subunits. Oxidation zones are modeled using the ratio (Ratio) between Satmagan-measured magnetic iron and the measured total iron in a DT concentrate in the composite database. Ratios of less than 90 are considered to be oxidized waste. In addition, some intervals of poor core recovery that visually appear to be oxidized based on drill logs have been modeled in the oxidation zones despite Ratio values greater than 90. Wireframe solids are created for the oxidized zones for each stratigraphic unit. The solids are used to code the block model and the composite database. Figure 11‑2 shows unit 131 with composites and outlines of the oxidized areas.

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    93



Figure 11-2:    Unit 131 Triangulation with Oxidation Zones (Red Outlines) and Diamond Drill Holes
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    94



11.4.Resource Assays
The unweighted data presented in Table 11-4 is effective as of August 27, 2020.
Table 11-4:    Drilling Statistics
Cleveland-Cliffs Inc. – Hibbing Taconite Property
VariableCountMin (%)Median (%)Max (%)Mean (%)CV
smgfe18,9670.1015.2356.3213.620.52
wtrec19,3890.1022.7044.8620.110.50
silica17,9410.003.0046.004.000.67
ciron18,9550.1027.8359.2325.800.33
iron18,5330.1067.6798.6054.940.45
satfe16,4310.1065.2875.3759.170.27
ratio16,4220.0095.00235.0087.000.25
kw_lt8,7131.0012.3525.0012.320.52
libwt8,7090.1024.2682.4621.540.45
libfe5,6091.00NaN29.9920.390.29
lib3258,7100.1074.20150.0069.940.45
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    95



Figure 11-3:    Grade Histograms: Hibbing Assay Grade Histogram (MagFe_dt)
11.5.Compositing and Capping
11.5.1Treatment of High Value Assays
Where the assay distribution is skewed positively or approaches log-normal, erratic high-grade assay values can have a disproportionate effect on the average grade of a deposit. One method of treating these outliers in order to reduce their influence on the average grade is to cut or cap them at a specific grade level. Assessing the influence of outliers involves a number of statistical analytical methods to determine an appropriate capping value including preparation of frequency histograms, probability
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    96



plots, decile analyses, and capping curves. Using these methodologies, Cliffs examined the selected capping values for each of the KEVs. Capping limits for the KEVs are shown in Table 11-5.
Table 11-5:    HibTac Capping Limits for Key Economic Variables
Cleveland-Cliffs Inc. – Hibbing Taconite Property
VariableCap Level
smgfe (%)none
wtrec (%)none
silica (%)none
ciron (%)none
iron (%)none
satfe (%)none
rationone
kw_lt25
libwt100
libfe30
lib325150
11.5.2Compositing
The composite lengths used during interpolation were chosen considering the predominant sampling length, the minimum mining width, style of mineralization, and continuity of grade. Sample lengths range from 0.5 ft to 88.5 ft, with 49% of the samples taken at 10 ft intervals (Figure 11-4). Given this distribution, HibTac chose to composite to 10 ft lengths.
Compositing is performed using Vulcan software. A 10 ft, run-length compositing method is used, with the majority geological unit code recorded and intervals broken by geological domain. There are 39,999 composite intervals in the composite database. The average composite length is 6.72 ft. The smallest composite length is 0.001 ft, and the longest is 10 ft.
The SLR QP is of the opinion that this composite length is appropriate for this style of mineralization.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    97



Figure 11-4:    HibTac Histogram of Sample Length
11.6Variography
HibTac does not use kriging in its estimations as the deposit is homogeneous and stratigraphic. HibTac reported that in 2007 a limited variography study on Liberation Index variables was completed by Isobel Clark of Geostokos Limited; however, this study is not material to the Mineral Resource estimate and was not used.
Current estimation practices at HibTac do not incorporate modeled semi-variogram results within the estimation, as all variables are interpolated using an inverse distance weighted (IDW) approach. Cliffs elected to use ID2 for the estimation of quality variables.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    98



11.7Block Models
Sub-block and regularized block models were created by Cliffs’ geologists and audited by SLR to support the Mineral Resource estimate for the iron deposits at the Property.
11.7.1Base Sub-blocked Model
A sub-blocked base model (htcmodel2019_Q1_R1.bmf) for HibTac constructed in 2019 using Vulcan software is oriented with an azimuth of 90o, a dip of 0.0°, and a plunge of 0.0° to align with the overall strike of the mineralization within the model. Sub-blocking was used to give a more accurate volume representation of the geologic contacts (wireframes) in the gently dipping ore body using a parent block size of 100 ft by 100 ft in the X (along strike) and Y (across strike) direction and 2,000 ft in the Z (vertical or bench height) direction, honoring modeled geological surfaces. Sub-blocks are 100 ft (X) by 100 ft (Y) by 1 ft (Z). The model fully enclosed the modeled resource wireframes, with the model origin (lower-left corner at lowest elevation) at State Plane MN North NAD27 coordinates 2,004,450E, 33,595N and 0.0 (MASL) elevation. A summary of the block model extents is provided in Table 11-6. Stratigraphic codes as shown previously in Table 6-1 are assigned to the blocks during block model generation.
After the block model is created, the variable OXZONE is given a default value of “non oxidized”, and those blocks where the centroid is within the oxide wireframes solid are given a value of “oxidized.” The coding is done by stratigraphic unit using wireframes specific to each unit.
SLR considers the HibTac base block model parameters to be acceptable for a Mineral Resource estimate.
Upon completion of a base model by Cliffs’ geologists, the block model is delivered to the Cliffs Mine Engineering team for re-blocking and estimation of Mineral Resources and Mineral Reserves.
Table 11-6:    Block Model Parameters
Cleveland-Cliffs Inc. – Hibbing Taconite Property
DepositSchemaBearingPlungeDipOriginBlock Model Length (ft)Block Dimension (ft)
(°)(°)(°)XYZXYZXYZ
HibTacParent905002,004,450335,950054,60023,0002000100100200
Sub-block1001001
11.7.2Estimation Methodology
Grade interpolation at HibTac was conducted in Vulcan using ID2 and hard boundaries, with a one pass omni-directional search radius of 6,000 ft; a minimum of one and maximum of 15 samples were used per estimate within BIF units. The following variables are estimated or assigned into the block model using ID2 weighting:
Davis Tube Variables include:
ciron: Total Fe % in crude sample
smgfe: % magnetic Fe in crude sample;
wtrec: weight recovery from Davis Tube test;
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    99



iron: total Fe % in concentrate;
satfe: % magnetic Fe in concentrate;
ratio: ratio of satfe to iron;
silica: % silica in concentrate;
cmgfe: calculated crude magnetic Fe from 10-minute grind DT wtrec and concentrate Fe; and
oxidation code
Liberation Index variables include:
libwt: weight recovery at target concentrate silica;
lib325: %-325 mesh (grind) at target concentrate silica;
kw_lt: “Liberation Index”, relative power to achieve target concentrate silica;
ratcal: calculated ratio; and
oxidation code
The estimations are conducted as follows:
The DT variables are estimated in all blocks using only the non-oxidized composites. The variables for the non-ore types are estimated in a single pass per unit. For the ore types, the estimation is conducted for each variable separately.
The DT variables in the ore type blocks coded as oxidized are estimated using the oxidized composites. The non-ore type blocks are not re-estimated in this pass.
The Liberation Index variables are estimated in the ore type blocks using only the non-oxidized composites. The non-ore type blocks are not estimated, as there is little Liberation Index data in the non-ore types. The Liberation Index variables for the blocks coded as oxidized are estimated using the oxide composites. The non-ore type blocks are not estimated as there is little or no Liberation Index data in the non-ore types.
A temporary variable is estimated for the distance (ldist) to the closest composite used in the estimation for non-oxidized blocks. This estimation uses a single composite in the estimation.
A second temporary variable is estimated for the distance (ddist) to the closest composite used in the estimation for oxidized blocks. This estimation uses a single composite in the estimation.
11.7.3Resource and Reserve Regularized Block Model
A new mine planning block model for the Mine (htcmodel2019_Q1_R1_lr.bmf) was constructed from the base geologic model (htcmodel2019_Q1_R1.bmf). The mine planning block model was re-blocked (regularized) to 100 ft by 100 ft by 20.0 ft. Scripts within Vulcan are executed that add variables for economic evaluation and mine planning, flag in-pit stockpile backfills, flag the current topography, re-block the model to represent the selective mining unit (SMU), incorporate crude ore loss and dilution impacts, and reinforce cut-off grades.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    100



Iron formation can only be initially considered as “candidate” crude ore if the stratigraphy is one of the geologic subunits (as detailed in Section 6.0). All other geologic subunits are considered to be waste rock.
11.7.4Post-estimation Script Calculations
After estimation is completed, scripts functions include adding variables, removing negative values, flagging blocks with missing or bad data, calculating ratios, adjusting silica content by geologic layer, depleting resources to the current topographic surface, assigning ore type, and classification.
The empirical silica adjustment is based on reconciliations between the DT silica in the block model and concentrate silica produced by the less efficient plant. Silica_adj is used for ore quality prediction (ore grading) and reconciliations.
Candidate crude ore must satisfy the metallurgical cut-off grades described in Table 11-7 to be considered crude ore blocks:
Table 11-7:    Assignment of Ore Types and Metallurgical Cut-off Grades
Cleveland-Cliffs Inc. – Hibbing Taconite Property
Otype2 CodeDescription
0default
1
General waste (material below 131 layer and not mined)
2surface and in-pit stockpiles
3-10 (% smgfe) rock stockpile material.
4+10 (% smgfe) rock stockpile material.
5Low or lean Taconite (for layers 131, 132, and 141)
6High Taconite (layers 151, 152, 153, 161, 162)
7
High Taconite (layers 171, 172)
8
Upper Cherty Low Taconite (layers uc1, uc2, uc3, uc4, uc5, uc6)

Otype2 CodeKw_lt (%)Silica_adj (%)Ratiowtrec (%)smgfe (%)Ore Type
5< 17.0< 6.5> 90≥ 15.0≥ 13.01-3/1-4 ore
6< 17.0< 6.5> 90≥ 18≥ 15.01-5/1-6 ore
7> 90≥ 18≥ 18.01-7 ore
11.7.5Bulk Density
A density study was performed at HibTac in 2004-2005, comprising more than 1,100 core samples from the deposit. Samples were typically full 10 ft run lengths. Density is reported as a tonnage factor, ft3/LT, at HibTac. Results of the study indicate that tonnage factor is a function of the iron content of the rock, and that function is now used to assign density to the block model for the Biwabik IF. The tonnage
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    101



factor of glacial overburden is set at 18.0 ft3/LT, and the tonnage factor of stockpile material is set at 15.0 ft3/LT.
Currently, density for the Biwabik units is calculated in the block model as a function of Satmagan magnetic iron and total crude iron content. The equation is:
Density (LT/ft3) = 1 / (13.05566 – (0.03179 * (smgfe)) – (0.0420424 * (ciron)))
11.8Cut-off Grade
To ensure that all Mineral Resource statements satisfy the “reasonable prospects for eventual economic extraction” requirement, the Mineral Resource estimate for the HibTac deposit considered factors significant to technical feasibility and potential economic viability. Mineral Resources were defined and constrained within LOM phase units, prepared by Cliffs.
11.9Classification
Definitions for resource categories used in this TRS are those defined by SEC in S-K 1300. Mineral Resources are classified into Measured, Indicated, and Inferred categories.
Cliffs classifies the Mineral Resources based primarily on drill hole spacing; classifications are influenced by geologic continuity, ranges of economic criteria, and reconciliation. Some post-processing is undertaken to ensure spatial consistency and remove isolated and fringe blocks. The resource area is limited by a polygon and subsequent pit shell based on practical mining limits. A block of ore is classified as Measured if the distance to the nearest drill hole is within 400 ft and estimated with the interpolation pass 1. If the nearest drill hole is between 400 ft and 1,200 ft and estimated in pass 2, it is classified as Indicated. All remaining blocks are classified as Inferred; they are considered waste and excluded from the Mineral Resource estimate. Classification of LOM Mineral Resources inclusive and exclusive of Mineral Reserves is shown in Figure 11-5 and Figure 11-6, respectively.
In addition to numeric-based parameters, the relative confidence of all the data inputs during the assignment of the resource confidence category has been considered, including:
the reliability of the drilling data,
reliability or certainty of the geological and grade continuity, geological model interpretation, structural interpretation, and the assay database,
reliability of inputs to assess reasonable prospects for eventual economic extraction and cut-off grades (e.g., the ability to obtain permits, social license, etc.), and
legal and land tenure considerations.
The QP is of the opinion that the classification at HibTac is acceptable for the disclosure of Mineral Resources.

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    102



Figure 11-5:    LOM Phase Mineral Resource Classification
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    103



Figure 11-6:    Mineral Resource Classification Exclusive of Mineral Reserves
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    104



11.10.Block Model Validation
Validation of the Mineral Resource estimate results included visual grade comparisons, reviews of block model coding, and statistical reviews of the global accuracy of the estimated variables and evaluation of the local accuracy through the preparation of comparative statistics.
11.10.1Visual Inspection
Visual comparisons between the composites and estimated block grades were conducted on vertical sections and plan views. SLR is of the opinion that the estimated block grades reflect the local drill hole composite value and that the trends displayed are as intended. A plan-view comparison is shown in Figure 11-7.
SLR reviewed the smgfe variable relative to blocks, drilled grades, and composites. SLR observed that the block grades exhibited general accord with drilling and sampling and did not appear to smear significantly across sampled grades.

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    105



Figure 11-7:    Plan View Assay and Block smgfe
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    106



11.10.2.Comparative Statistics Composites vs. Block Grades
Comparative statistics between composite and block data was not reliable due to the clustered nature of the drill data. In place of this, the final estimated value was compared to a NN estimate, as a proxy of the declustered input data. No reconciliation with the short-term model was carried out; however, SLR understands that a comprehensive reconciliation study is currently underway.
The mean grades in composites and blocks compare favorably for the smgfe evaluated in Lower Cherty and Upper Cherty (Table 11-8, Figure 11-8 through Figure 11-10).
Table 11-8:    Comparative Statistics of Composites and Blocks for Key Economic Variables
Cleveland-Cliffs Inc. – Hibbing Taconite Property
DataDomain FieldDomainVariableCountMin (%)Max (%)Mean (%)CVStDev (%)% Mean ∆
Block Model
otype21smgfe162,7490.4725.998.990.413.6715.70%
Compositeotype21smgfe2,9580.1026.537.770.685.27
Block Modelotype23smgfe144,7190.0110.004.600.673.07
Compositeotype23smgfe
Block Modelotype24smgfe182,65710.0027.3413.850.172.39
Compositeotype24smgfe
Block Modelotype25*smgfe110,01113.0026.9516.340.101.5810.26%
Compositeotype25*smgfe4,9940.3027.1214.820.284.21
Block Modelotype26*smgfe147,02515.0027.3619.840.102.0119.45%
Compositeotype26*smgfe7,2270.1337.6916.610.457.55
Block Modelotype27*smgfe37,95015.0026.4917.490.101.7032.30%
Compositeotype27*smgfe1,7730.2329.0013.220.506.60
Block Modelotype28smgfe25413.0120.7815.720.101.6284.72%
Compositeotype28smgfe6950.1056.328.510.685.79
Block Modelotype21wtrec162,7490.0134.4213.520.395.2212.85%
Compositeotype21wtrec2,9510.1038.8011.980.657.76
Block Modelotype23wtrec144,7190.0032.737.950.766.07
Compositeotype23wtrec
Block Modelotype24wtrec182,6572.7642.1921.110.183.78
Compositeotype24wtrec
Block Modelotype25*wtrec110,01115.0935.2222.850.102.2912.48%
Compositeotype25*wtrec5,1710.5035.5620.320.357.09
Block Modelotype26*wtrec147,02518.0439.4428.360.102.9414.88%
Compositeotype26*wtrec7,4980.6042.7024.690.4110.11
Block Modelotype27*wtrec37,95019.0640.9925.160.112.8321.19%
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    107



DataDomain FieldDomainVariableCountMin (%)Max (%)Mean (%)CVStDev (%)% Mean ∆
Compositeotype27*wtrec1,7760.4044.5420.760.449.22
Block Modelotype28wtrec25417.4928.9022.550.122.7362.91%
Compositeotype28wtrec6870.1333.8913.840.618.48
Block Modelotype21silica162,7490.0026.007.000.413.0016.67%
Compositeotype21silica2,4190.0046.006.000.734.00
Block Modelotype23silica143,5670.0045.006.000.402.00
Compositeotype23silica
Block Modelotype24silica182,6570.0028.005.000.442.00
Compositeotype24silica
Block Modelotype25*silica110,0111.004.003.000.171.000.00%
Compositeotype25*silica4,9491.0015.003.000.361.00
Block Modelotype26*silica147,0251.004.003.000.211.000.00%
Compositeotype26*silica7,1361.0022.003.000.482.00
Block Modelotype27*silica37,9501.005.003.000.160.00-25.00%
Compositeotype27*silica1,7011.0028.004.000.502.00
Block Modelotype28silica2543.004.004.000.050.00-33.33%
Compositeotype28silica6401.0020.006.000.473.00
*Ore Domains
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    108



Figure 11-8:    Whisker Plots for smgfe Composites and Blocks Otype2 Domains
Figure 11-9:    Histogram for smgfe Composites and Blocks Otype2 Domains
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    109



Figure 11-10:    Histogram smgfe Composites and Blocks Otype2 Domains
While the industry-standard validation steps are not typically conducted by HibTac personnel, SLR assigned the block grades to the composite file in order to construct scatter plots of block grades versus composite grades for the HibTac base model. Figure 11-11 through Figure 11-13 show scatter plots for magnetite (smgfe), wtrec, and silica, which illustrate that the composite grades and the associated block grades compare reasonably well. As the model process has remained constant through the years, and as HibTac continues to make its production targets, it is reasonable to assume that results would be similar for subsequent Mineral Resource estimations.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    110



Figure 11-11:    Scatter Plot smgfe Grade Composites versus Blocks Otype2 (5, 6, and 7) Domains
Figure 11-12:    Scatter Plot wtrec Grade Composites versus Blocks Otype2 (5, 6, and 7) Domains
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    111



Figure 11-13:    Scatter Plot Silica Grades Composites versus Blocks Otype2 (5, 6, and 7) Domains
11.11Model Reconciliation
Reconciliation results, comparing actual production versus model-predicted values of crude ore, for wtrec and silica_adj between 2019 and 2020 are presented in Table 11-9.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    112



Table 11-9:    2019 to 2020 Model Reconciliation
Cleveland-Cliffs Inc. – Hibbing Taconite Property
Description201920202019 & 2020
ModeledActualModeledActualModeledActual
Total Tons55,631,44359,275,82347,610,96145,246,116103,242,404104,521,9391.2%
Total Ore1
21,146,96227,311,89616,195,49821,467,57237,342,46048,779,46823.4%
Total Waste34,484,48131,963,92731,415,46323,778,54465,899,94455,742,471-18.2%
Strip Ratio1.631.171.941.111.761.14
1-7_ore907,7381,649,116641,9171,275,0811,549,6562,924,19747.0%
1-56_ore15,060,05717,723,60313,607,78116,467,01528,667,83934,190,61816.2%
1-34_ore5,179,1667,939,1771,945,8003,725,4767,124,96611,664,65338.9%
stockpile6,717,9877,525,9756,609,6136,067,94913,327,60013,593,9242.0%
+10_rock2
9,940,53224,437,95210,915,38917,710,59520,855,92142,148,54750.5%
-10_rock17,825,962013,890,461031,716,4230
Wtrec (%)27.2826.5327.2625.7927.2726.2022.72
Smgfe (%)19.4018.7619.6018.0319.4918.4415.01
silica_adj (%)4.724.784.594.904.664.835.50
Wet Pellets3
5,599,8657,300,0004,284,4985,454,0009,884,36312,754,00022.5
Notes:
1.Excluding approximately 750 kLT of In-pit Crushing and Cobbing (IPCC) material from both the modeled estimate on the voids and actual tonnages
2.Actual production numbers didn't differentiate between +10/-10 waste rock, all was accumulated in the +10 row
3.Actual pellets were taken from the 10-K depletion numbers (2019 adjusted to estimate the removal of the IPCC contribution)
Overall, the block model is slightly conservative and matching well to total tons but under-reporting against actual ore production:
Total ore under-predicted by 23.4%.
Waste over-predicted by 18.2%.
11.12Mineral Resource Statement
The Mineral Resource estimate for HibTac was prepared by Cliffs and audited and accepted by SLR using available data from 1938 to 2019.
To ensure that all Mineral Resource statements satisfy the “reasonable prospects for eventual economic extraction” requirement, the Mineral Resource estimate for the HibTac deposit considered factors significant to technical feasibility and potential economic viability. Mineral Resources were defined and constrained within LOM phase units, prepared by Cliffs.
The Mineral Resource estimate as of December 31, 2021, is presented in Table 11-10.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    113



Table 11-10:    Summary of Mineral Resource - December 31, 2021
Cleveland-Cliffs Inc. – Hibbing Taconite Property
 ClassCrude Ore Mineral ResourcesCrude Ore MagFeProcess RecoveryWet PelletsCliffs Attributed Basis
Cliffs Crude Ore Mineral Resources
Cliffs Wet Pellets
(MLT)(%)(%)
(MLT)
(%)(MLT)
(MLT)
Measured10.119.225.4%2.685.38.62.2
Indicated0.618.725.0%0.185.30.50.1
Total Measured + Indicated10.719.225.4%2.785.39.12.3
Notes:
1.Tonnage is reported in long tons equivalent to 2,240 lb.
2.Mineral Resources are reported exclusive of Mineral Reserves and have been rounded to the nearest 100,000.
3.Mineral Resource estimates are based on a cut-off grade formula dependent on a few variables and restricted to material greater than 13% MagFe.
4.Classification of Mineral Resources is in accordance with the S-K 1300 classification system.
5.Bulk density is calculated based on Satmagan magnetic iron and total iron content.
6.Mineral Resources are 85.3% attributable to Cliffs and 14.7% attributable to U.S. Steel.
7.Mineral Resources that are not Mineral Reserves do not have demonstrated economic viability.
8.Numbers may not add due to rounding.
Resource estimates take account of the minimum block size that can be selectively extracted. Mineral Resources are exclusive of Mineral Reserves and are reported at equal to or greater than 13% MagFe cut-off grade. Mining recovery is typically 100%, although the grade tends to be diluted by 1% MagFe due to geological conditions and mining practices.
The SLR QP is of the opinion that with consideration of the recommendations summarized in Sections 1 and 23 of this report, any issues relating to all relevant technical and economic factors likely to influence the prospect of economic extraction can be resolved with further work. HibTac has been in operation for many years, and land and mineral control has been long established. There are no other known legal, social, or other matters that would affect the development of the Mineral Resources.
While the estimate of Mineral Resources is based on the QP's judgment that there are reasonable prospects for eventual economic extraction, no assurance can be given that Mineral Resources will eventually convert to Mineral Reserves.
The QP offers the following conclusions with respect to the HibTac Mineral Resource estimates:
The KEVs in the block models for HibTac compare well with the source data.
The methodology used to prepare the block model is appropriate and consistent with industry standards.
Validations compiled by the QP indicate that the block model reflects the underlying support data appropriately.
The classification at HibTac is acceptable for the disclosure of Mineral Resources.
The QP offers the following recommendations with respect to the HibTac Mineral Resource estimates:
1.Apply a minimum of two holes during the first pass estimation for HibTac in future updates.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    114



2.In future updates, use local drill hole spacing in place of a distance-to-drill hole criterion for block classification.


Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    115



12.0MINERAL RESERVE ESTIMATES
Mineral Reserves in this TRS are derived from the current Mineral Resources. The Mineral Reserves are reported as crude ore and are based on open pit mining from the Mine. Crude ore is the unconcentrated ore as it leaves the mine at its natural in situ moisture content. The Proven and Probable Mineral Reserves are estimated as of December 31, 2021 and summarized in Table 12-1.
Table 12-1:    Summary of HibTac Mineral Reserves – December 31, 2021
Cleveland-Cliffs Inc. – Hibbing Taconite Property
Crude Ore Mineral Reserves
(MLT)
Crude Ore
MagFe
(%)
Process Recovery
(%)
Wet Pellets
(MLT)
Cliffs Attributed Basis (%)Cliffs Crude Ore Mineral Reserves (MLT)Cliffs Wet Pellets (MLT)
Proven100.118.725.425.585.385.421.7
Probable9.1 18.725.62.385.37.82.0
Proven & Probable109.318.725.527.885.393.223.7
Notes:
1.Tonnage is reported in long tons (equivalent to 2,240 lb) and has been rounded to the nearest 100,000.
2.Mineral Reserves are estimated based on a cut-off grade formula dependent on a few variables and restricted to material greater than 13% MagFe.
3.The Mineral Reserve mining stripping ratio (waste units to crude ore units) is at 1.0.
4.Pellets are reported as a wet standard equivalent containing 66% Fe.
5.Tonnage estimate based on December 31, 2021 production depletion from surveyed topography on June 15, 2021.
6.Mineral Reserve tons are as delivered to the primary crusher; pellets are as loaded onto lake freighters in Superior, Wisconsin.
7.Classification of the Mineral Reserves is in accordance with the S-K 1300 classification system.
8.Mineral Reserves are 85.3% attributable to Cliffs and 14.7% attributable to U.S. Steel.
9.Numbers may not add due to rounding.
SLR is not aware of any risk factors associated with, or changes to, any aspects of the modifying factors such as mining, metallurgical, infrastructure, permitting, or other relevant factors that could materially affect the Mineral Reserve estimate.
12.1Conversion Assumptions, Optimization Parameters, and Methods
Using the mine planning block model for HibTac, pit designs are conducted to convert the Mineral Resources to Mineral Reserves.
Iron formation can only be initially considered as “candidate” crude ore if the stratigraphy is one of the following geologic subunits (as detailed in Section 11.0):
Low or Lean Taconite (litho codes 131, 132, and 141)
High Taconite (litho codes 151, 152, 153, 161, and 162)
High Taconite (litho codes 171 and 172)
All other geologic subunits are waste.
Candidate crude ore must then meet the following additional criteria to be considered crude ore blocks:
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    116



Satisfy the metallurgical cut-off grades as described in section 11.7.4. In summary, candidate crude ore with MagFe lower than 15% (13% for 1-3/1-4 ore) is waste and is stockpiled separately.
Be classified as a Measured or Indicated Mineral Resource (Inferred Mineral Resources are considered to be waste).
Not occur within a mining restricted area.
Generate a net block value greater than the cost of the block as if it were mined as waste.
A new mine planning block model for the HibTac pit (htcmodel2019_Q1_R1_lr.bmf) was constructed in July 2021 from the geologic model (htcmodel2019_Q1_R1.bmf). Scripts within Vulcan are executed that add variables for mine planning, flag in-pit stockpile backfills, flag the current topography, re-block the model to represent the selective mining unit (SMU), incorporate crude ore loss and dilution impacts, and reinforce cut-off grades. The resulting block models are evaluated using the Chronos scheduling packages in Vulcan.
A comparison of the actual pellet production to the modeled pellet production (against htcmodel2019_Q1_R1_lr.bmf) for 2019 and 2020 indicates a positive reconciliation. HibTac has been increasing dilution considerably as it nears the end of mine life. This is one of the strategies the site has implemented to extend the mine life, but which is not included in long range planning. This strategy is likely to result in the LOM plan under-predicting pellet production in the long term as confirmed by the 2019 and 2020 results. To incorporate the crude ore loss and mining dilution assumptions into the Mineral Reserve estimate, the mine planning model used an SMU to re-block the model and better reflect mining selectivity. The mine planning model was re-blocked to 100 ft by 100 ft by 20 ft (i.e., half the bench height) to represent the site’s operational practice of top-cutting blasts that include the ore/waste transition.
HibTac has a long history of plant recovery, which is used as part of the pit optimization. The following summarizes the empirical relationship for pellet production based on crude ore tons and DT weight recovery:
Wet Pellet Tons = (Crude Ore Tons x (DT Weight Recovery - Discount) / 100 x Recovery Factor) / (1- %Pellet Moisture)
Where:
Discount = 1.2%;
Pellet Moisture = 2.0%; and
Recovery Factor = 0.995.
From 2014 through 2020, the equation has reconciled within 3% of the production years when comparing calculated wet pellet production to actual wet pellet production. Figure 12-1 shows the 2014 through 2020 variance between calculated and actual fluxed pellet production.

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    117



All Measured and Indicated Mineral Resources within the final designed pit that meet the above criteria are converted into Mineral Reserves.image_94b.jpg
Figure 12-1:    2014–2020 Calculated versus Actual Pellet Production
12.2Previous Mineral Reserve Estimates
Cliffs acquired the Mine during the 2020 purchase of AMUSA’s assets. The SEC-reported Mineral Reserves for the past ten years are listed in Table 12-2. These Mineral Reserves were not prepared under the recently adopted SEC guidelines; however, they followed SEC Guide 7 requirements for public reporting of Mineral Reserves in the United States.
Table 12-2:    Previous Mineral Reserves
Cleveland-Cliffs Inc. – Hibbing Taconite Property
YearCrude OreProduct
Total
Proven & Probable
(MLT)
Grade
(% MagFe)
Process Recovery
(%)
Pellets Wet
(MWLT)
2011(1)
37819.826.299
2012(2)
34919.826.291
2013(3)
28819.026.175
2014(4)
26018.926.168
2015(5)
23118.826.160
2016(6)
23319.526.562
2017(7)
17919.626.447
2018(8)
15019.726.540
2019(9)
12219.726.632
2020(10)
10119.726.927
Source: Cliffs 10-K Filing
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    118



12.3Pit Optimization
HibTac’s Mineral Reserves fully capture all material that is currently identified as mineable. Pit optimizations were not completed.
12.4Mineral Reserve Cut-off Grade
The Mineral Reserve cut-off grade is governed by metallurgical constraints applied in order to produce a saleable product followed by verification through a break-even cut-off grade calculation. The Mineral Reserves are reported at a 15% crude magnetic iron (13% for 1-3/4 ore; BM variable : smgfe), which is the same cut-off criteria used for Mineral Resources described in Section 11.7.4 for a minimum magnetic iron content. In addition to MagFe, limits on the following also apply:
Adjusted Silica (silica_adj) less than 6.5%
Kw_lt (Liberation Index; relative power to achieve target concentrate silica; BM variable: Kwhlt) less than 17%
Ratio (satfe/iron; measure of oxidation) >= 90%
12.5Mine Design
The Mine’s final pit designs incorporate several design variables that include geotechnical parameters (e.g., wall angles and bench configurations), equipment size requirements (e.g., mining height and ramp configuration), and physical mining limits (e.g., property boundaries and existing infrastructure). The following summarizes the design variables and final pit results; more detail is provided in the preceding subsections and in Section 13.0.
The final highwall pit slope is designed at an inter-ramp angle (IRA) of 42.5° for in situ bedrock and 18.4° for surface overburden. The bench design for bedrock consists of double-stacked, 40 ft-high mining benches with a 65° bench face angle (BFA) and a 50 ft catch bench (CB). There are no ramps designed into the final highwall, as the footwall slope is less than 8% for most of the mining areas and can support the development of haulage ramps.
There are multiple physical mining limits that are applied to the mine plan:
The crude ore Mineral Reserve boundary resides within controlled mineral lease areas and also within the existing Permit to Mine;
Mining limits are set at 2,000 ft from the closest buildings in the local communities; and
Mining limits are set at 200 ft from the centerline of local roads and highways.
The LOM final pit designs are shown in Figure 12-2.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    119



Figure 12-2:    Final Pit Plan View
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    120



13.0MINING METHODS
13.1Mining Methods Overview
HibTac is mined using conventional surface mining methods. The Mine requires large 200-plus ton mining trucks, and some areas of the pit require long hauls. The surface operations include:
Clearing and grubbing
Overburden (glacial till) removal
Drilling and blasting (excluding overburden)
Loading and haulage
The Mineral Reserve is based on the ongoing annual average ore production of 21.9 MLT from the Group I, II, III, IV, and V pits, producing an average of 5.6 MLT/y of wet pellets for domestic consumption. The HibTac operations have no current expansion plans and are likely to cease operating once the reserves are depleted by 2026.
Mining and processing operations are scheduled 24 hours per day, and the mine production is scheduled to directly feed the processing operations.
The current LOM plan has mining scheduled for five years and mines the known Mineral Reserve. The average stripping ratio is 1.0 waste units to 1.0 crude ore units (1.0 stripping ratio).
There are 20 mining pits/phases with varying dimensions, with a maximum depth of approximately 600 ft attained in two of the pits/phases.
Primary production for all mine pits includes drilling 16.00 in.-diameter rotary blast holes. Production blast hole depth to 40 ft bench heights is drilled. Burden and spacing varies depending on the material being drilled. The holes are filled with explosive and blasted. A combination of front-end loaders (FEL) and electric shovels load the broken material into 240 ton-payload mining trucks for transport from the pit.
The Mine follows strict crude ore blending requirements to ensure that the Plant receives a uniform head grade. Generally, three groupings of geological subunits are mined at one time to obtain the best blend for the Plant. Operationally, blending is done on a shift-by-shift basis. HibTac mines from three to four ore locations for blending. Crude ore is hauled to the crushing facility and either direct tipped to the primary crusher or stockpiled in an area adjacent to the primary crusher. Haul trucks are alternated to blend delivery from the multiple crude ore loading points. The crude ore stockpiles are used as an additional source for blending and production efficiency.
The major pieces of pit equipment include electric shovels, FELs, haul trucks, drills, bulldozers, and graders. Extensive maintenance facilities are available at the mine site to service mine equipment and the rail fleet.
13.2Pit Geotechnical
13.2.1Summary
The pits at HibTac are generally shallow, with a maximum pit depth and highwall exposure of approximately 600 ft. The final wall slopes are effectively the IRA, as there are no haul ramps in the final
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    121



highwall. Haul ramps are incorporated into the pit design footwall and can safely support traffic of the 240 ton payload mining trucks. Slope parameters used for design are summarized in Table 13-1.
The overburden (glacial till) is excavated in 40 ft-high benches with a design BFA of 22°; benches are separated by 20 ft-wide berms and are set-back at least 20 ft from the top of the rock slope in accordance to Standard 6130.2900 of the Minnesota Administrative Rules for Ferrous Metal Mineral Mining. Benches in the rock slopes are created by double benching two, 40 ft benches to create a final 80 ft bench face. See Figure 13-1.
Table 13-1:    Geotechnical Parameters
Cleveland-Cliffs Inc. – Hibbing Taconite Property
ParameterUnitFinal WallBackfillOverburden
IRADegrees42.523.418.4
BFADegrees65.036.021.8
BHft404040
CB - Primaryft505020
CB - Secondaryft02520
Ramp Width - 2 wayft150150150
Ramp Width - 1 wayft909090
Ramp Gradient (Shortest)%888

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    122



Figure 13-1:    Example of Final Pit Wall Geometry
13.2.2Geotechnical Data
Geotechnical laboratory test data for HibTac is limited with two uniaxial compressive strength (UCS) tests taken for a back analysis of a wedge failure in the Scranton Pit and, more recently, 10 UCS tests, 11 point load tests, and seven Brazilian tensile tests completed for a wall control blasting study by Barr Engineering Co. (Barr) in 2018.
Structural measurements were taken during a field visit for a final pit slope stability study completed by Barr in 2012 (Barr, 2012). The rock mass was observed to be highly fractured; the dominant discontinuities include the shallow-dipping bedding planes dipping between 5° and 15° to the southeast and two to three near-vertical joint sets dipping between 80° and 90°. Further joint orientation data has been collected from Maptek I-Site laser scans, including from the Group IV Kleffman area used for a wall control blasting study completed by Barr in 2018 (Barr, 2018), and from the Group V East, West 1, and West 2 areas, used for a structural geology and rock-fall analysis also completed by Barr in 2019 (Barr, 2019).
13.2.3Material Strength Parameters
Geotechnical input data for the Barr (2012) study was limited, so stability analysis relied upon engineering judgement and approximations from other similar projects. Mohr-Coulomb strength parameters were estimated for the glacial till. The Hoek-Brown strength criterion was used to estimate the strength of the rock mass. Material properties are summarized in Table 13-2. Two sets of strength parameters are provided, one for the blasting practices observed in 2012 with a blast disturbance factor D of 1.0, and the second with a lower D of 0.7, which assumes improvements through the introduction of wall-control blasting such pre-splitting, smooth-wall blasting, or cushion (buffer) blasting.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    123



Table 13-2:    Material Properties Used in Stability Analysis
Cleveland-Cliffs Inc. – Hibbing Taconite Property
ParameterOverburdenDisturbed RockLess Disturbed Rock
Unit Weight, pcf128192.4192.4
Cohesion, psf---
Friction Angle, °32--
Intact Rock Uniaxial Compressive Strength, psf-1,800,0001,800,000
Intact Rock Parameter (mi)-1919
Geological Strength Index (GSI)-4545
Disturbance Factor (D)-1.00.7
Source: Barr, 2012
13.2.4Hydrogeology and Pit Water Management
Dewatering is from sump pumping for within the pits. The final highwall design assumes that the piezometric surface is sufficiently far from the pit wall that it does not dictate slope failures.
13.2.5Stability Assessment
A kinematic assessment for bench-scale failure was conducted by Barr (2012); however, based on the joint orientations, planar and wedge type failures were judged to be limited. Toppling would be associated with slopes where the steeply dipping joints dip into the slope face. Raveling of rock blocks was determined to be the most likely bench-scale failure mechanism, requiring effective excavation and scaling to control rock-fall risk.
Overburden stability was assessed through the Morgenstern-Price method of limit-equilibrium analysis in Geoslope Slope/W software. The factor of safety (FoS) was calculated at 1.57 assuming the groundwater surface was set back from the slope face.
Limit-equilibrium analysis was completed for a proposed rock slope geometry including an 80 ft-high benches, 80° bench face angle and 40 ft berm width, with an IRA of 56°. The resultant FoS of 1.24 is reliant on the application of wall-control blasting techniques, recommendations for which were provided in the Barr (2012) report and later by Barr in 2018, in the Design and Implementation Report for a wall-control blasting study (Barr, 2018).
A structural geology and rock-fall analysis was completed in January 2019 by Barr to gain a better understanding of the Group V area and to determine an appropriate safe bench width design. Rock-fall analysis was undertaken using Rocscience Rocfall 7.0 software. Twelve cases were modeled based on 80 ft bench heights, with benches faces of 75° and 80°, berm widths of 40 ft and 50 ft, and with and without crest loss and talus material along the bench toes. A similar assessment was also made for a 40 ft-high bench. Barr concluded that the batters should be pre-split at 80°, aside from the east wall, which should be battered at 75° due to adverse geological structure. A bench width of 40 ft was proposed, with a 5 ft-high berm placed on the bench to catch rock fall. The resultant IRA would be 56° (Barr, 2019).
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    124



The current slope design used for the rock slopes at HibTac includes an IRA of 42.5°, which is significantly less than the Barr 2012 and 2019 proposed IRAs. The adopted BFA is also less, at 65°, as opposed to 75° to 80° proposed by Barr. SLR, therefore, considers the slope parameters used by HibTac to be appropriate, and the geotechnical risk of overall slope instability and rock-fall to be low.
13.2.6Waste Rock Stockpile Stability
The HibTac waste rock stockpiles were subject to an assessment of stability rating and hazard classification as per a report completed by Golder Associates Inc. (Golder) in April 2019. The report was based on a site visit conducted on July 16, 2018 and involved the inspection and assessment of waste rock stockpiles 2970 and 4082 and overburden stockpiles 5001, 5039, 5014, and 5020. The assessment was completed in accordance with the WSRHC system described in Hawley and Cunning (2017). The system includes the assessment of geographic location, climate and seismicity, foundation conditions, material quality, geometry, mass, stability assessment, construction method, and loading rate. The results indicate the existing stockpiles fall into the low or moderate hazard classification.
Upon completion, surface stockpiles must be graded to an overall slope angle of 2.5H:1V (21.8°), and rock stockpiles must be covered with at least two feet of surface material, in accordance with The Minnesota Administrative Rules, chapter 6130 (MDNR 2008). SLR understands that the stockpiles at HibTac are subject to annual inspections to verify compliance with these standards.
13.3Open Pit Design
The HibTac pit designs combine current site access, mining width requirements, geotechnical recommendations, and hard mining limits as described previously in Sections 12.0 and 13.0.
Intermediate phase designs, or pushbacks, are included in the LOM planning. The main purpose for phased designs is to balance waste stripping and haulage profiles over the LOM and ensure haulage access is maintained while developing the pit.
Intermediate phase designs are largely driven by the effective mining width and access to the Mineral Reserves. The phase designs incorporate the transition from intermediate, non-reclaimed overburden slopes to final reclamation overburden slopes.
Table 13-3 details the final pit design totals as of the June 15, 2021 surveyed topography. Figure 13-2 presents a plan view of the final pit designs.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    125



Table 13-3:    Final Pit Design Totals
Cleveland-Cliffs Inc. – Hibbing Taconite Property
PhaseCrude
Ore
(MLT)
Grade
(% MagFe)
Stripping
(MLT)
Total
Material
(MLT)
Strip
Ratio
Agn_xx13.917.80.94.80.2
Grp1_ph14.017.60.54.50.1
Grp1_ph26.319.01.07.30.2
Grp1_ph321.019.531.652.61.5
Grp3_xx12.316.70.62.80.3
Grp4_xx10.915.90.31.20.3
Grp5n_xx110.516.711.522.01.1
Klef_ph15.016.85.610.51.1
Mace_xx10.216.90.10.30.2
Maho_xx120.719.11.622.20.1
Morris_ph10.115.80.00.10.4
Su_xx13.817.42.56.20.7
Su_xx21.017.10.31.30.3
Su_xx32.217.51.33.60.6
View_fw11.118.80.21.30.2
View_ph116.619.619.536.11.2
Webb_ph22.117.43.25.31.5
Webb_ph319.819.446.466.22.3
Win_xx13.218.02.65.80.8
Webb_ph3r0.00.00.40.4
Total124.618.7130.1254.71.0
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    126



Figure 13-2:    Final Pit Plan View
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    127



13.4Production Schedule
13.4.1Clearing
Before mining operations commence in new undeveloped areas, it is necessary to remove any overburden material. Primary clearing and grubbing equipment includes bulldozers, electric shovels, FELs, and trucks. This equipment has been successfully deployed in historical overburden clearing operations at HibTac.
13.4.2Grade Control
As described in Section 6.0 of this TRS, the geology is well known with two simplified crude ore types identified at the Mine: high-grade ore (1-5/1-6 ore) and lean ore (1-7 ore, 1-3/1-4 ore). HibTac uses blast hole magnetic susceptibility probing to assist in delivering a consistent blend of ore by more sharply delineating ore/waste boundaries.
Generally, three or four crude ore faces are mined at a time. The short-range (weekly) mine plan provides instruction on the amount of material from each mining location that is to be blended at the crusher. Blending is carried out on a shift-by-shift basis, with mid-shift load counts being conducted to monitor compliance to the planned crude ore blend. If the crushing facility is down for maintenance, then the loads are stockpiled on the ground next to the crusher and picked up later and crushed.
13.4.3Production Schedule
As shown in Table 13-4, the basis of the production schedule is to:
Preserve blending of the three crude ore types for as long as possible, particularly to keep 1-3/1-4 ore percentage below 48. SLR notes that since 1-3/1-4 ore is the lowermost mined layer stratigraphically, it is not possible to keep 1-3/1-4 ore contributions below 48% in the last few years of the operation.
Limit total mined tons per annum in the range of 57 MLT to 60 MLT to balance both stripping requirements and mine equipment fleet utilization in addition to the pellet production.
The production schedule is planned yearly throughout the LOM. Crude ore is mined from several HibTac pit phases concurrently throughout the schedule and is blended at the crusher.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    128



Table 13-4:    LOM Mine Production Schedule
Cleveland-Cliffs Inc. – Hibbing Taconite Property
YearCrude
Ore
(MLT)
MagFe
(%)
Stripping
(MLT)
Total
Material
(MLT)
Strip
Ratio
Process
Recovery
(%)
Concentrate SiO2
(%)
Wet
Pellets
(MLT)
202225.718.233.859.51.324.94.76.4
202324.518.332.557.01.325.33.26.2
202424.018.833.457.41.425.83.16.2
202520.319.58.128.40.426.63.75.4
202614.819.33.718.50.324.93.53.6
LOM Schedule109.318.7111.5220.81.025.53.527.8
Historical (2010 to current) and LOM planned production for HibTac is summarized graphically in Figure 13-3.
Figure 13-3:    Historical and LOM Production
SLR notes that there was a downturn in 2020 due to the COVID-19 pandemic.
13.5Overburden and Waste Rock Stockpiles
Overburden and waste rock material is stockpiled in designated stockpile areas.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    129



The HibTac LOM plan has more stockpiling capacity than is required, with two waste rock storage facilities located outside of the Permit to Mine boundary.
The overburden and waste rock stockpile design parameters are detailed in Table 13-5.
Table 13-5:    Stockpile Parameters
Cleveland-Cliffs Inc. – Hibbing Taconite Property
ParameterUnitsWaste RockOverburden
Overall Slope AngleDegrees22.818.4
BFADegrees36.021.8
BHft3040
Berm Widthft3020
Ramp Width - 2 wayft150150
Ramp Width - 1 wayft8080
Ramp Gradient%8-108
Rock and overburden stockpiles were designed, and 3D solids generated, to calculate the volume of the stockpiles. Swell factors of approximately 33% for in situ rock and 12.5% for overburden were used to calculate the annual stockpile volume requirement.
The designed stockpile volume capacity and total LOM stockpiling requirements for the HibTac pits as of June 15, 2021 are summarized in Table 13-6.
Table 13-6:    Pit Stockpile Capacities
Cleveland-Cliffs Inc. – Hibbing Taconite Property
Name
Capacity
(million ft
3)
Waste RockOverburden
Total HibTac Stockpile Capacity2,467371
2021 LOM Stockpile Requirements1,715268
SLR notes there is sufficient overburden and waste rock stockpile capacity included in the LOM plan. The final stockpile layouts including the pit backfills are shown in Figure 13-4. Final reclamation will involve relocating some of the stockpiled overburden as cover for the remainder of the disturbed area.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    130



Figure 13-4:    Final Waste Rock Stockpile Plan View
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    131



13.6Mining Fleet
The primary mine equipment fleet consists of large drills, electric shovels, and off-road dump trucks. In addition to the primary equipment, there are FELs, bulldozers, graders, water trucks, and backhoes for mining support. Additional equipment is on site for non-productive mining fleet tasks. The current fleet is to be maintained with replacement units as the current equipment reaches its maximum operating hours.
Table 13-7 presents the existing fleet (2022) and planned average major fleet requirements estimated to achieve the LOM plan.
Table 13-7:    Major Mining Equipment
Cleveland-Cliffs Inc. – Hibbing Taconite Property
YearDrillsShovelsTrucksLoadersBulldozersGraders
202246291103
20234528193
20244527193
20253318163
20263312162
Size/Payload120,000 lb
38 yd3
240 ton
37 yd3
57 yd3
16 ft
Useful Life (hrs)90,000160,000100,00060,00080,00080,000
Example UnitP&H 120AP&H 2800XPCKomatsu 830ELeTourneau L1850CAT-D11CAT-16M
The primary loading and hauling equipment were selected to provide synergy between mine selectivity of crude ore and the ability to operate in wet and dry conditions. Since crude ore is blended at the primary crusher, the loading units in crude ore do not operate at capacity.
Longer haulage distances will be realized in some of the HibTac pits as they deepen. In general, the major mining equipment requirement scales down with production, towards the end of the LOM plan.
13.7Mine Manpower
Current mining manpower totals 368 and is summarized as follows:
Mine operations – 219
Mine maintenance (excluding mine crusher) – 115
Mine supervision and technical services – 34
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    132



14.0PROCESSING AND RECOVERY METHODS
14.1Processing Methods
14.1.1HibTac Ore Types, Upgrading and Blending
HibTac’s concentrator is designed to process approximately 80,000 LT of magnetite ore per day through a standard iron ore process flowsheet that includes primary crushing, autogenous grinding, and magnetic separation.
Three distinct ore types are processed at HibTac and are referred to as blend component 1-7 (lean ore), blend component 1-5/1-6 (high-grade ore) and blend component 1-3/1-4 (low-grade ore). The major characteristics of each ore type are summarized in Table 14-1. Blend component 1-7 is thick bedded and contains relatively high silica in concentrate and Liberation Index (relative grinding energy for magnetite liberation to target concentrate silica) and is limited to 20 wt% of the ore blend to the concentrator. Blend component 1-5/1-6 contains relatively high MagFe that results in high weight recoveries and is the dominant ore type, contributing greater than 60 wt% to the ore blend sent to the concentrator. Blend component 1-3/1-4 is thin bedded with fine laminations and contains relatively low MagFe that results in low weight recoveries, and it is limited to 48 wt% of the daily ore blend in the current LOM.
Table 14-1:    Characteristics of Ore Types
Cleveland-Cliffs Inc. – Hibbing Taconite Property
Ore CharacteristicsUnit 1-7Unit 1-5/1-6Unit 1-3/1-4
MagFe %17.219.716.2
Wt % Recovery24.928.823.1
SiO2 %
4.54.74.6
kWh/LT14.912.713.4
Max. Blend %158030
Source: HibTac
14.1.2Crushing and Concentrating
The crushing plant consists of two 60 in. x 109 in. Allis Chalmers gyratory crushers that crush run of mine (ROM) ore to minus 10 in., which is then conveyed to the 450,000-ton, crushed-ore stockpile, referred to as the COSP, providing up to five days of crushed ore surge capacity ahead of the concentrator. Crushed ore is reclaimed from the COSP to feed the primary grinding circuit, which consists of nine, 36 ft x 15 ft autogenous grinding (AG) mills, which grind the ore to -3/16 in. The discharge from each AG mill is pumped to five, 48 in.-diameter x 10 ft-long, single-drum rougher magnetic separators, which produce a rougher magnetic concentrate. The non-magnetic fraction from the rougher magnetic separators is fed to the hydroseparators. The rougher magnetic concentrate produced from each grinding line is classified in hydrocyclones to produce an 80% passing 44 micron cyclone overflow product that is then advanced to the finisher magnetic separators, which consist of three triple-drum and two double-drum magnetic separators per grinding line. The magnetic rougher cyclone underflow is cycled back to the AG
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    133



mills for additional grinding. The finisher magnetic product goes directly to the screens. The secondary cyclone underflow is screened at 100 mesh, with the screen undersize advancing to the pellet plant. The screen oversize from all grinding lines is reground in two, 1,250 hp Vertimills operated in closed circuit with cyclones to produce a cyclone overflow of 90% passing 44 microns, which is then subjected to a second stage of finisher magnetic separation. The concentrate from this stage of finisher magnetic separation is advanced to the pellet plant, and the finisher tails go to the main launders and directly to the basin. Final magnetic concentrate averages approximately 66% MagFe and 4.1% SiO2 at a final grind of 80% passing 44 microns. The final pellet contains 4.5% SiO2. A simplified concentrator flowsheet is shown in Figure 14-1.
Figure 14-1:    Concentrator Process Flow Sheet
14.2Pellet Plant
Iron concentrate from the concentrator is thickened and then pumped to agitated storage tanks where it is stored prior to filtration to approximately 9.25% moisture at the pellet plant. The filtration circuit consists of two phases. Phase 1 is equipped with three, 9 ft-diameter x 12 disc Eimco vacuum filters and five, 10 ft-diameter x 12 disc North Star vacuum filters and provides filtered concentrate to two of three
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    134



pelletizing lines. Phase 2 is similar, but is equipped with four North Star disc filters, which provide concentrate to the third pelletizing line. The filtered concentrate is blended with bentonite at approximately 18.5 lb/LT of concentrate and subjected to high-speed mixing prior to advancing to pelletizing to produce standard-compression pellets. When high-compression pellets are required, limestone is added in addition to the bentonite.
Each pelletizing line consists of four 12 ft-diameter x 32 ft-long Sala balling drums, each of which discharge across roll screens, which serve to produce green (unfired) balls that are closely sized at -½ in. + 3/8 in. and contain 9.2% to 9.46% moisture. Roll screen oversize is fed to a shredder and returned to the balling drums along with the roll screen undersize. Green balls with a proper size are then conveyed to a roll feeder in front of each Dravo Traveling Grate indurating furnace. Each of the three indurating furnaces is 13 ft wide by 243 ft long with 243 pallet cars that move through seven different zones supported by 38 windboxes and five process fans. Pellets discharged from the indurating furnaces are the final product and are conveyed to the pellet load-out bins, or to the emergency stockpile. A simplified pellet plant flowsheet is shown in Figure 14-2, and a list of major equipment in the pellet plant is provided in Table 14-3.
Pellet production is monitored by a weightometer on the furnace feed and furnace returns (roll feeder undersize). Actual production is adjusted to actual train shipments once per month. Typical adjustments are in the range of 2,000 LT to 3,000 LT over a total production of 700,000 LT (<0.5% adjustment).
Figure 14-2:    Pellet Plant Process Flow Sheet
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    135



14.3Major Process Plant Equipment
Table 14-2 and Table 14-3 provide a list of major processing equipment at HibTac.
Table 14-2:    Concentrator Major Equipment List
Cleveland-Cliffs Inc. – Hibbing Taconite Property
EquipmentTypeQuantityManufactureSizeHP
Primary CrusherGyratory2Allis-Chlamers60" x 109"
Grinding MillsAutogenous9Metso/
Koppers
36 ft x 15 ft12,000
Regrind MillsVertimill2Metso1,250
Magnetic Separator - RougherSingle Drum45Eriez48" x 10 ft
Magnetic Separator - FinisherTriple Drum27Eriez36" x 10 ft
Magnetic Separator - FinisherDouble Drum18Eriez48" x 10 ft
Tailings Hydroseparator1Westec65 ft
Tailings Hydroseparator1Westec90 ft
Source: Hibbing Taconite
Table 14-3:    Pellet Plant Major Equipment List
Cleveland-Cliffs Inc. – Hibbing Taconite Property
EquipmentTypeQuantityManufactureSize
Vacuum FilterDisc3Eimco9 ft x 12 disc
Vacuum FilterDisc9North Star10 ft x 12 disc
Ball Drums12Sala12 ft x 32 ft
Roll FeederRoll3Dravo/Abe Mathews12.8 ft x 16.5 ft
Roll ScreensRoll12Dravo/Abe Mathews8 ft x 21 ft
Indurating FurnaceTraveling Grate3Dravo13 ft x 243 ft
Load-out Bin (West)Train111,000 ton
Load-out Bin (East)Train18,500 ton
Source: Hibbing Taconite
14.4Process Plant Performance
Production performance for HibTac’s concentrator and pellet plant is summarized in Table 14-4, which presents crude wet ore tons, dry concentrate tons, and wet pellet tons produced for the period 2015 to 2020. The average ore delivered to the primary crusher was 28,083,000 LT/y with an average magnetic iron grade of 19.2% and silica content of 4.2% for the period. Weight recovery to concentrate averaged 26.4% over this period, and wet pellet production averaged 7,400,200 WLT/y. Pellets averaged 66.1% Fe, 4.5% SiO2, and 2.1% moisture for the period.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    136



Ore feed tons to the concentrator are reported as wet tons and are based on the crusher plant weigh scales.
Ore feed to the process is based on weight percent recovery data reported by the mine, which is derived from the mine production model. No concentrator feed grade assays are obtained. For production forecasting, the concentrator reduces the weight percent recovery reported by the mine by the budgeted discount factor to allow for production losses. In 2015, the discount factor was lowered to 1.0 due to reconciliation.
Concentrate production is reported by the pellet plant, and is based on dry pellets produced plus ending inventories of filter cake in stockpile and concentrate slurry minus filter cake and concentrate slurry starting inventories.
Concentrator weight percent recovery is calculated by dividing the concentrate production tons reported by the pellet plant by wet ore tons recorded at the crushing plant. Prior to June 2012, this calculation was based on dry tons of concentrate. Since June 2012, weight percent recovery is based on wet tons of concentrate.
MagFe recovery is tracked in the concentrator and used as an aid for the operators to monitor concentrator daily performance. It is not used for prediction of concentrator production due to inaccuracies associated with the MagFe recovery calculation (based on assumed feed grade to the concentrator and MagFe analyses on the final tailing).
Pellet production is monitored on a daily basis by the furnace feed and furnace return weightometers and is adjusted monthly to actual train shipments of pellets. Monthly adjustments are typically in the range of 2,000 LT to 3,000 LT over a total reported pellet production in the range of 700,000 LT (<0.5% adjustment), indicating very good production accounting.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    137



Table 14-4:    Summary of Process Plant Production
Cleveland-Cliffs Inc. – Hibbing Taconite Property
201520162017201820192020
Total ROM (kLT) Primary Crusher Feed29,846.130,731.129,928.029,492.028,395.020,106.0
%Fe (mag)19.7%19.9%19.3%19.5%18.8%18.2%
% SiO2
4.7%4.9%5.0%5.0%4.8%4.8%
% Moisture0.0%0.0%0.0%0.0%0.0%0.0%
Feed to Processing Plant (kWLT) Rod Mill Feed29,846.130,731.129,928.029,345.028,395.020,106.0
% Mass Yield26.5%26.3%25.9%26.2%26.3%27.3%
Finished Concentrate Production (kWLT)7,909.28,097.07,736.67,693.07,467.85,497.8
% MagFe Recovery97.8%96.8%96.9%97.0%98.0%97.2%
Finished Production (kWLT)7,909.28,097.07,736.67,693.07,467.85,497.8
Pellet7,909.28,097.07,736.67,693.07,467.85,497.8
Tailings/Processing Waste (kWLT)6,6006,4016,0426,1416,2146,199
Tailings Fe% (total)2.2%3.2%3.1%3.0%2.0%2.8%
Product Quality KPIs
Fe% - Final Product66.07%66.06%66.11%66.12%66.06%66.00%
SiO2% - Final Product
4.51%4.52%4.47%4.49%4.50%4.50%
% Moisture - Final Product2.1%2.7%2.1%1.9%2.0%2.0%
Year End Product Inventory (kWLT)22.038.246.516.042.4-
Pellet22.038.246.516.042.4-
Finished Shipments (kWLT)8,078.08,154.87,683.17,571.07,406.05,540.2
Pellet8,078.08,154.87,683.17,571.07,406.05,540.2
Source: HibTac Annual Operating and Financial Reports
14.5Pellet Quality
HibTac’s pellet quality specifications for both standard and high-compression pellets are summarized in Table 14-5. Aside from achieving the iron grade specification, considerable effort is devoted to ensuring that the silica specification of 4.5% SiO2 is consistently achieved.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    138



Table 14-5:    Summary of Specifications for Standard and High Compression Pellets
Cleveland-Cliffs Inc. – Hibbing Taconite Property
CriteriaStandard PelletHigh Compression Pellet
% Dry Iron66.15 +/- 0.2066.00 +/- 0.30
% Dry SiO2
4.50 +/- 0.204.50 +/- 0.20
%+1/4 in. A.T.96.0 +/- 0.897.0 +/- 0.5
%-28 mesh A.T.3.6 +/- 0.82.7 +/- 0.5
Average compression (lb)470 +/- 40560 +/- 20
%-300 lb compression< 15.3< 15.3
% Sizing +1/2 in.<5.0<5.0
% Sizing -1/2 +3/8 in.93.0 +/- 2.093.0 +/- 2.0
Moisture<3%<3%
14.6Consumable Requirements
Table 14-6 and Table 14-7 present the energy and materials that HibTac used in 2018, 2019, and 2020.
Table 14-6:    2018 to 2020 Energy Usage
Cleveland-Cliffs Inc. – Hibbing Taconite Property
201820192020
Energy UsageUnitsUsageUsage/LT PelletsUsageUsage/LT PelletsUsageUsage/LT Pellets
MiningkWh44,567,1275.7141,414,4745.5434,429,0306.31
CrushingkWh12,637,2151.6213,564,8621.8211,558,5842.12
ProcessingkWh825,300,722105.82784,096,898104.92615,974,040112.93
Post ProcessingkWh364,071,97446.68348,619,85746.65267,484,85749.04
MaintenancekWh2,280,1750.292,447,5530.331,896,5560.35
General OperationskWh922,7870.12990,5250.13844,0250.15
TotalkWh1,249,779,999160.241,191,134,169159.38932,187,092170.90
Natural Gas
Natural Gas - ProcessMBtu1,961,0330.252,095,3350.281,787,1820.33
Natural Gas - HeatingMBtu760,4590.10712,2550.10637,3780.12
Fuel
Diesel Fuelgals7,135,6840.917,157,7330.965,317,5690.97
Gasolinegals101,1580.01106,1460.0182,8330.02
Total PelletsWLT7,799,3307,473,3445,454,679
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    139



Table 14-7:    2018 to 2020 Materials Usage
Cleveland-Cliffs Inc. – Hibbing Taconite Property
201820192020
MaterialsUnitsUsageUsage/LT PelletsUsageUsage/LT PelletsUsageUsage/LT Pellets
Bentonitelb149,711,02019.20116,245,20615.5589,616,43616.43
Limestonelb45,724,2605.8651,430,2606.8842,139,6607.73
Total PelletsWLT7,799,3307,473,3445,454,679
14.7Process Manpower
Current processing manpower totals 260 and is summarized as follows:
Plant operations – 166
Plant maintenance – 58
Mine supervision and technical services – 36
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    140



15.0INFRASTRUCTURE
15.1Roads
The Mine and Plant are both located on the mine site. Access to the mine site is by US Highway 169/State Highway 73 to County Highway 5, north 2.3 mi to the HibTac access road, and east two miles to the site. The road access to the site is by paved roads that allow easy access for material and the work force. Figure 15-1 shows the general location and basic infrastructure of the site.
Figure 15-1:    General Location Map
15.2Rail
A railroad system serves the operation and provides both raw materials for the processing of ore and delivery of product to the port facility located in Superior, Wisconsin. The rail system on the mine site consists of an approximately 6.5 mi main line with a loop track that accesses dual taconite pellet storage silos and train load-out facility. The silos each have a capacity of approximately 10,000 LT. The facility and loop track allow loading of unit trains consisting of 184 cars equaling 18,500 LT of pellets per unit train. Unit train loading takes between 2.0 and 2.5 hours. There is an average of two trains per day. The loaded pellet cars are delivered by rail operator BNSF approximately 90 mi south to the Allouez Taconite Facility in Superior, Wisconsin on the western edge of Lake Superior.
A secondary system with two side tracks at the site allows supply trains to provide supplies of bentonite to the Plant. The bentonite is stored in two bentonite silos with a capacity of 3,672 tons each. The site receives 12 to 16 cars of bentonite at 97 tons per car delivered in two deliveries per week. The bentonite is delivered at a rate of approximately 6,250 tons per month (64 cars), which equates to 75,000 tons per year.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    141



15.3Port Facilities
Taconite pellets from HibTac are transported by rail to the port transshipment location known as the Allouez Taconite Facility. The facility consists of two separate train unloading systems, a stockpile area, reclaimer systems, dock storage silos, and ship loading system. The facility is owned, operated, and managed by BNSF and located in Superior, Wisconsin (Duluth area) on the western tip of Lake Superior. The facility provides unloading, stockpiling, blending, and ship loading capabilities. Figure 15-2 shows the general location of the facility and general layout of the systems.
Figure 15-2:    Allouez Taconite Facility
The Allouez Taconite Facility receives an average of three trains per day. HibTac provides two taconite pellet unit trains per day. The unit trains consist of 184 cars, rated at just over 100 LT per car, equaling 18,500 LT per train. The trains report to either the new car dump system or the old car dump system that allow taconite pellets to either be stockpiled or delivered directly to the dock storage silos.
The new car dump, placed in service in 1977, is designed to unload three cars at a time. The system has a capacity of 3.3 MLT/y and covers approximately 90 acres. The cars are indexed using a hydraulic positioner, and doors are opened or closed by automatic door machines. The cars are dumped into holding bins below the cars. There are two feeders that feed into the conveyor system that reports to the stacker/reclaimer. A unit train can be unloaded in approximately four hours on the new car dump.
The old car dump, placed in service in 1966, is designed to unload two 35 ft cars or one 42 ft car at one time. The system has a capacity of 1.5 MLT and covers 60 acres. The system has the same configuration
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    142



as the new system, other than the size and number of cars that can be dumped. It takes approximately six hours to unload a train on the old car dump.
Feeders remove material from the car dump bins onto a conveyor system with over 12 mi of installed belt. The conveyor system for the new dump has a capacity of 6,000 LT per hour (LT/h). The old dump system has a capacity of 2,500 LT/h. Average belt speed is 670 ft per minute making it a 25-minute trip from the new car dump to Dock #5 on the belts that range from 36 in. to 72 in. in width. The pellets can either report directly to Dock #5, which is 3.5 mi from the new car dump, or be stacked out through the stacker reclaimer system.
The stacker/reclaimer system consists of three crawler-mounted bucket wheel reclaimers. Two reclaimers have a capacity of 3,500 LT/h, and the third has a capacity of 2,500 LT/h. The reclaimers stack onto segregated piles for blending or direct the reclaimed taconite onto the belts for transport to the ship loading area.
The ship loading area consists of silos and ship loaders and has a storage capacity of 72,000 LT. There are 36 silos with a capacity of 2,000 LT each. Each silo is 42 ft in diameter and 92 ft high. The silos are loaded by a computerized traveling tripper that is fed from the stacker/reclaimer. The silos are unloaded and ships are loaded at 1,000 LT/h by shuttle conveyors that are 45 ft above water level and are capable of extending 65 ft. Figure 15-3 shows a photograph of the ship loading area and silos.
Figure 15-3:    Allouez Taconite Facility Ship Loader and Silos
The facility typically loads two types of ships. The first is a 1,000 ft-long ship with a typical cargo weight of 55,000 LT. The second is an 800 ft ship with typical cargo weight of 25,000 LT to 30,000 LT. These ships can be loaded in four hours.
Blending plans are created by Hibbing Taconite and given to BNSF to execute in order to meet cargo quality specifications. Blending is performed at the time of cargo loading and is accomplished by either blending different stockpiles together or by blending stockpiled material with fresh production from the train.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    143



15.4Tailings Disposal
The construction of HibTac TSF commenced in 1974, and production began in 1976. From relatively low-grade taconite, the iron ore processing plant, at full capacity, produces approximately 16 MLT/y of tailings that are stored in the TSF situated just north of the Plant (Barr, 2017a). The TSF is located approximately four miles north of the town of Hibbing and three miles east of the town of Chisholm, Minnesota. The HibTac TSF is a paddock dam-type TSF consisting of five cells: West Area 1, 2, and 3 (WA-1, WA-2, and WA-3 with approximately 2,080 acres, 510 acres, and 1,000 acres of impoundment area, respectively), used for tailings deposition; SD-3 Reservoir (approximately 1,340 acres of impoundment area), used as a return water reservoir; and East Area (approximately 830 acres of impoundment area), which is currently not in use, but will be brought into production at a later date.
The tailings basins were permitted as unlined facilities, with the foundation materials and tailings providing a low-permeability material to reduce seepage.
Prior to 2011, total tailings were deposited in the basin via gravity discharge through launders. In 2011, Hibbing Taconite began operating a hydroseparator system, which is used to separate out the coarse-fraction tailings from the total tailings. Approximately 40% of the total tailings are coarse-fraction tailings. The coarse-fraction tailings from the hydroseparator (underflow) are pumped to various locations around the tailings basin using the Main Tailing Pumphouse (MTP). The coarse-fraction tailings are used for hydraulic dam construction, stockpiled for use in mechanical dam construction, or for other mine purposes. All of the interior dams and some of the perimeter dams are planned to be raised by hydraulic methods. If hydraulic dam construction cannot be completed in time to meet dam freeboard requirements, portions of the dams will likely need to be constructed mechanically. The remaining approximately 60% is considered fine-fraction tailings, which are deposited via gravity as slurry and mixed with approximately 120,000 gallons per minute (gpm) of water. Fine-fraction and coarse-fraction tailings are conveyed via gravity at between 25% and 30% solids, respectively (Knight Piésold Limited (KP), 2020). Approximately 120,000 gpm is pumped from the SD-3 Reservoir to the process plant.
The location of the tailings basin is shown on Figure 15-4.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    144



Source: KP, 2020
Figure 15-4:    TSF Location
15.4.1Facility Description
Hibbing Taconite currently maintains approximately 13 mi of perimeter dams that are designed to retain tailings produced during the concentration of iron ore from mining operations and encompasses approximately 6,500 acres. Approximately 4.5 mi of interior dams are used to divide the basin into two tailings disposal cells (West Area and East Area) and a clear-water reservoir (SD-3 Reservoir). The HibTac TSF configuration, which includes the internal and external dams, is shown in Figure 15-5.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    145



Source: Barr, 2021
Figure 15-5:    TSF Configuration
The impoundment of tailings and solution provided is by the following eight, earth-fill, engineered dams along the perimeter, which are shown in Figure 15-5, and described below as follows:
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    146



West Perimeter Dam (WPD) is an approximately 8,200 ft-long dam raised using offset upstream construction, with a current maximum height of approximately 35 ft.
Western Dam South (WDS) is an approximately 12,000 ft-long dam raised using offset upstream construction, with a current maximum dam height of approximately 85 ft.
Western Dam North (WDN) is an approximately 9,000 ft-long dam raised using offset upstream construction, with a current maximum dam height of approximately 75 ft.
SD-1 Dam (SD-1) is approximately 2,300 ft long with a current maximum dam height of approximately 140 ft.
SD-2 Dam (SD-2) is approximately 4,000 ft long with a current maximum dam height of approximately 60 ft.
SD-3 Dam (SD-3) is approximately 12,000 ft long with a current maximum dam height of approximately 75 ft.
SD-4 Dam (SD-4) is approximately 4,800 ft long with a current maximum dam height of approximately 65 ft.
Eastern Dam (ED) is approximately 5,000 ft long with a current maximum dam height of approximately 50 ft.
Active tailings disposal is occurring in the West Area cell, with excess supernatant being allowed to overflow into the SD-3 Reservoir via the WA 3 Reinforced Concrete Spillway. SD-3 is not outfitted with an emergency spillway; however, the dam has been sized to contain tailings, a long-term pond elevation, plus additional dam height to contain the design storm event and wave run-up.
Hibbing Taconite plans to resume tailings deposition in the East Area at a later date, which has been idle since 2011. Historically, the West Area cell was divided into three cells (WA-1, WA-2, and WA-3), which were separated by the WA-1 Interior Dam, WA-2 Interior Dam, and the Interior Dam. The WA-2 Interior Dam is no longer being raised and has been submerged. The WA-1 Interior Dam continues to be raised and is currently used as a haul road. The West Area and East Area are separated by the Interior Dam and the East Area N-S Interior Dam. The WA-3 Interior Dam separates the West Area from the SD-3 Reservoir, and the East Area E-W Interior Dam separates the East Area from the SD-3 Reservoir.
The downstream method was used originally to raise most of the dams before switching to the upstream raise method in the later 1980s. The switch to an upstream raise method caused uplift pressures to develop beneath the upstream sloping clay core for the corners of the perimeter dams. These corner areas became critical for stability. The offset upstream method was then used after uplift pressures were recognized, utilizing staged construction techniques and the use of frozen ground for initial placement of tailings.
15.4.2Design and Construction
SLR understands that Hibbing Taconite has retained Barr as the Engineer of Record (EOR) for the TSF. Typical EOR services include the design (i.e., volumetrics, stability analysis, water balances, hydrology, seepage cut-off design, etc.), construction and construction monitoring, inspections (i.e., annual dam safety inspections) and instrumentation monitoring data review (i.e., regularly scheduled instrumentation monitoring and interpretation), to verify that the tailings basins are being constructed
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    147



and operated by Hibbing Taconite as designed and to meet all applicable regulations, guidelines, and standards.
Barr has designed vertical dam raises for SD-1 and WDN, increasing the current crest elevation of 1,600 ft to 1,630 ft, which will result in an ultimate dam height of approximately 170 ft for SD-1. Barr states that the slope stability FoS and the flood storage requirements for SD-1 and WDN meet the minimum specified requirements (Barr, 2021 and Barr, 2020a). KP (2019) noted that this raise will provide enough tailings storage capacity until 2026 based on an annual production of 21.2 MLT.
15.4.3Audits
The most recent audit was performed by KP in 2019 (KP, 2020). The previous audit was undertaken by SRK in 2015 (SRK, 2015).
SLR understands that an External Peer Review Team (EPRT) was established in 2019 as part of the tailings basin design and operations review. The EPRT is an independent group that is not associated with the day-to-day engineering activities performed by Barr or Hibbing Taconite and works with Barr and Hibbing Taconite to review design, construction, monitoring, and risk management.
15.4.4Inspections
Regular inspection and monitoring are carried out by Barr, which is currently identified as the EOR for the TSFs, and include dam inspections (Barr, 2020b) and visual inspections, as well as a semi-annual report of all the instrumentation readings, including the piezometer levels.
15.4.5Reliance on Data
SLR relies on the statements and conclusions of Barr, Hibbing Taconite, and KP, and provides no conclusions or opinions regarding the stability of the listed dams and impoundments.
15.4.6Recommendations
The HibTac TSF has been operating since 1976, which is currently operating under the requirements of the MDNR. Dam Safety Unit Upstream tailings dam raises, such as those carried out by Hibbing Taconite at the Property, are typically done in low-seismic zones and can be constructed using the coarse-fraction tailings (sand) material. This type of construction approach, however, requires a comprehensive communication and documentation system, careful water management, monitoring of the dam and foundation performance, and the placement of tailings material to ensure that it meets the design requirements. To address these issues, Hibbing Taconite has retained Barr as the EOR, which is an industry standard for tailings management, as the EOR typically verifies that the tailings storage basin cells are being constructed and operated by Hibbing Taconite as designed and to meet all applicable regulations, guidelines, and standards.
Based on a review of the documentation provided, SLR has the following recommendations:
1.The Operations, Maintenance, and Surveillance (OMS) Manual for the TSF should be updated with the EOR in accordance with Mining Association of Canada (MAC) guidelines and other industry-recognized, standard guidance for tailings facilities.
2.The remediation, or resolution, of items of concern noted in TSF audits or inspection reports should be documented, prioritized, tracked, and closed out in a timely manner.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    148



15.5Power
Electrical power is supplied to the site by Minnesota Power. The site load is approximately 167 MW. Power is supplied through a loop system with a 115 kV distribution line that runs along the eastern portion and northern portion of the Property. A 230 kV line runs in a north-south direction along the northern half of the western Property boundary. A 115 kV line provides the southern segment of the loop, with the 115 kV line providing power at three substations. A 500-kV high voltage transmission line runs along the eastern and northern areas of the Property. Figure 15-6 shows the electrical distribution.
HibTac is fed by four separate, 75MW 115 kV lines. The main substation has three, 75 MVA transformers with dual secondaries feeding six, 13.8 kV distribution busses for the connected load.




Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    149




Figure 15-6:    Regional Electrical Power Distribution
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    150



15.6.Natural Gas
Natural gas fuel is provided by Northern Natural Gas (NNG) to the mine site in a supply pipeline that parallels the entrance road on the eastern side of the Property. NNG primarily provides natural gas from Texas and ships it into the area through a high-pressure natural gas line. Natural gas is used at a rate of 310 MMBtu/LT of pellets (five year average). Gas supply is adequate for planned plant needs. Figure 15-7 shows the regional natural gas distribution.
Source: Northern Natural Gas Company
Figure 15-7:    Regional Natural Gas Supply
15.7.Diesel, Gasoline, and Propane
Large diesel equipment is fueled in the field by a contractor. Small diesel and gasoline fueling stations are used for small maintenance equipment and fleet vehicles. Best Oil supplies diesel fuel to all of Cliffs’ Minnesota operations, while Thompson Gas supplies propane. There is sufficient fuel supply in the region to meet the requirements of the operation.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    151



15.8.Water Supply
The water for mining and processing operations is provided by makeup water from the Scranton and Morton pits and recycles water from the TSF. The makeup water is provided at approximately 5,000 gpm by pit pumps. The source of makeup water is adjusted based on the mine plan. The reclaim water from the tailings is used for process water at the Plant. The water supply is more than adequate, especially considering that the Mine is a net positive water situation requiring daily discharge of excess water from pit dewatering. Pit dewatering is a substantial effort on this project, and a number of processes are in place to meet targeted needs driven by the mine plan.
15.9.Communications
The Property has a substantial communication system in place. The infrastructure includes telephones, cell phones, mine/plant radios, mine/plant paging system (the paging system will soon have the capability to broadcast emergency communications over all radio channels simultaneously), and truck dispatch system. Internet (cable and wireless) is also used at the site.
15.10Mine Support Facilities
See below under Plant Support facilities.
15.11Plant Support Facilities
The Plant area includes the following buildings and adjacent sites: administrative building, tire yard, mine service building, truck service center, fire hall, plant water pump house, central shops and warehouse, solid waste transfer station, crusher, drive houses, concentrator, agglomerator, agglomerator thickeners, transfer house, pellet load out and bentonite unloading site, sewage treatment plant, various dry storage buildings, power substations, fuel storage and refueling sites, parking lots, and offices. The analytical laboratory is located in the concentrator. Additional ancillary facilities include explosives storage, a truck scale facility, and a secured guard gate-controlled access to the Plant facilities. The general arrangement of the Plant facilities is illustrated in Figure 15-7.

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    152



Figure 15-7:    Hibbing Taconite Facilities General Arrangement Drawing
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    153



15.11.1Administration Buildings and Offices
The 20,000 ft2 administrative facilities provide offices for general management, safety, environmental, accounting, human resources, and administrative staff. Mine engineering and geology offices are located in the mine services building, and process engineering offices are located in the Plant.
15.11.2Maintenance Shop
The maintenance facilities on-site include a 37,000 ft2 central shop and warehouse, a 2700 ft2 maintenance material building, and a 67,500 ft2 mine services building with four designated bays to service mine trucks and larger production equipment. All facilities are fully stocked with maintenance equipment and tools for maintenance activities, including welding and machining, hydraulic hose supply and repair, electrical testing, tire repair, fuel storage, lubrication and used oil storage, hazardous waste control, and firefighting.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    154



16.0MARKET STUDIES
16.1Markets
Note that while iron ore production is listed in long or gross tons (2,240 lb), steel production is normally listed in short tons (2,000 lb) or otherwise noted.
Cliffs is the largest flat-rolled producer in North America. It is also the largest supplier of iron ore pellets in North America. In 2020, Cliffs acquired two major steelmakers, AMUSA and AK Steel (AK), vertically integrating its legacy iron ore business with steel production and emphasis on the automotive end market.
Cliffs owns or co-owns five active iron ore mines in Minnesota and Michigan. Through the two acquisitions and transformation into a vertically integrated business, the iron ore mines are primarily now a critical source of feedstock for Cliffs’ downstream primary steelmaking operations. Based on its ownership in these mines, Cliffs’ share of annual rated iron ore production capacity is approximately 28.0 million tons, enough to supply its steelmaking operations and not have to rely on outside supply.
In 2021, with underlying strength in demand for steel, the price reached an all time high. It is expected to remain at historically strong levels going forward for the foreseeable future. In 2020, North America consumed 124 million tons of steel, while producing only 101 million tons, which is consistent with the historical trend of North America being a net importer of steel. That trend is expected to continue going forward, as demand is expected to outpace supply in North America. Given the demand, it will likely be necessary for most available steelmaking capacity to be utilized.
On a pro-forma basis, in 2019 Cliffs shipped 16.5 million tons of finished, flat-rolled steel. The next three largest producers were Nucor with 12.7 million tons, U.S. Steel with 10.7 million tons, and Steel Dynamics with 7.7 million tons. In 2019, total US flat-rolled shipments in the United States were approximately 60 million tons, so these four companies make up approximately 80% of shipments.
With respect to its blast furnace (BF) capacity, Cliffs’ ownership and operation of its iron ore mines is a primary competitive advantage against electric arc furnace (EAF) competitors. With its vertically integrated operating model, Cliffs is able to mine its own iron ore at a relatively stable cost and supply its BF and direct reduced iron (DRI) facilities with pellets in order to produce an end steel or hot briquetted iron (HBI) product, respectively. Flat-rolled EAFs rely heavily on bushelling scrap (offcuts from domestic manufacturing operations and excludes scrap from obsolete used items), which is a variable cost. The supply of prime scrap is inelastic, which has caused the price to rise with the increased demand. S&P Global Platts has stated that the open-market demand for scrap could grow by nearly 9 million tons through 2023 as additional EAF capacity comes online with the impact of the scrap market to continue to tighten as all new steel capacity slated to come online is from EAFs (S&P Global Platts, news release, March 18, 2021).
In addition to its traditional steel product lines, Cliffs-produced steel is found in products that are helping in the reduction of the global emissions and modernization of the national infrastructure. For example, Cliffs’ research and development center has been working with automotive manufacturer customers to meet their needs for electric vehicles. Cliffs also offers a variety of carbon and plate products that can be used in windmills, while it is also the sole producer of electrical steel in the United States. Additionally, in Cliffs’ opinion, future demand for steel given its low CO2 emissions positioning will increase relative to other materials such as aluminum or carbon fiber.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    155



Cliffs is uniquely positioned for the present and future due to a diverse portfolio of iron ore, HBI, BFs, and EAFs generating a wide variety of possible strategic options moving forward, especially with iron ore. For instance, Cliffs has the optionality to continue to provide iron ore to its BFs, create more DRI internally, or sell iron ore externally to another BF or DRI facility.
The necessity for virgin iron materials like iron ore in the industry is apparent as EAFs rely on bushelling scrap, or metallics. As of 2020, EAFs accounted for 71% of the market share, a remarkably high percentage among major steelmaking nations. Because scrap cannot be consistently relied upon as feedstock for high-quality steel applications, the industry needs iron ore-based materials that Cliffs provides to continue to make quality steel products.
The US automotive business consumes approximately 17 million tons of steel per year, which is expected to continue around or at this level over time for the foreseeable future. Cliffs iron ore reserves provide a competitive advantage in this industry as well, due to high quality demands, which scrap-based steelmakers have more difficulty supplying. As a result, Cliffs is the largest supplier of steel to the automotive industry in the United States, by a large margin.
Table 16-1 shows the historical pricing for hot rolled coil (HRC) product, Bushelling Scrap feedstock, and IODEX iron ore indexes for the last five years. The table also includes the 2021 pricing for each index, which shows a significant increase that is primarily driven by demand.
Table 16-:1    Five Year Historical Average Pricing
Cleveland-Cliffs Inc. – Hibbing Taconite Property
Indices201720182019202020215 Yr. Avg.
U.S. HRC ($/short ton)6208306035881611850
Busheling ($/gross ton)345390301306562381
IODEX ($/dry metric ton)716993109160100
The economic viability of Cliffs’ iron ore reserves will in many cases be dictated by the pricing fundamentals for the steel it is generated for, as well as scrap and seaborne iron ore itself.
The importance of the steel industry in North America, and specifically the US, is apparent by the actions of the US federal government by implementing and keeping import restrictions in place. Steel is a product that is a necessity to North America. It is a product that people use every day, often without even knowing. It is important for middle-class job generation and the efficiency of the national supply chain. It is also an industry that supports the country’s national security by providing products used for US military forces and national infrastructure. Cliffs expects the US government to continue recognizing the importance of this industry and does not see major declines in the production of steel in North America.
For the foreseeable future, Cliffs expects the prices of all three indexes to remain well above their historical averages, given the increasing scarcity of prime scrap as well as the shift in industry fundamentals both in the US and abroad.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    156



16.2Contracts
16.2.1Pellet Sales
Since Cliffs’ 2020 acquisition of AK and AMUSA’s BF steel making facilities, HibTac pellets are shipped predominantly to Cliffs’ steelmaking facilities in the Midwestern USA. For cash flow projections, Cliffs uses a blended three-year trailing average revenue rate based on the dry standard pellet from all Cliffs’ mines, calculated from the blended wet pellet revenue average of $98/WLT Free on Board (FOB) Mine as shown in Table 16-2. Pellet prices are negotiated with each customer on long-term contracts based on annual changes in benchmark indexes such as those shown in Table 16-1 and other adjustments for grade and shipping distances.
Table 16-2:    Cliffs Consolidated Three-Year Trailing Average Wet Pellet Revenue
Cleveland-Cliffs Inc. – Hibbing Taconite Property
Description2017201820193YTA
Revenue Rate ($/WLT)88.02105.6499.5098.00
Total Pellet Sales (MWLT)18.720.619.419.5
SLR examined annual pricing calculations provided by Cliffs for the period 2017-2019 for external customers, namely AK. The terms appear reasonable. It should be noted that Cliffs has subsequently acquired AK and AMUSA steelmaking facilities in 2020, making the company a vertically integrated, high-value steel enterprise, beginning with the extraction of raw materials through the manufacturing of steel products, including prime scrap, stamping, tooling, and tubing.
For the purposes of this TRS, it is assumed that the internal transfer pellet price for Cliffs’ steel mills going forward is the same as the $98/WLT pellet price when these facilities were owned by AK and AMUSA. Based on macroeconomic trends, SLR is of the opinion that Cliffs pellet prices will remain at least at the current three-year trailing average of $98/WLT or above for the next five years.
16.2.2Operations
Major current suppliers for the HibTac operation include, but are not limited to, the following:
Electrical Grid Power: Minnesota Power
Natural Gas: NNG with scheduling by Constellation Energy
Diesel Fuel: Best Oil
Propane: Thompson Gas
Pellet Rail Transport and Two Harbors Port ship loading: BNSF Railway

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    157



17.0ENVIRONMENTAL STUDIES, PERMITTING, AND PLANS, NEGOTIATIONS, OR AGREEMENTS WITH LOCAL INDIVIDUALS OR GROUPS
The SLR review process for the HibTac operation included updating information that was provided by Cliffs. SLR also conducted a site visit at HibTac on April 28, 2021. SLR has not seen nor reviewed environmental studies, management plans, permits, compliance documentation and reports, or monitoring reports. The original and updated information included in this section is based on the information provided by the Cliffs project team.
17.1Environmental Studies
HibTac has been operating for 45 years, and baseline and other environmental studies have been undertaken as needed to support various approvals and compliance-based reporting over the site’s operating history. Currently, additional environmental studies, including collecting new or updated baseline information, are undertaken on an as-required basis to support new permit applications or to comply with specific permit conditions.
Recent environmental studies included an Investigation Plan, which was approved by the Minnesota Pollution Control Agency (MPCA) for the North Hibbing Voluntary Investigation and Clean-up (VIC) site.
17.2Environmental Requirements
Hibbing Taconite maintains an environmental management system (EMS) that is registered to the international ISO 14001:2015 standard. The ISO standard requires components of leadership commitment, planning, internal and external communication, operations, performance evaluation, and management review. Hibbing Taconite’s continued registration to the ISO standard is evaluated annually through internal auditors and every other year through external auditors.
Cliffs maintains a regulatory matrix as part of its EMS, as well as a regulatory tracker. Hibbing Taconite conducts internal auditing of its compliance system on a regular basis, and Cliffs corporate conducts a formal compliance audit on a routine basis.
Impacts to surrounding communities (noise, vibration, etc.) are considered by the EMS, and views of interested parties are part of the ranking process when ranking environmental aspects.
17.2.1Site Monitoring
HibTac operates through permission granted by multiple permits, which are summarized in Table 17-1. The permits contain requirements for site monitoring including air, water, waste, and land aspects of the HibTac operation. The permit-required data are maintained by the facility, and exceptions to the monitoring obligations, if they occur, are reported to the permitting authority as defined in the individual permit. Monitoring is conducted in compliance with permit requirements, and management plans are developed as needed to outline protocols and mitigation strategies for specific components or activities. Monitoring and management programs currently undertaken in compliance with Hibbing Taconite’s existing permits include:
Air Quality: Management plans including fugitive dust control plans, operation and maintenance plans, and startup, shutdown, and malfunction plans; monitoring of fugitive sources and stacks,
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    158



visible dust emission monitoring at the tailings facility; and greenhouse gas (GHG) emissions monitoring and reporting.
Noise and Vibration: Blast management plans including vibration monitoring.
Surface Water: Routine water quality sampling in receiving waters; quantity of water takings and discharges.
Groundwater: Routine water quantity of water takings.
Wetlands: Monitoring of nearby wetlands where the potential for an impact has been identified, including potential indirect impacts, where appropriate.
Wildlife: Monitoring of endangered species in accordance with specific permit conditions.
There are no specific management plans related to social aspects in place.
With regard to compliance, there are currently no outstanding enforcement actions at the facility.
The State and Federal government conduct regional ecologic monitoring in the vicinity of the facility operations. Two recent examples of such monitoring include:
EPA conducted its residual risk and technology review (RTR) of the Taconite NESHAP (40 CFR 63). EPA’s final rule on July 28, 2020 documents that risks from the taconite iron ore processing source category are acceptable, and the current standards provide a margin of safety to protect public health and prevent an adverse environmental effect.
The State of Minnesota conducts regional watershed monitoring to assess the overall health of waterbodies throughout the state including water quality and macroinvertebrate and fish population diversity and health. The State may develop watershed management tools for water bodies of concern such as Total Maximum Daily Load (TMDL) plans. HibTac is not currently subject to any TMDL-based load restrictions.
17.2.2Water
HibTac presently maintains National Pollution Discharge Elimination System (NPDES)/State Disposal System (SDS) permits for the mining area, NPDES/SDS Permit No. MN0001465, and plant site and tailings basin area, NPDES/SDS Permit No. MN004976. Monitoring is conducted at multiple discharge outfalls and surface water monitoring locations. Reporting for the NPDES/SDS permits includes monthly and annual stormwater reporting and annual chemical dust suppression reporting.
HibTac maintains five water appropriations permits through the water appropriations program that facilitate surface and groundwater use with adequate capacity for the mine and plant sites. Monitoring of the amount of water appropriated or used is conducted and reported monthly.
17.2.3Hazardous Materials, Hazardous Waste, and Solid Waste Management
HibTac typically generates small quantities of hazardous waste and is a small quantity generator per Minnesota hazardous waste rules and generation quantity and according to the federal Resource Conservation and Recovery Act (RCRA). Hazardous waste management is authorized by permits from the applicable regulatory authorities. See Table 17-1 for a full list of permits. HibTac generates other waste materials typical of any large industrial site and manages those wastes offsite through approved vendors.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    159



17.2.4Tailings Disposal, Mine Overburden, and Waste Rock Stockpiles
Requirements for tailings disposal are discussed in Section 15.4 of this TRS. This section is only related to the permitting and compliance. Tailings disposal is authorized by permits from the applicable regulatory authorities. See Table 17-1 for a full list of permits.
The tailings basin comprises five areas constructed over the mine life to date covering approximately 6,400 acres. The basin stores approximately 11,800 acre-feet per year of bulk solids while recycling approximately 125,000 gpm of water. The perimeter of the tailings basin is approximately 13 mi in length. A discussion of the tailings system is provided in more detail in Section 15.4.
Because iron ore geochemistry is different from other metallic mineral deposits, acid rock drainage is not a concern with the iron ore bodies and associated tailings in Minnesota. Moreover, EPA itself describes the iron ore mining and beneficiation process as generating wastes that are “earthen in character.” Chemical constituents from iron ore mining include iron oxide, silica, crystalline silica, calcium oxide, and magnesium oxide—none of which are Comprehensive Environmental Response, Compensation, and Liability Act (CERCLA) hazardous substances. The acid-neutralizing potential of carbonates in iron ore offsets any residual acid rock drainage risks, leading to pit water that naturally stabilizes at a pH of 7.5 to 8.5. Generally, water chemistry has not appeared to be an issue; however, some seeps developed along a portion of the Western Dam North that have distinct coloration, which may be indicative of geochemical/biological activity. The water from these seeps and additional relief wells is pumped back into the tailings basin.
Annual inspections and review of dam performance identified that minimum factors of safety, related to stability and seepage, have been met. Recommendations for corrective actions were made and are currently being implemented.
Requirements for the disposal of mine overburden and non-mineralized or lean waste rock are discussed in section 13.5 of this TRS. Stockpiling of these materials is authorized by permits from the applicable regulatory authorities. See Table 17-1 for a full list of permits.
17.3Operating Permits and Status
HibTac operates through permission granted by multiple permits, which are summarized in Table 17-1.
While permitting always involves varying degrees of risk due to external factors, Hibbing Taconite has indicated that it has a demonstrated record of obtaining necessary environmental permits without unduly impacting the facility operational plan. HibTac is not aware of any issues that could lead to future operation issues that are not otherwise being actively addressed at this time. The following permit applications are pending with a permitting authority:
MPCA
Mine Area permit: Major modification to NPDES/SDS Permit #MN0001465 to increase the rate of pit dewatering surface discharge.
MDNR
Mine area: Substantial modification to the Permit to Mine to add four areas into the pit area and request a variance to work within the right-of-way of Highway 169.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    160



Basin area: Request for authorization for fill under the Wetland Conservation Act to support buttressing along Western Dam South.
United States Army Corps of Engineers (USACE)
Basin area: Request for authorization for fill under the Clean Water Action Section 404 to support buttressing along Western Dam South.
Table 17-1:    List of Existing Environmental Permits
Cleveland-Cliffs Inc. – Hibbing Taconite Property
Permit NoDescriptionTypeJurisdictionAgencyStatus
MN13700061Air Permit MN13700061AirStateMPCAActive, Administratively Extended
MN0049760NPDES/SDS Plant and Tailing BasinNPDES/SDSStateMPCAActive, Administratively Extended
MN0001465NPDES/SDS Mining AreaNPDES/SDSStateMPCAActive, Administratively Extended
1990-2196Water Appropriations Mahoning PondsWaterStateDNRActive
1970-1081Water Appropriations Process WaterWaterStateDNRActive, Amendment in progress
2000-2041Water Appropriations GroundwaterWaterStateDNRActive
2002-2059Water Appropriations StevensonWaterStateDNRActive
1968-1558Water Appropriations Pit DewateringWaterStateDNRActive, Amendment in progress
2008-02566-DWW404 Wetland PermitWetlandFederalACOEActive
2014-00396-DWW404 Wetland PermitWetlandFederalACOEActive
2015-03435-DWW404 Wetland PermitWetlandFederalACOEActive
2019-02609-RQM404 Wetland PermitWetlandFederalACOEActive
NAMDNR Permit to Mine – Original PermitLandStateMNDNRActive
Dam Safety Permit 2015-2549MDNR Dam Safety PermitDamStateMNDNRActive
MND091728683Hazardous Materials Certificate of RegistrationWasteStateMPCAActive
WTSF-103Waste Tire Facility PermitWasteStateMPCAActive
MN1088-100-69Radiation LicenseRadiationStateMDHActive
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    161



Regulatory issues that could have a bearing on Hibbing Taconite’s current plans to address any issues related to environmental compliance and permitting are actively monitored and disclosed in Cliffs’ 10-K; Part I Environment, which has discussion relevant to:
Minnesota’s Sulfate Wild Rice Water Quality Standard
Evolving water quality standards for conductivity; Definition of “Waters of the United States” Under the Clean Water Act
Mercury TMDL and Minnesota Taconite Mercury Reduction Strategy
Climate Change and GHG Regulation
Regional Haze FIP Rule
Conductivity
Regulation of Discharges to Groundwater
17.4Mine Closure Requirements
HibTac has approximately five years of remaining mine life and is not required to submit a deactivation plan to the MDNR until at least two years prior to deactivation in accordance with Minnesota Administrative Rule 6130.4100. The post-mining landscape is required to be stable, non-polluting, minimize the need for fencing, be compatible with adjacent land uses and projected land use trends, and be maintenance free to the extent possible. This rule sets time limitations for removing structures or providing provisions for continued use.
Cliffs is also a partner and financial contributor to the Laurentian Vision Partnership, a regional non-profit coalition of industry, state, and community stakeholders that promotes the development of productive post-mining landscapes on the Mesabi Iron Range.
HibTac prepared an asset retirement obligation (ARO) cost for the sites of approximately US$143 million that covers: monitoring and maintenance; reclamation and vegetation; remediation; structure removal; watershed restoration; and long-term water management at the tailings basin, namely post-closure seepage control.
17.4.1Concurrent Reclamation
HibTac has approximately five years of remaining mine life. Concurrent reclamation activities are underway with good results to date. These activities include seeding as well as natural colonization. Reclamation success is overseen by the MDNR, which expects to see 95% cover after 10 years.
17.5Social and Community
Cliffs has been investing in the region for over a century, including direct employment and contributions to state, local, and taconite taxes. Taconite taxes contribute to an existing government-administered property tax credit program for people living in the Mesabi Iron Range mining area funded through mining production taxes. SLR is not aware of any formal commitments to local procurement and hiring; however, Cliffs has indicated that it has long-standing relationships with local vendors and also purchases through local and regional services and supplies.
With respect to community agreements, HibTac is located in close proximity to the towns of Hibbing and Chisholm, Minnesota. Cliffs employs a public relations expert who is located in Forbes, Minnesota, only
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    162



30 mi away from HibTac, with the goal of responding to residents’ complaints in a systematic manner. Hibbing Taconite has an ongoing lease agreement with the City of Hibbing’s Public Utilities Department that provides access to Hibbing Taconite-owned property where the city operates a well. In 2017, Hibbing Taconite executed a land swap agreement with the City of Hibbing that was part of a plan to relocate the community’s mine overlook and educational center so mining activities could commence at the former location (which was located on the HibTac Property) without significantly impacting the community.
Cliffs’ employees make contributions to local United Way chapters through donations that are supported with a matching contribution from the company. Employees also serve as board members and volunteers for the United Way. Another initiative includes agreements with local municipalities or organizations to make Cliffs-owned and leased land that is not utilized for mining available for local community use including trails used for snowmobiling, biking, and ATV use. Cliffs’ goal is to work collaboratively with stakeholders to support activities that are of benefit to the communities in which the company operates.
SLR is not able to verify the adequacy of management of social issues and what the general issues raised are, but understands that Cliffs has a positive relationship with stakeholders and that in the event of a complaint, Cliffs works directly with affected community members to develop a mutually acceptable resolution. Public affairs representatives from Cliffs formally engage with the community on an ongoing basis and serve as the face of the company. They sit on boards of community and business organizations at regional and local levels, participate in discussions with government officials, and act as a point of contact within the community. In doing so, they keep stakeholders apprised of critical issues to the operations, understand important topics in the community, and seek to listen to any questions or concerns. Cliffs indicated that this strategy allows it to maintain an ongoing relationship with stakeholders and collaborate with communities to find solutions should any issues arise. Cliffs’ Public/Government Affairs maintains a list of stakeholders for Cliffs’ iron ore mine operations.

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    163



18.0CAPITAL AND OPERATING COSTS
Cliffs’ forecasted capital and operating costs estimates are derived from annual budgets and historical actuals over the long life of the current operation. According to the American Association of Cost Engineers (AACE) International, these estimates would be classified as Class 1 with an accuracy range of -3% to -10% to +3% to +15%.
18.1Capital Costs
Table 18-1 shows the sustaining capital cost forecast for the five-year period from 2022 to 2026, which totals $27.0 million, or $0.97/WLT pellet. These costs include but are not limited to:
$21.2 million in mobile equipment additions and replacements
$2.2 million in environmental upgrades
$3.7 million in infrastructure and fixed equipment improvements
Table 18-1:    LOM Capital Costs
Cleveland-Cliffs Inc. – Hibbing Taconite Property
TypeValuesTotal20222023202420252026
Sustaining$ millions27.015.47.92.41.30.1
Concurrent Closure$ millions29.418.810.7
Total$ millions56.534.218.62.41.30.1
A final closure reclamation cost of $143 million is estimated, with $48 million spent annually starting in the last year of production in 2026 and the two subsequent years. There is an additional $29 million in concurrent closure during years 2022 to 2023 associated with Hibbing Taconite’s decision to move to a more conservative method of TSF design, with the addition of downstream fill to strengthen the dam cross-section.
18.2Operating Costs
Operating costs for the LOM are based on the 2022 plan. For this period, costs are based on a full run rate of standard pellet production consistent with what is expected for the LOM. After that point in time, however, there are no items identified that should significantly impact operating costs either positively or negatively for the evaluation period. Minor year-to-year variations should be expected based upon maintenance outages and production schedules. Forecasted 2022 and average operating costs over the remaining five years of mine life are shown below in Table 18-2.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    164



Table 18-2:    LOM Operating Costs
Cleveland-Cliffs Inc. – Hibbing Taconite Property
Parameter2022
($/WLT Pellet)
LOM
($/WLT Pellet)
Mining22.2219.87
Processing35.3934.57
Site Administration2.302.30
Pellet Transportation and Storage10.3510.35
General/Other Costs8.258.20
Operating Cash Cost ($/WLT Pellet)78.5275.29
Processing costs consist of hauling ore from the Mine to the Plant, as well as typical crushing, grinding, concentrating, pelletizing, and tailings basin disposal. Pellet Transportation and Storage costs include rail transport of pellets to Superior, Wisconsin port and ship loading. General/Other costs include production tax and royalty costs, insurance, and other minor costs.
The operation employs a total of 733 salaried and hourly employees as of Q4 2021 consisting of 132 salaried and 601 hourly employees; the majority of the hourly employees are United Steelworkers production and maintenance bargaining unit members.
Table 18-3 summarizes the current workforce levels by department for the Property.
Table 18-3:    Workforce Summary
Cleveland-Cliffs Inc. – Hibbing Taconite Property
CategorySalaryHourlyTotal
Mine34334368
Plant36224260
Asset Management304373
General Staff Organization32032
Total132601733
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    165



19.0ECONOMIC ANALYSIS
19.1Economic Criteria
The economic analysis detailed in this section was completed after the mine plan was finalized. The assumptions used in the analysis are current for the time the analysis was completed (Q3 2021), which may be different from the economic assumptions defined in Sections 11 and 12 when calculating the economic pit. For this period, costs are based on a full run rate of pellet production consistent with what is expected for the LOM.
An un-escalated, technical-financial model was prepared on an after-tax discounted cash flow (DCF) basis, the results of which are presented in this section. Key criteria used in the analysis are discussed in detail throughout this TRS. General assumptions used are summarized in Table 19-1.
Cliffs uses a 10% discount rate for DCF analysis incorporating quarterly cost of capital estimates based on Bloomberg data. SLR is of the opinion that a 10% discount/hurdle rate for after-tax cash flow discounting of large iron ore and/or base metal operations is reasonable and appropriate.
Table 19-1:    Technical-Economic Assumptions
Cleveland-Cliffs Inc. – Hibbing Taconite Property
DescriptionValue
Start DateDecember 31, 2021
Mine LifeFive years
Three-Year Trailing Average Revenue$98/WLT Pellet
Operating Costs$75.29/WLT Pellet
Sustaining Capital$27 million
Discount Rate10.0%
Discounting BasisEnd of Period
Inflation0%
Federal Income Tax20%
State Income TaxNone – Sales made out of state
The operating cost of $75.29/WLT pellet include royalties and State of Minnesota production taxes.
The production and cost information developed for the Property are detailed in this section. Table 19-2 is a summary of the estimated mine production over the remaining five year mine life. Note that the mining rate values indicate average full production rates and do not include the much lower rates in the last two years of mine life.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    166



Table 19-2:    LOM Production Summary
Cleveland-Cliffs Inc. – Hibbing Taconite Property
DescriptionUnitsValue
OreMLT109.3
Total MaterialMLT220.8
Grade% MagFe18.7
Annual Mining RateMLT/y58
Table 19-3 is a summary of the estimated plant production over the remaining five year mine life. Note that the processing and pellet production rate values indicate average full production rates and do not include the much lower rates in the last two years of mine life.
Table 19-3:    LOM Plant Production Summary
Cleveland-Cliffs Inc. – Hibbing Taconite Property
DescriptionUnitsValue
ROM Material MilledMLT109.3
Annual Processing RateMLT/y24.7
Process Recovery%25.5
Total PelletMWLT27.8
Annual Pellet Production RateMWLT/y6.3
19.2Cash Flow Analysis
The indicative economic analysis results, presented in Table 19-4, indicate an after-tax NPV, using a 10% discount rate, of $269 million at an average blended wet pellet price of $98/WLT. The after-tax IRR is not applicable as the Plant has been in operation for a number of years. Capital identified in the economics is for sustaining operations and TSF buttressing.
Project economic results and estimated cash costs are summarized in Table 19-4 showing annual estimates of mine production and pellet production with associated cash flow.
The economic analysis was performed using the estimates presented in this TRS and confirms that the outcome is a positive cash flow that supports the statement of Mineral Reserves.











Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    167



Table 19-4:    After-Tax Cash Flow Summary
Cleveland-Cliffs Inc. – Hibbing Taconite Property
Mine Life1234567
Calendar YearsTotal2022202320242025202620272028
Reserve Base
Hibbing Taconite Mining Ore Pellet Reserve Tons (millions)27.821.415.29.03.6(0.0)
Tonnage Data:
Hibbing Taconite Mining Total Tons Moved (millions)220.857.357.057.431.217.9--
Hibbing Taconite Mining Crude Ore Tons Mined (millions)109.325.624.524.020.314.9--

Hibbing Taconite Mining Pellet Production Tons (millions)27.86.46.26.25.43.6

Inputs:
Hibbing Taconite Mining Pellet Revenue Rate ($/ton)989898989898--

Income Statement:
Hibbing Taconite Mining Gross Revenue ($ in millions)2,726627608609529353--

Mining5531421421427849--
Processing961227214211181129--
Site Administration64151414128--
Pellet Transportation and Storage2886664645637--
General / Other Costs2285351514430--
Hibbing Taconite Mining Operating Cash Cost ($ in millions)2,094503485483371253--
Operating Cash Costs ($/LT Pellet)75.2978.5278.2777.7368.6370.20--

Hibbing Taconite Mining Operating Income (excl. Depreciation & Amortization)632125122126159100--

Federal Income Taxes ($ in millions)(126)(25)(24)(25)(32)(20)--
Depreciation Tax Savings ($ in millions)1333331--
Accretion Tax Savings ($ in millions)712222--

Hibbing Taconite Mining Income after Taxes ($ in millions)52610410310513183--
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    168



Mine Life1234567
Calendar YearsTotal2022202320242025202620272028
Other Cash Inflows & Outflows ($ in millions):
Sustaining Capital Investments(27)(15)(8)(2)(1)(0)--
Productive Capital Investments--------
Mine Closure Costs(172)(19)(11)--(48)(48)(48)

Hibbing Taconite Mining Cash Flow ($ in millions)327708410313035(48)(48)

Hibbing Taconite Mining Discounted Cash Flow ($ in millions)2696369778922(27)(24)
19.3Sensitivity Analysis
Project risks can be identified in both economic and non-economic terms. Key economic risks were examined by running cash flow sensitivities. The operation is nominally most sensitive to market prices (revenues) followed by operating cost as demonstrated in Table 19-5. For each dollar movement in sales price and operating cost, respectively, the after-tax NPV changes by approximately $18 million.
SLR notes that recovery and head grade sensitivity do not vary much in iron ore deposits compared to metal price sensitivity. In addition, sustaining capital expenditures amount to less than 2% of LOM operating costs and, therefore, do not have much impact on the viability of operating mines.
Table 19-5:    After-tax NPV at 10.0% Sensitivity Analysis
Cleveland-Cliffs Inc. – Hibbing Taconite Property
Operating Costs
($/WLT Pellet)
908580757065
Sales Price ($/WLT Pellet)
83($256)($168)($81)$7$94$182
88($168)($81)$7$94$182$269
93($81)$7$94$182$269$357
98$7$94$182$269$357$444
103$94$182$269$357$444$532
108$182$269$357$444$532$619
113$269$357$444$532$619$707
118$357$444$532$619$707$794
123$444$532$619$707$794$882


Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    169



20.0ADJACENT PROPERTIES
There are several iron mines along the Iron Range in Minnesota. The Mineral Resources and Mineral Reserves stated in this TRS are contained entirely within the Hibbing Taconite’s mineral leases and information from other operations was not used in this TRS.

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    170



21.0OTHER RELEVANT DATA AND INFORMATION
No additional information or explanation is necessary to make this TRS understandable and not misleading.

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    171



22.0INTERPRETATION AND CONCLUSIONS
The Property has been a successful producer of iron pellets for over 45 years. The update to the Mineral Resource and Mineral Reserve does not materially change any of the assumptions from previous operations. An economic analysis was performed using the estimates presented in this TRS and confirms that the outcome is a positive cash flow that supports the statement of Mineral Reserves for a remaining five-year mine life.
SLR offers the following conclusions by area.
22.1Geology and Mineral Resources
Above a crude MagFe cut-off grade of 13%, Measured and Indicated Mineral Resources exclusive of Mineral Reserves attributable to Cliffs 85.3% ownership at HibTac are estimated to total 9.1 MLT at an average grade of 19.2% MagFe.
The HibTac deposit is an example of Lake Superior-type BIF deposits. Both the site and corporate technical teams have a strong understanding of the HibTac geology and mineralization, as well as their processing characteristics.
Exploration sampling, preparation, analyses, and security processes for both physical samples and digital data are appropriate for the style of mineralization and are sufficient to support the estimation of Mineral Resources.
QA/QC results for the 2021 verification study are appropriate for the style of mineralization and are sufficient to generate a drill hole assay database that is adequate for Mineral Resource estimation in compliance with international reporting standards. In conjunction with good agreement between planned and actual product produced over more than 45 years, it is SLR’s opinion that procedures meet minimum S-K 1300 guidelines.
The KEV in the block models for HibTac compare well with the source data.
The methodology used to prepare the block model is appropriate and consistent with industry standards.
The block model represents an acceptable degree of smoothing at the block scale for prediction of quality variables at HibTac. Visually, blocks and composites in cross-section and plan view compare well.
22.2Mining and Mineral Reserves
The HibTac JV has been in production since 1976 and specifically under 100% Cliffs operating management of the JV since 2020. Cliffs conducts its own Mineral Reserve estimations.
Total Proven and Probable Mineral Reserves are approximately 109 MLT of crude ore at an average grade of 18.7% MagFe.
Mineral Reserve estimation practices follow industry standards.
The LOM of HibTac is limited to the next five years, with mining operations ceasing in 2026.
The geotechnical design parameters used for pit design are reasonable and supported by previous operations.
The LOM production schedule is reasonable and incorporates large mining areas and open benches.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    172



An appropriate mining equipment fleet, maintenance facilities, and manpower are in place, with various options for additions and replacements estimated, to meet the LOM production schedule requirements.
Sufficient storage capacity for waste stockpiles and tailings has been identified to support the production of the Mineral Reserve.
22.3Mineral Processing
Three ore types are processed at Hibbing and are referred to as blend components 1-7 (lean ore, <20%), 1-5/1-6 (high-grade ore, >60%), and 1-3/1-4 (low-grade ore, <30%).
Routine plant samples are collected and analyzed in the HibTac onsite laboratory for process control, product quality monitoring, and reporting to comply with plant and cargo specifications.
The crushing plant consists of two Allis Chalmers gyratory crushers that crush run of mine (ROM) ore to minus 10 in. The concentrator is based on nine lines of autogenous grinding (AG) mills with two stages (rougher and finisher) of magnetic separation, hydrocyclone classification to close the milling circuits, and hydro-separators for classification of non-magnetic tailings. Finisher magnetic concentrate is screened to obtain final product at 100% passing (P100) 325 mesh. The magnetic concentrate reports to the concentrate thickener, and the non-magnetic fraction reports to the tailings.
Concentrate is filtered using vacuum disc filters to approximately 9.25% moisture and blended with bentonite prior to pelletizing to produce standard compression pellets, and limestone is added to the mix when producing high-compression pellets.
Each pelletizing line consists of four Sala balling drums, which discharge across roll screens, producing green (unfired) balls. Sized green balls are conveyed to three 13 ft-wide by 243 ft-long Dravo Traveling Grate indurating furnaces. Pellets discharged from the indurating furnaces are the final product and are conveyed to the pellet load-out bins or to the emergency stockpile.
Final pellet production is determined by actual train shipments once per month and compared with operating plant measurements. Typical adjustments are in the range of 2,000 LT to 3,000 LT over a total production of 700,000 LT (<0.5% adjustment).
The ore delivered to the primary crusher from 2015 to 2020 averaged 28,083,000 WLT/y with an average crude magnetic iron grade of 17.7% and concentrate silica content of 4.6%. Weight recovery to concentrate averaged 26.4% over this period, and wet pellet production averaged 7,400,200 WLT/y. Pellet grades averaged 66.1% Fe, 4.5% SiO2, and 2.1% moisture for the period.
22.4Infrastructure
The Property is in a historically important, iron-producing region of Northeastern Minnesota. All the infrastructure necessary to mine and process significant commercial quantities of iron ore is in place.
The HibTac TSF has been operating since 1976 and is currently operating under the requirements of the MDNR. The TSF is a paddock dam-type TSF consisting of five cells: West
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    173



Area 1, 2, and 3 (WA-1, WA-2, and WA-3 with approximately 2,080 acres, 510 acres, and 1,000 acres of impoundment area, respectively), which are used for tailings deposition; SD-3 Reservoir (approximately 1,340 acres of impoundment area), which is used as a return water reservoir; and East Area (approximately 830 acres of impoundment area), which is currently not in use but will be brought into production at a later date.
22.5Environment
Hibbing Taconite maintains the requisite state and federal permits and is in compliance with all permits. Environmental liabilities and permitting are further discussed in Section 17 of this TRS.
A mine closure plan is not required by the state of Minnesota until at least two years in advance of deactivation of the mining area. HibTac’s current mine life is projected at five years; therefore, a detailed closure plan has not been prepared. Cliffs performs annual reviews of changes to HibTac’s ARO cost estimate and has calculated ARO legal obligations for closure and reclamation costs.

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    174



23.0RECOMMENDATIONS
23.1Geology and Mineral Resources
1.Continue to develop and expand the QA/QC program to ensure that the program includes defined limits where follow-up is required, and that results are reviewed and documented in a report including conclusions and recommendations regularly and in a timely manner.
a.Quality results documented in this report support an initial standard and duplicate submission rate of 5% each.
b.HibTac should submit a small number of “preparation duplicate” samples to a secondary accredited laboratory to document capability(ies), cost, and time efficiency of alternate provider(s) and confirm that results are comparable to those of the current provider.
23.2Mining and Mineral Reserves
1.Complete additional permitting work at HibTac to finalize decision on conversion of on-strike Mineral Resources to Mineral Reserves and update mine planning accordingly.
23.3Mineral Processing
1.While plant operational performance including concentrate and pellet production and pellet quality continue to be consistent year over year, continue to maintain diligence in process-oriented metallurgical testing and in plant maintenance going forward.
23.4Infrastructure
1.The OMS Manual for the TSF should be updated with the EOR in accordance with MAC guidelines and other industry-recognized, standard guidance for tailings facilities.
2.The remediation, or resolution, of items of concern noted in TSF audits or inspection reports should be documented, prioritized, tracked, and closed out in a timely manner.
23.5Environment
1.While it is acknowledged that a closure plan and other post-mining plans are not required to be prepared until two years prior to anticipated closure, SLR recommends that a closure plan including costing be completed to prepare the operation for eventual closure in approximately five years.

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    175



24.0REFERENCES
AACE International, 2012, Cost Estimate Classification System – As applied in the mining and mineral processing industries, AACE International Recommended Practice No. 47R-11, 17 p.
ArcelorMittal, 2020, Addendum to the 2015 MRMR Technical Report, Hibbing Taconite Company, prepared for ArcelorMittal, unpublished report (December 2020).
ArcelorMittal, 2020a, 2019_EN_Technical_Report_ArcelorMittal_Minorca, August 1, 2020, 150 p.
Barr Engineering Co., 2012, Final Pit Wall Study, Hibbing Taconite Mine. February 2012.
Barr Engineering Co., 2018, Wall control blasting trials at Hibbing Taconite, Design and Implementation Report. September 2018.
Barr Engineering Co., 2019, Structural geology and rockfall analysis, Hibbing Taconite wall control blasting - Group V Area. January 2019.
Barr Engineering Co., 2020a, Design Report for offset upstream dam and downstream buttress construction of Western Dam North; Phase OU-9; Prepared for Hibbing Taconite Company, Managed by ArcelorMittal Hibbing Management LLC. September 2020.
Barr Engineering Co., 2020b, First half of 2020 semi-annual Instrumentation Monitoring Report, prepared for Hibbing Taconite Company. December 2020.
Barr Engineering Co., 2021, DRAFT Design Report for offset upstream dam and downstream buttress construction of SD-1 Dam; Phase OU-9; Prepared for Hibbing Taconite Company, Managed by Cliffs Mining Company. February 2021.
Eames, H.H., 1866, On the metalliferous regions bordering on Lake Superior: St. Paul, Minn., Report of the State Geologist of Minnesota, 23 p.
Eggen, O.G., Reimann, C., and Flem, B., 2019, Reliability of geochemical analyses: deja vu all over again, Science of the Total Environment, 670 (June 20, 2019), pp. 138-148.
Gitzlaff, K., and Orobona, M.J., 2015, Mineralized Material and Mineral Reserve Technical Report - Hibbing Taconite Mine, Minnesota, prepared for Cliffs Natural Resources (December 2015).
Golder Associates Inc., 2019, Draft Report – Waste dump and stockpile stability rating and hazard Classification for Hibbing Taconite mine (Rev. A). April 2019.
Guilbert, J.M., and Park, C.F., 1986, The Geology of Ore Deposits: W. H. Freeman and Company, New York. 985 p.
Hawley, M., and Cunning, J. (eds.), 2017, Guidelines for mine waste dump and stockpile design, CSIRO Publishing, Melbourne, Australia, 370 p.
James H. L., 1954, Sedimentary facies of iron formation, Economic Geology, Volume 49, pp. 235-293.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    176



James H. L., 1966, Chemistry of the iron-rich sedimentary rocks, in: Fleischer M. (ed.), ‘Data of Geochemistry’, 6th edition, Paper 440-W: U.S. Govt. Printing Office, Washington D.C.
Jirsa, M.A., and Morey, G.B., 2003, Contributions to the geology of the Virginia Horn Area, St. Louis County, Minnesota: Minnesota Geological Survey Report of Investigations 53, 135 p.
Knight Piésold, 2019a. ArcelorMittal Hibbing Taconite Mine – Site Visit Report May 17, 18, & 22, 2019. May 29, 2019.
Knight Piésold, 2019b. Hibbing Taconite Company; Tailings Storage Facility Desk Study. May 17, 2019.
Knight Piésold Limited, 2020, Hibbing Taconite Company Tailings Storage Facility Audit, February 2020.
Larson, P., 2021, Drillhole database data verification, prepared for Cliffs Hibbing Taconite Company, September 23, 2021, p. 6.
Lerch Brothers Inc. Standard Procedure LLP-30-02, Total Fe Determination using Dichromate Titration.
Lerch Brothers Inc. Standard Procedure LLP-30-05, HF Silica Determination.
Lerch Brothers Inc. Standard Procedure LLP-60-02, Stage 1 Crushing - Drill Core.
Lerch Brothers Inc. Standard Procedure LLP-60-03, Stage 2 Crushing - Drill Core.
Lerch Brothers Inc. Standard Procedure LLP-60-04, Stage 3 Crushing - Drill Core.
Lerch Brothers Inc. Standard Procedure LLP-60-05, Splitting Samples - Drill Core.
Lerch Brothers Inc. Standard Procedure LLP-60-06, Gyratory Crushing - Drill Core.
Lerch Brothers Inc. Standard Procedure LLP-60-07, Pulverizer - Drill Core.
Lerch Brothers Inc. Standard Procedure LLP-60-08, Weigh and Record - Drill Core.
Lerch Brothers Inc. Standard Procedure LLP-60-09, Liberation Index Testing - Drill Core.
Lerch Brothers Inc. Standard Procedure LLP-60-10, Bucking Sample - Drill Core.
Lerch Brothers Inc. Standard Procedure LLP-60-11, Davis Tube Testing - Drill Core.
Lerch Brothers Inc. Standard Procedure LLP-60-12, Satmagan Testing - Drill Core.
Mahin, R., and Graber, R. (2001). Modeling of -200Mesh Davis Tube data from liberation index data, Internal memorandum to P. VanDelinder and A. Strandlie, March 7, 2001, Cleveland-Cliffs Inc., 7p.
Minnesota Department of Natural Resources, 2008, Administrative Rules Chapter 6130 Ferrous Metallic Mineral Mining, available at https://www.revisor.mn.gov/rules/?id=6130&view=chapter.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    177



Morey, G. B., 1999, High-grade iron ore deposits of the Mesabi Range, Minnesota - Product of a continental-scale Proterozoic ground-water flow system, Economic Geology, Volume 94, pp. 133-142.
NOAA (2021) Hibbing Chisholm Station. Retrieved from NOAA: https://www.ncei.noaa.gov/access/services/data/v1?dataset=normals-monthly-1991-2020&startDate=0001-01-01&endDate=9996-12-31&stations=USW00094931&format=pdf
Ojakangas, R.W., 1994, Sedimentology and provenance of the Early Proterozoic Michigamme Formation and the Goodrich Quartzite, northern Michigan: Regional stratigraphic implications and suggested correlations: U.S. Geological Survey Bulletin 1904, 31 p.
Orobona, M.J.T., 2015, Report on preliminary findings on deviations of recent Liberation Index and Satmagan results from expected norms, Minnesota Research Lab, Hibbing. Cliffs Natural Resources internal memorandum to M. Walto, G. Eliason-Johnson and K. Hemmila, September 18, 2015, 24 p.
Orobona, M.J.T., 2016a, Creation of new QA/QC metrics for the United Taconite crude ore Standard and assay duplicates. Cliffs Natural Resources internal memorandum to D. Halverson and N. Beukema, August 5, 2016, 6 p.
Orobona, M.J.T., 2016b, Screen analysis of Hibbing Standard reference samples crushed and LIS- ground at Hibbing Research Lab (Lerch Brothers) and Midland Research Lab, Nashwauk, MN. Cliffs Natural Resources internal memorandum to M. Walto, May 13, 2016, 13 p.
Orobona, M.J.T., 2016c, Screen analysis of Hibbing Standard reference sample roll-crushed to 100% -20M at Hibbing Research (Lerch Brothers) Lab, Hibbing, MN. Cliffs Natural Resources internal memorandum to M. Walto, June 15, 2016, 4 p.
Orobona, M.J.T., 2016d, Sieve and Liberation Index (LIS) analyses of Standard reference samples prepared to 100% -20 Mesh by different methods at Hibbing Research Lab (Lerch Brothers).Cliffs Natural Resources internal memorandum to D. Halverson, K. Stocco, M. Walto, and M. Wills, July 22, 2016, 8 p.
Orobona, M.J.T., 2017, Starting volumes for replacement LIS Mills used by Lerch Brothers. Cliffs Natural Resources internal memorandum to G. Eliason-Johnson and D. Halverson, June 27, 2017, 5 p.
Orobona, M.J.T., and Eliason-Johnson, G., 2016a, Comparison of Hibbing Standard reference sample Liberation Index results from Cliffs’ Hibbing Research Lab (managed by Lerch Brothers) and Midland Research Lab, Nashwauk, MN. Cliffs Natural Resources internal memorandum to M. Walto, March 4, 2016, 10 p.
Orobona, M.J.T., and Eliason-Johnson, G., 2016b, Screen analysis of Hibbing Standard reference samples crushed and LIS-ground at Hibbing Research Lab (Lerch Brothers) and Midland Research Lab, Nashwauk, MN. Cliffs Natural Resources internal memorandum to M. Walto, May 13, 2016, 13 p.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    178



Orobona, M.J.T., 2021, MagFe at Hibbing. Cleveland-Cliffs internal e-mail to P. Larson, March 25, 2021.
Orobona, M.J.T., 2021a, HTC Preparation Duplicates Analysis_v3, spreadsheet containing data, scatter plots, image_31b.jpg control charts, and Thompson and Howarth plots for all HTCCOS/HTCCOHS Preparation Duplicates data and results collected for the Liberation Index test.
Orobona, M.J.T., 2021b, HTC Preparation Duplicates Analysis_2016 to 2019 campaign, spreadsheet containing data, scatter plots, image_31b.jpg control charts, and Thompson and Howarth plots for all HTCCOS/HTCCOHS Preparation Duplicates data and results collected for the Liberation Index test from the study period of this report.
Orobona, M.J.T., 2021c, HTCCOS Size Analysis_vers2, spreadsheet containing data, x̄ and image_31b.jpg control charts for all HTCCOS Standards screen analysis data, and plots of %-passing curves.
Orobona, M.J.T., 2021d, HTC Standard tracking sheet since 2010_v3, spreadsheet containing data, x̄ and image_31b.jpg control charts for all HTCCOS results and calculated outputs from the LIS test.
Perry, E.C., Jr., Tan, F.C., and Morey G.B., 1973, Geology and stable isotope geochemistry of the Biwabik Iron Formation, Northern Minnesota: Economic Geology, Volume 68, pp. 1110-1125.
S&P Global Platts (https://www.spglobal.com/platts/en/market-insights/latest-news/metals/031821-open-market-scrap-demand-in-us-could-grow-by-almost-9-million-mt-through-2023), Analysis: Open market scrap demand in US could grow by almost 9 million mt through 2023, news release, March 18, 2021.
SRK Consulting. 2015, Hibbing Taconite Report Prepared for ArcelorMittal Mining UK. ARM016 February 2015: SRK Consulting (Australasia) Pty Ltd.
Severson, M.J., Ojakangas, R.W., Larson, P., and Jongewaard, P.K., 2016, Field Trip 2 Geology and Stratigraphy of the Central Mesabi Iron Range, 38 p.
Severson, M.J., Heine, J.J., and Patelke, M.M., 2009, Geologic and stratigraphic controls of the Biwabik Iron Formation and the aggregate potential of the Mesabi Iron Range, Minnesota: NRRI Technical Report Number 2009-09, 173 p.
Simonson, B.M., and Hassler, S.W., 1996, Was the deposition of large Precambrian iron formations linked to major marine transgression? Journal of Geology, Volume 104, pp. 665–676.
Thompson, M., and Howarth, R.J., 1978 (https://www.sciencedirect.com/science/article/pii/S0048969719311738#bbb0320), A new approach to the estimation of analytical precision, Journal of Geochemical Exploration, 9 (1978), pp. 23-30.
US Securities and Exchange Commission, 2018, Regulation S-K, Subpart 229.1300, Item 1300 Disclosure by Registrants Engaged in Mining Operations and Item 601 (b)(96) Technical Report Summary.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    179



White, D.A., 1954, The stratigraphy and structure of the Mesabi Range, Minnesota, Minnesota Geological Survey Bulletin 38, 92 p.

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    180



25.0RELIANCE ON INFORMATION PROVIDED BY THE REGISTRANT
This report has been prepared by SLR for Cliffs. The information, conclusions, opinions, and estimates contained herein are based on:
Information available to SLR at the time of preparation of this report,
Assumptions, conditions, and qualifications as set forth in this report, and
Data, reports, and other information supplied by Cliffs and other third party sources.
For the purpose of this report, SLR has relied on ownership information provided by Cliffs and verified in an email from Gabriel D. Johnson, Cliffs' Senior Manager – Land Administration, dated January 20, 2022. SLR has not researched property title or mineral rights for HibTac, as we consider it reasonable to rely on Cliffs’ legal counsel, who is responsible for maintaining this information.
SLR has relied on Cliffs for guidance on applicable taxes, royalties, and other government levies or interests, applicable to revenue or income from HibTac in the Executive Summary and Section 19. As HibTac has been in operation for over 45 years, Cliffs has considerable experience in this area.
SLR has relied on information provided by Cliffs pertaining to environmental studies, management plans, permits, compliance documentation, and monitoring reports that were verified in an email from Scott A. Gischia, Cliffs' Director – Environmental Compliance, Mining and Pelletizing, dated January 21, 2022.
The Qualified Persons have taken all appropriate steps, in their professional opinion, to ensure that the above information from Cliffs is sound.
Except for the purposes legislated under provincial securities laws, any use of this report by any third party is at that party’s sole risk.
Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    181



26.0DATE AND SIGNATURE PAGE
This report titled “Technical Report Summary on the Hibbing Taconite Property, Minnesota, USA” with an effective date of December 31, 2021 was prepared and signed by:

                        (Signed) SLR International Corporation

Dated at Lakewood, CO
February 7, 2022                    SLR International Corporation

Cleveland-Cliffs Inc. | Hibbing Taconite Property, SLR Project No: 138.02467.00001
Technical Report Summary - February 7, 2022    182
